SkyLink GS-MT Installation Instructions

INSTALLATION INSTRUCTIONS

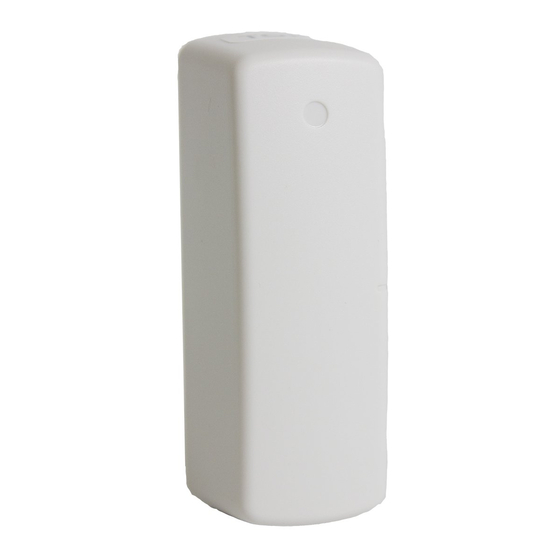

Garage Door Sensor
Model: GS-MT
Congratulations on your purchase of the Skylink Garage Door Sensor,
Model: GS-MT. The sensor will monitor the status of your garage door and works
with the SkylinkNet Internet Hub and the Skylink M-Series Alert/Alarm System.
Section 1 - Insert a battery in the Garage Door Sensor
NOTE: The battery for the Sensor is not included. Please refer to
instruction below to insert an AAA Alkaline Battery.
1. Press both sides and open the cover of the Garage Door Sensor.
2. Insert an AAA Battery in the sensor and close the cover.
Safety Information
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) This device must accept any interference received, including
interferences that may cause undesired operation.
WARNING:
Changes or modi cations to this unit not expressly approved by the party
responsible for compliance could void the user's authority to operate the
equipment.
CE - DECLARATION OF CONFORMITY:
This equipment complies with the requirements relating to electromagnetic
compatibility, EN 301489-1, EN301489-3, EN300220-1, EN300220-2 and
EN60950-1. This equipment conforms to the essential requirement of the
1999/5/EC R&TTE Directive.
Section 2 -
Programming the Sensor with M-Series Main Console
NOTE: You can program in total up to 4 sensors in one zone. If you try to
program the fth sensor, the rst sensor will be removed.
Learn Button
1. Press the learn button on the back 2. Zone 1 is selected. Press the learn
of the M-Series Main Console for button to select the zone you want
3 seconds until the Zone 1 light to program the sensor.
is ashing.
4. Once the sensor is programmed,
3. Activate the Sensor by tilting it
the Main Console will beep once
from vertical to horizontal.
and the corresponding zone led
will be off.
Package Contents
A
Parts Description
A Garage Door Sensor
B Double-sided tape
Section 3 -
Programming the Sensor with SkylinkNet Internet Hub
NOTE: Programming the sensor with the SkylinkNet Internet Hub
must be done from the SkylinkNet App.
Zone LED
1. Go to "More" and tap
on "System Settings".
5. Tap on "Garage
Door Sensor".
B
Quantity
1
1
2. Tap on "Setup 3. Tap on "Add Device". 4. Tap on "Sensors".
Wizard".
7. Tap on "Learn Now"
6. Name your Sensor,
and follow the video to
location and tap
activate the sensor.
"Continue".
