When installing multiple units (MCA1120) nearby

This mode will delete all paired Bluetooth device history when "Power OFF" or "Bluetooth button is pressed".

It will prevent undesired connection with other room devices from automatic re-pairing of the paired device history.

You need to press on the Bluetooth button for pairing to use Bluetooth function.

When Bluetooth connection is not possible, please delete MCA1120's paired device info from your Bluetooth device and re-do the pairing again.

Power ON the main unit (MCA1120) in advance

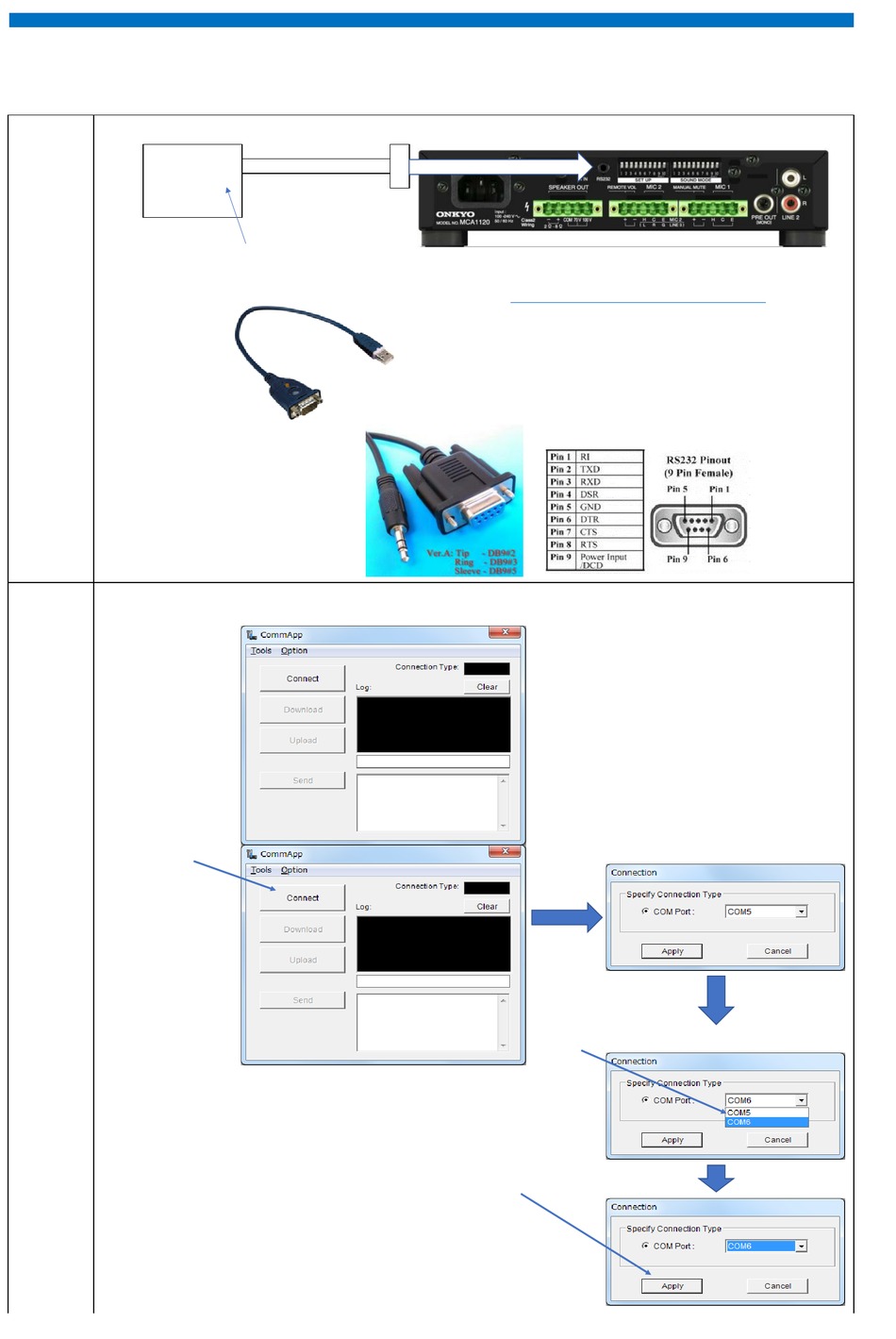

(1)

Connect the USB terminal of the PC and 232C terminal of the main unit (Rear panel)

Preparation

Example of the cable USB-232C converter cable

(2)

Establish

Launch the PC App on your PC

communication

Initial screen

Click "Connect"

USB-232C converter

USB

Driver

Need to install the driver matching with the 232C converter cable

HOTEL MODE

3.5φ 232C cable

Driver

https://www.aten.com/global/en/supportcenter/downloads/

Use driver for UC232A

PLANEX COMMUNICATIONS INC.

URS-03

3.5φ 232C cable

Select the port of the connected USB cable

Click "Apply"

Pop-up window appears

Page 1 You need to press on the Bluetooth button for pairing to use Bluetooth function. When Bluetooth connection is not possible, please delete MCA1120's paired device info from your Bluetooth device and re-do the pairing again. Power ON the main unit (MCA1120) in advance...
Page 2 Pop-up window disappears In case of connection succeed In case of connection error After clicking "OK", Check cable connection or select another COM port etc. and click on "Apply" again Setting Enter the command code (!1BPM01) in the window and click "Send" After clicking "Send", reception command from the unit will be displayed It is OK, if the displayed command is same with the...
Page 3 Connection with other Bluetooth devices are prohibited even if the connection with the preset device is cut off. Power ON the main unit (MCA1120) in advance Connect the USB terminal of the PC and 232C terminal of the main unit (Rear panel)
Page 4 Pop-up window disappears In case of connection succeed In case of connection error After clicking "OK", Check cable connection or select another COM port etc. and click on "Apply" again Setting Enter the command code (!1BPM02) in the window and click "Send" After clicking "Send", reception command from the unit will be displayed It is OK, if the displayed command is same with the...
