Radial Engineering Workhorse SixP19-RA Quick Manual

Rack mount kit for the SixPack 500 Series Power Frame
Part No. R700 9105 00
Thank you for purchasing the Radial SixPack rack mounting kit. This kit is designed to
allow the SixPack 500 series power frame to be mounted in standard 19" equipment
racks. The kit can also be used for in-desk mounting with a choice of either fl ush or
angled control panel.
The kit is manufactured with 14 gauge steel to protect your SixPack and fi nished in a
tough baked enamel. Elongated slots on the chassis fl ange allow the SixPack to be
adjusted to fi t a range of racks and desks.
Kit contents:
QTY Description Used for
2 Metal rack adapter Adapts the SixPack for 19" rack and in-desk mounting
4 #8-32 screws Phillips machine screws used to fi x the metal rack ears
to the SixPack chassis
Rack mounting the SixPack

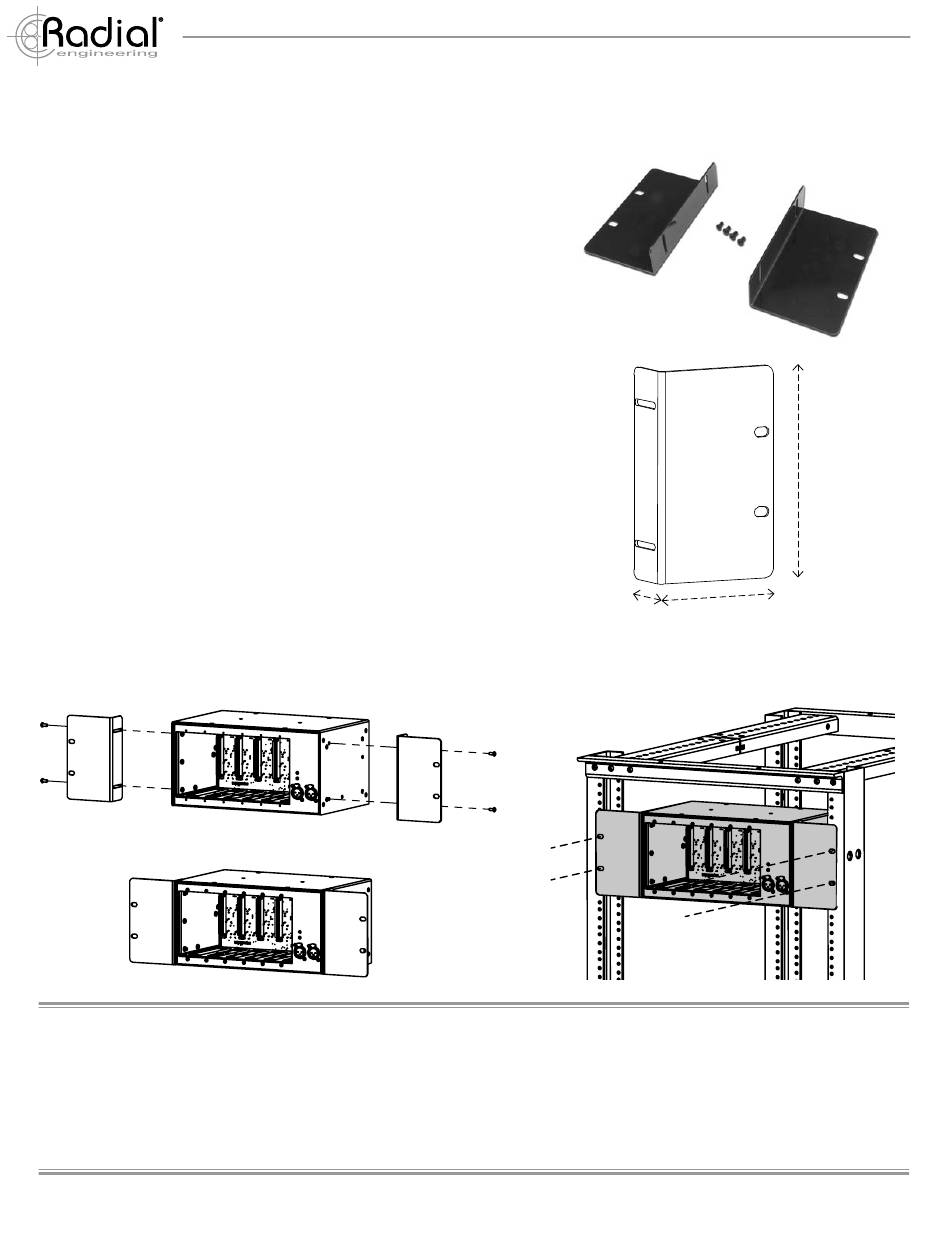

For mounting in standard 19" equipment racks, attach the kit to your
SixPack as shown using the included #8-32 machine screws. You may
also need to remove the four rubber feet on the bottom of the SixPack
depending on the available space in your rack. After the kit is attached,
your SixPack will require 4 rack spaces (4RU).
