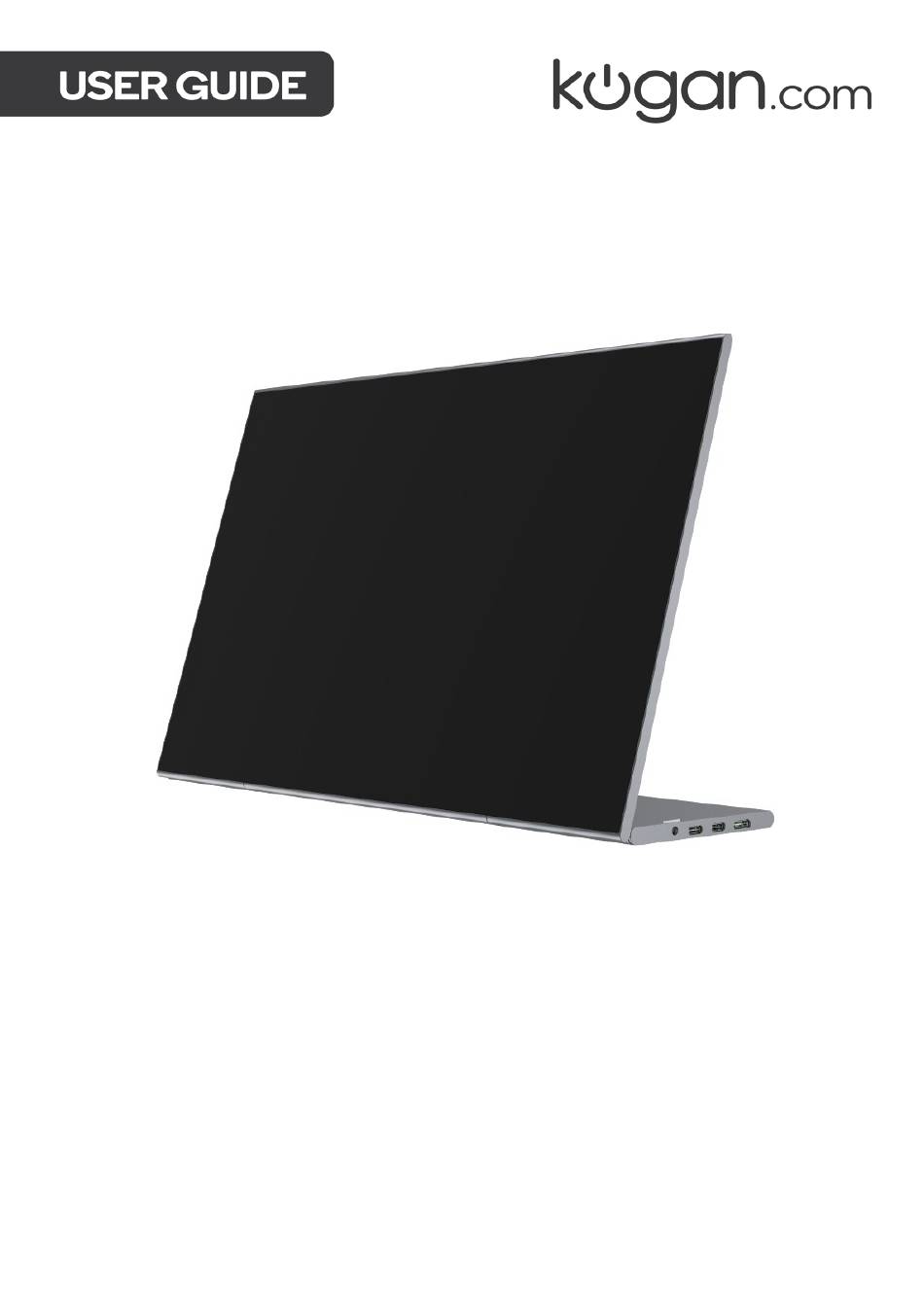

- Page 1 15.6" TOUCHSCREEN FULL HD IPS LED PORTABLE USB-C MONITOR (1920 x 1080) KAMN15TFULA...
-
Page 2: Table Of Contents
CONTENTS Safety instructions Components Product overview Base adjustment Connection options Guide to connections External Controls Operation Power Saving Mode Display Data Channel Specifications Troubleshooting Cleaning & maintenance... -
Page 3: Safety Instructions
SAFETY & WARNINGS • Read all instructions before using the monitor and retain this user guide for future reference. • Unplug the monitor before cleaning it. • Use a clean, slightly dampened cloth to wipe the main monitor body. • To clean the screen: Turn it off, unplug it and wait for it to cool completely, then wipe it with a dry micro-fibre cloth. -
Page 4: Components
COMPONENTS 15.6” Touchscreen LED USB-C Power Plug Portable Monitor Power Adapter Mini HDMI Cable USB-C Cable User Guide... -
Page 5: Product Overview
PRODUCT OVERVIEW 15.6” Touchscreen LED Mini HDMI port Portable Monitor Up button Primary USB-C port (full function) Down button Secondary USB-C port (charging only) Power button 3.5mm headphone jack LED indicator Left and Right speakers... -
Page 6: Base Adjustment
BASE ADJUSTMENT The portable monitor comes equipped with an adjustable base featuring a full 180° range, allowing it to be completely flat (180°), upright (90°), and any other configuration between 0-180°. -
Page 7: Connection Options
CONNECTION OPTIONS Computer (via USB-C) The portable monitor can be connected to a compatible computer using the supplied USB-C to USB-C cable. This must be connected to the monitor’s primary USB-C port. The computer will provide power and signal to the monitor and can be used for extended display or duplicated display use. - Page 8 Mobile phone (via USB-C) If there is no external power supply connected to the secondary USB-C port, the mobile phone battery will supply power to the display. The mobile phone’s USB-C output must be larger than 5V 1A to provide power without external power. To reduce power usage, the energy-saving mode will be activated and the display brightness will be automatically set low.
- Page 9 Other devices (via HDMI & USB or power adapter) If connecting to a device without a USB-C port, you can utilise HDMI as long as you also provide a power supply. Connect the supplied HDMI-to-Mini HDMI cable between the device and the portable monitor, while also connecting the monitor directly to an external power adapter (supplied) via USB.
-
Page 10: Guide To Connections
GUIDE TO CONNECTIONS External External Power Touchscreen Monitor port device device port supply function Laptop USB-C Primary USB-C Laptop USB-C Primary USB-C Laptop Charging USB-C port Adapter to adapter HDMI Mini HDMI Laptop Charging USB-C port Adapter to adapter USB-C Primary USB-C Smartphone Charging USB-C port... -
Page 11: External Controls
EXTERNAL CONTROLS Press to open Quick Menu. Press to open Brightness menu from Quick Menu. Press this button to navigate OSD menu. Up button When in an adjustment screen, use both up and down buttons to adjust the amounts. Long-press this button to enter the volume adjustment screen. -
Page 12: Operation
OPERATION Powering On / Off Press and hold the power button for 3 seconds to turn the monitor ON and OFF. The monitor will enter power saving mode when turned on unless there is a suitable device connected. Volume Up / Down Press and hold the Up button to enter Volume Adjustment. - Page 13 The following content is for general reference only. The actual product specifications may vary. The on-screen display (OSD) can be used for adjusting the settings of your monitor. Press any button to open the Navigation OSD. You can use the OSD to adjust the picture quality, OSD setting and general settings.
- Page 14 Colour Temperature Setting The colour temperature adjustment Warm-Normal-Cool corresponds to the colour temperature of 6500K, 7500K, 9300K and the User mode has a three-level menu. Audio Setting Adjust the volume manually, or select Audio Mute to disable the audio. OSD Setting •...
-
Page 15: Power Saving Mode
POWER SAVING The monitor will be switched to Power Saving mode by the control signal from the display controller, as indicated by the red-coloured LED indicator. The power-saving mode will be kept until a control signal has been detected or the keyboard or mouse is activated (if connected to a computer). -
Page 16: Specifications
SPECIFICATIONS Audio Speaker 1W (x2) Dimensions Size 362 (W) x 240 (H) x 15.6 (D) mm Net Weight 1.34 kg Display Brightness 250 cd/m2 Colours 16.7M Contrast Ratio 800:1 Native Aspect Ratio 16:9 Panel Manufacturer Panel Type Refresh Rate 60Hz Resolution 1920 x 1080 Size... -
Page 17: Troubleshooting
Missing pixels/ spots and light leaks on the screen Pixels that are permanently off are an inherent defect in LED technology. Contact help.kogan.com about monitor quality and pixel issues. Make sure that the video cables of the monitor and HDMI Display fails when output device are properly connected. - Page 18 Computer equipment can be set to 16:9 resolution, the the entire screen. display can be full screen display Play a video source with a 16:9 video sources, and the monitor can display full screen. Still need help? Head online to help.kogan.com...
-
Page 19: Cleaning & Maintenance
CLEANING & MAINTENANCE • Before cleaning the monitor, unplug the monitor power cord from the electrical outlet. • When cleaning the antistatic screen, slightly dampen a clean, soft cloth with water. If possible, use a dedicated screen-cleaning tissue or solvent for electrostatic coating. Do not use benzene, thinner, ammonia, abrasives, or compressed air. - Page 20 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
