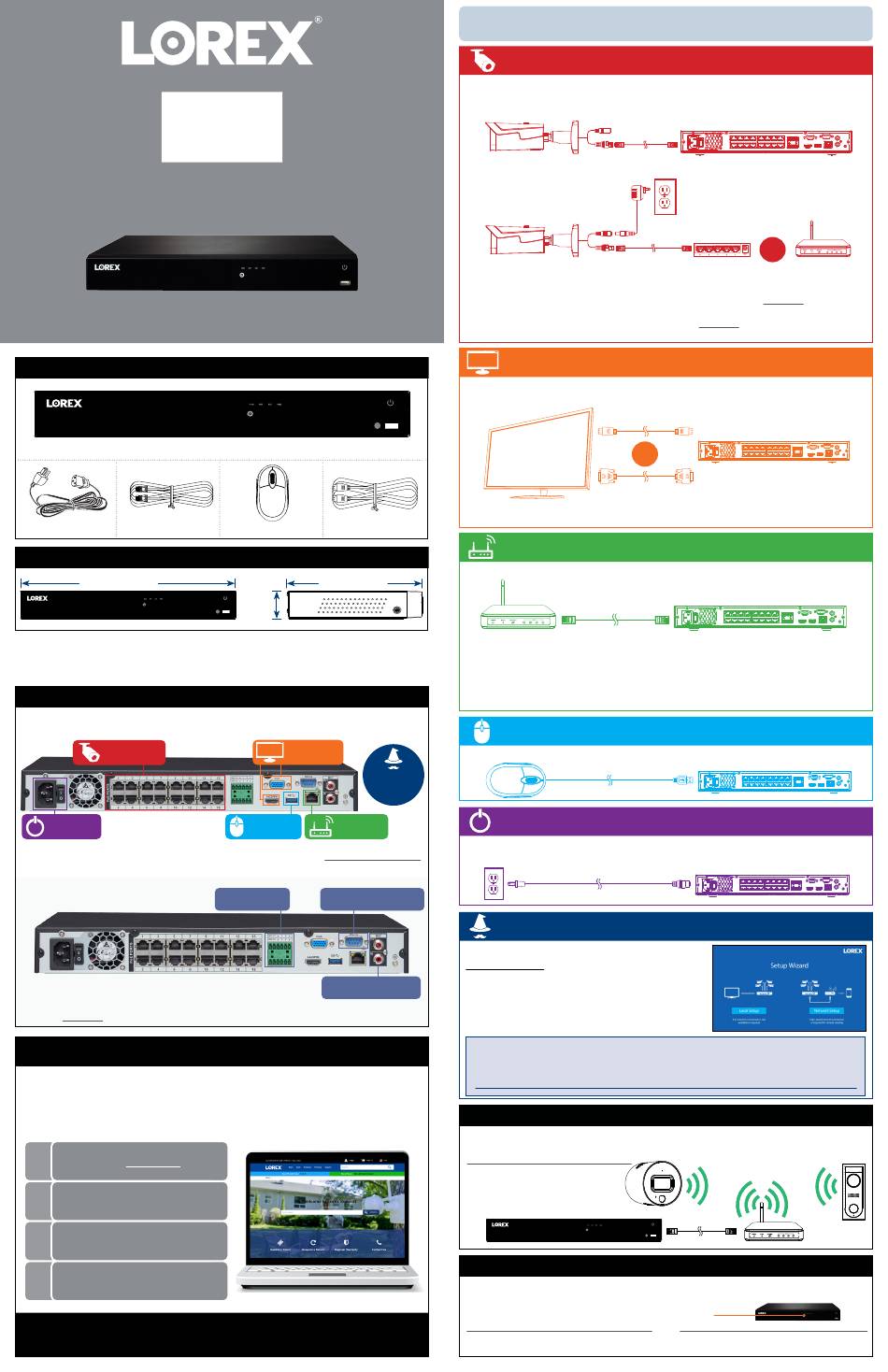

Lorex N862 Series Quick Setup Manual

1 / 2
Quick Setup Guide
Physical setup of recorder and essential system settings
N862 Series
Package Contents
4K Ultra HD Security NVR
Power Cable Ethernet Cable
Dimensions
14.7" / 375mm
Setting Up Your Recorder
See the steps below (expanded instructions to the right) to complete initial setup of the
recorder:
STEP 1:
Connect cameras*
STEP 5:
Connect power
For camera compatibility information, visit lorex.com/compatibility.
Overview of extra ports:
NOTE: For full instructions on using the extra ports, please refer to your security recorder's instruction
manual at lorex.com.
Need Help?
Visit us online for up-to-date software
and complete instruction manuals
1
Visit lorex.com
Search for the model
2
number of your product
Click on your product
3
in the search results
4
Click on the Downloads tab
Copyright © 2020 Lorex Corporation
As our products are subject to continuous improvement, Lorex reserves the right to modify product design, specifications
and prices, without notice and without incurring any obligation. E&OE. All rights reserved.
USB Mouse HDMI Cable
12.9" / 327mm
2.1"
53mm
STEP 2:
Connect monitor*
STEP 6:
Lorex Setup
Wizard
STEP 4: STEP 3:
Connect mouse Connect router*
* Not included / sold separately.
Alarm Block RS232
Connect alarm devices* Connect access control systems*
Audio In/Out
Connect microphone / speaker*
N862_QSG_EN_R1
Back panels shown below are for illustration only. Your recorder's back panel
may appear different, with all the same ports in different locations.
STEP 1: Connect cameras*
Test your cameras prior to selecting a permanent mounting location by temporarily
connecting the cameras and cables to your NVR using one of the following 2 methods:
a. Connect cameras directly to the recorder (recommended).
b. Connect cameras to a PoE switch or router on your network (not included).
NOTES:
• It may take up to 1 minute for cameras to start up and transmit video to your recorder.
• This guide covers connecting IP cameras to your security recorder only. For full instructions on
installing your cameras, please refer to your camera's documentation at lorex.com.
• Connecting cameras to a router, or a network switch without PoE, requires a power adapter for
each camera. Refer to your camera's documentation at
model number.
STEP 2: Connect monitor*
Connect the recorder to a monitor using the included HDMI cable or a VGA cable (not
included). The HDMI port supports up to 4K resolution, and VGA supports up to 1080p.
IMPORTANT: To optimize picture quality, set the recorder's video output to match the resolution of your
monitor. See the section Changing the Recorder's Output Resolution on the rear for details.
s
STEP 3: Connect router*
Connect the recorder to your router using the included Ethernet cable.
NOTES:
• If you are using a PoE switch, ensure the switch is connected to the same network as your
recorder.
• To receive automatic firmware updates and enable remote viewing with mobile apps, a high
speed Internet connection is required (minimum upload speed of 5Mbps required for 4K viewing;
3.5Mbps for lower resolutions). All other system features can be used without an Internet
connection.
STEP 4: Connect mouse
Connect the included mouse to a USB port on the recorder.
STEP 5: Connect power
Use the included power adapter to connect the recorder to a nearby outlet. Turn the recorder
on using the power switch on the back panel.
STEP 6: Lorex Setup Wizard
When you first power up your recorder, the
Lorex Setup Wizard will begin. The Wizard will help you
configure core system settings.
You will also create a secure password. For future reference,
it is recommended that you record your password here:
Record your password below and store in a secure place:
Lorex Fusion
Lorex Fusion supports connectivity with select wireless devices to the NVR. To learn more
about fusion connectivity and which Lorex devices are compatible with this feature, visit
lorextechnology.com/articles/fusion.
Reference: Quick Access to System Information
To quickly open a window that displays vital system information such as device ID, model
number, firmware version, and IP address:
• Tap the button on the front panel of the recorder.
• Right-click to open the Quick Menu and click Info.
OR
lorex.com for the correct power adapter
OR
OR
