- Page 1 TELESCOPIC SPRING COMPRESSOR MODEL NO: CHT746 PART NO: 1801746 OPERATION & MAINTENANCE INSTRUCTIONS LS0913...
-

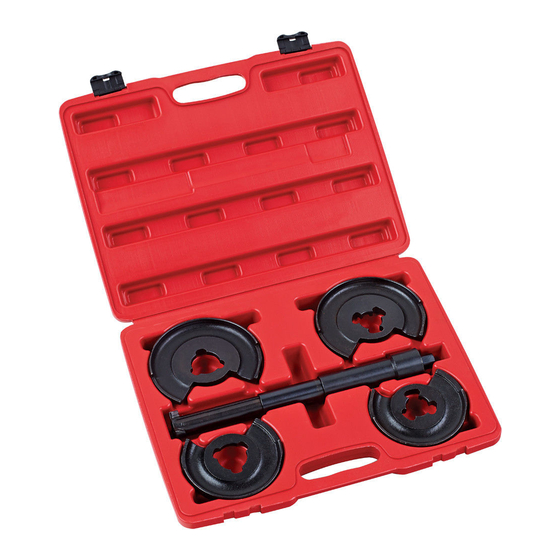

Page 2: What Is Supplied
This guarantee does not effect your statutory rights. WHAT IS SUPPLIED Contact your Clarke dealer if any items are missing or damaged. • 1 x drive handle • 2 pairs of compression yokes... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS WARNING: ENSURE HEALTH & SAFETY, LOCAL AUTHORITY, AND GENERAL WORKSHOP PRACTICE REGULATIONS ARE ADHERED TO WHEN USING THIS EQUIPMENT. WARNING: WEAR APPROVED SAFETY EYE PROTECTION (STANDARD SPECTACLES ARE NOT ADEQUATE). WARNING: DO NOT COMPRESS THE SPRING TO AN EXTENT WHERE THE COIL WINDINGS OR YOKES TOUCH. - Page 4 INSTRUCTIONS FOR USE WARNING: MEASURE THE OUTER DIAMETER OF THE SPRING TO BE COMPRESSED AND SELECT THE CORRECT SET OF YOKES. WARNING: ENSURE THAT THE COIL SPRING TO BE COMPRESSED IS FREE FROM DIRT AND GREASE WHERE THE YOKES WILL BE IN CONTACT WITH IT IMPORTANT: Do not use the coil spring compressor fully extended, but adjusted to a length of approx.
- Page 5 7. Use a 19mm hex socket to turn the hexagonal drive nut until the yokes are firmly in contact with the spring. 8. Now continue to compress the spring. WARNING: AIR TOOLS MUST NOT BE USED TO ADJUST THE SPRING COMPRESSOR.
-
Page 6: Maintaining The Spring Compressor
• If any damage is suspected, do not use the unit, but contact your local Clarke Dealer who will be able to advise you regarding repair and spare parts. • Grease the compressor spindle as necessary to inhibit corrosion. -
Page 7: Also Available From Your Clarke Dealer
ALSO AVAILABLE FROM YOUR CLARKE DEALER CHT695 OIL FILTER CAP WRENCH SET CHT701 12 PIECE OIL DRAIN PLUG KEY SET • Can withstand up to 85lb ft torque • 3/8" square drive carbon steel tommy bar • Oxide finish for rust protection •...
