Appendix E Dielectric fittings
TRANSFIX-family products that are to be connected to more than one transformer, such
as the MULTITRANS, must have suitable dielectric fittings placed in-line with the tubing
and installed close to the product. Dielectric fittings provide electrical isolation and
prevent circulating currents from flowing in the tubing circuits. Both Swagelok and Ham-
Let offer dielectric fittings.

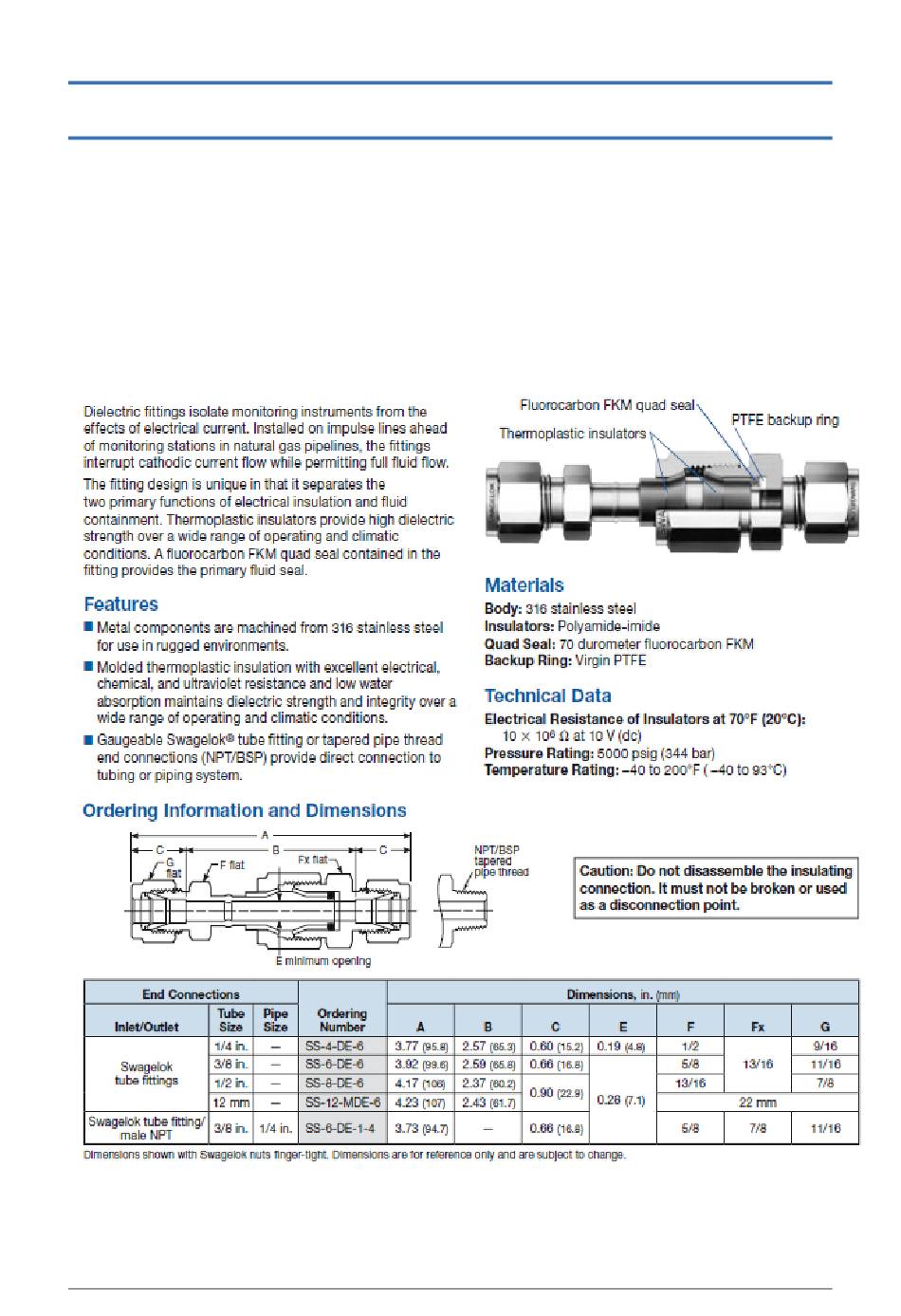

Details of the Swagelok dielectric fittings:
