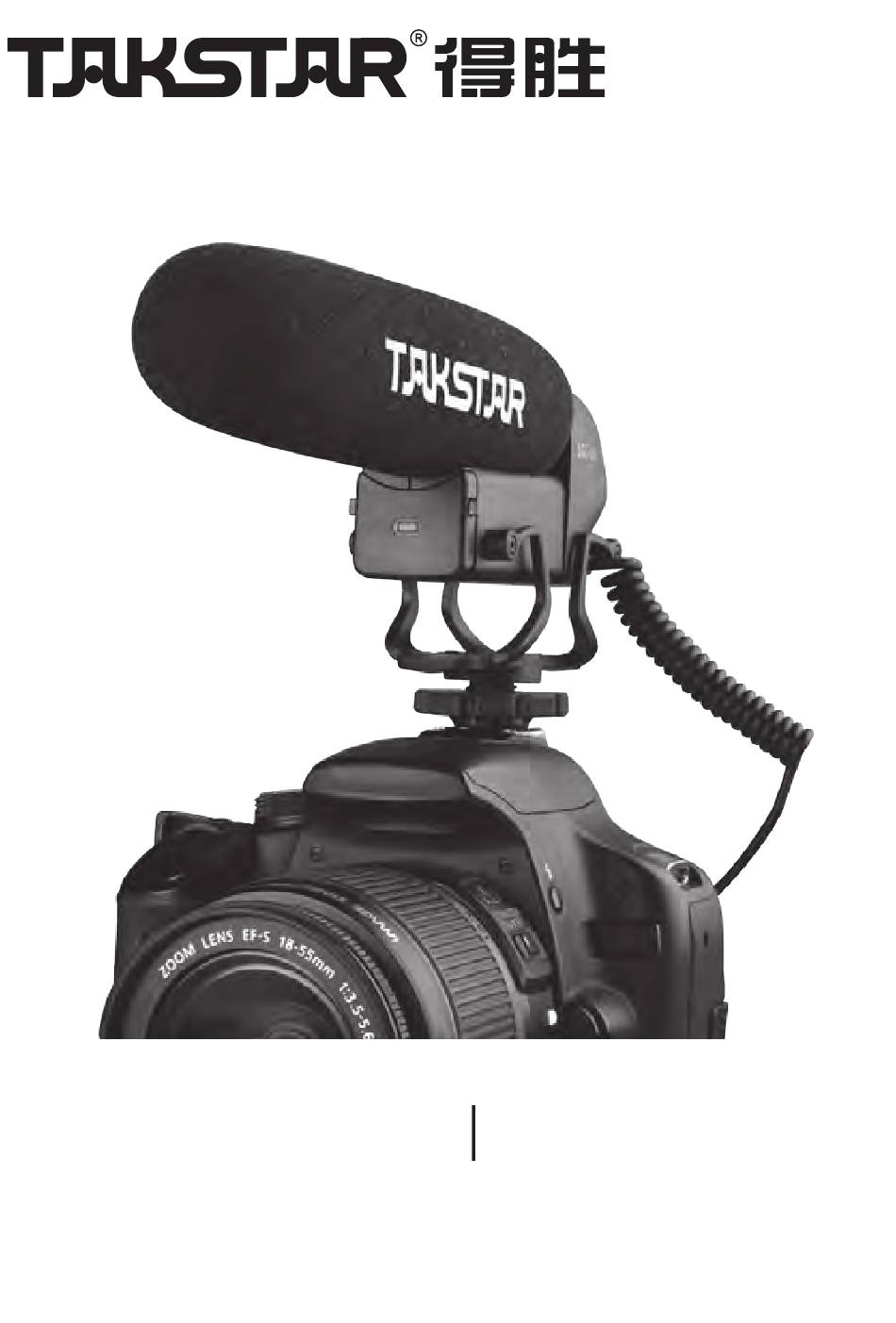

SHOTGUN MICROPHONE Preface Dear Customer, Thank you for purchasing Takstar SGC-600 Shotgun Microphone. Please read the user manual carefully before operation and keep it for reference in future. If you have any question or suggestion, please contact our local dealer.
Page 13
SGC-600 SHOTGUN MICROPHONE Product content Microphone ....................1 pc C2-1 Splitter Cable ..................1 Pc Windscreen....................1 Pc Battery ......................1 Pc User Manual....................1 Pc Specification [dB/1 V/Pa] [Hz]...
Page 14
(based on the battery capacity) Product dim:L157mm X H48mm Collecting tube Φ11mm X L120mm Net Weight : 75g ( Appr. ) Note: The above data are obtained by Takstar Laboratory and have the right of final interpretation has the right of final interpretation.
Page 15
SGC-600 SHOTGUN MICROPHONE Function instruction ① Power switch: set switch to ON to turn on and OFF to turn off. ② Power LED: If there is sufficient power when turning on it, the power LED keeps lighting up green. The LED keeps lighting up red means insufficient power.
Page 16
SGC-600 SHOTGUN MICROPHONE ② ③ ① ④ ⑤ ⑩ ⑧ ⑦ ⑥ ⑨...
Page 17
SGC-600 SHOTGUN MICROPHONE Operation instruction 1. Open the battery compartment. Put the battery in and keep the polarity +/- right, and then close the compartment. 2. When assembling it with camera or DSLR, insert the cold shoe into the slot of the camera. Turn the knob clockwise to fix the microphone. When assembling it with photography stand, connect the 1/4 socket on the microphone with photography stand.
Page 18
SGC-600 SHOTGUN MICROPHONE Connection diaphragm of camera photography Microphone Headset Camera Photography Stand...
Page 19
SGC-600 SHOTGUN MICROPHONE 3. Connect the microphone Φ3.5mm connector with the mic connector of camera or DSLR. If you need to monitor the recording effect, connect the headset with the headset connector of camera or DSLR (Buy the headset additionally).
Page 20
SGC-600 SHOTGUN MICROPHONE Stand photography C2-1 Splitter Cable...
Page 21
SGC-600 SHOTGUN MICROPHONE Handheld photography C2-1 Splitter Cable 5. When connecting with camera or DSLR for recording, it is recommended to set the mic volume fader to 0dB. When connecting with cell phone for recording, it is recommended to set the mic volume fader to +10dB.
Page 22
SGC-600 SHOTGUN MICROPHONE Cautions To avoid electric shock, over temperature, catching fire, explosion, mechanical risk and hurt or property loss caused by improper use, please read the following items carefully before operation: 1. Make sure the power of connected equipment matches with that of this product.
