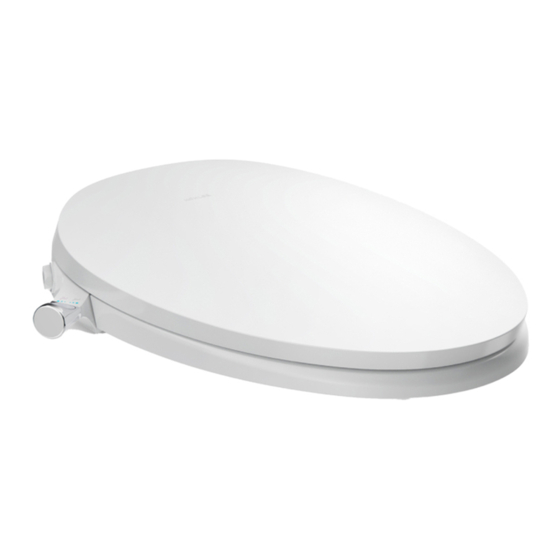

Bidet seat

Download this manual

BEFORE YOU BEGIN

Thank you for choosing Kohler Company. Kohler craftsmanship offers you a rare combination of proven performance and

graceful sophistication that will satisfy you for years to come. The quality and dependability of your Kohler toilet seat will

surpass your highest expectations. We're very proud of our products here at Kohler and we know you will be too.

Please take a few minutes to study this manual. Pay special attention to the Care and Cleaning instructions.

All information in this manual is based upon the latest product information available at the time of publication. At Kohler, we

constantly strive to improve the quality of our products. We reserve the right to make changes in product characteristics,

packaging or availability at any time without notice.

ROUGHING-IN

Reference Value

>25

<75

370-400

NO.158, JIANG CHANG SAN ROAD, JING' AN DISTRICT, SHANGHAI, PRC

1445659-X2-A

135-165

Kohler reserves the right to change marked dimensions without prior notice.

KOHLER CHINA INVESTMENT CO., LTD

POST CODE: 200436

468-498

-1-

INSTALLATION INSTRUCTIONS

-035 MANUAL BIDET SEAT

K-28010K

UNIT: mm

290

452-483

506

Page 1 Please take a few minutes to study this manual. Pay special attention to the Care and Cleaning instructions. All information in this manual is based upon the latest product information available at the time of publication. At Kohler, we constantly strive to improve the quality of our products. We reserve the right to make changes in product characteristics, packaging or availability at any time without notice.
Page 2: Installation
INSTALLATION Screw Washer Secure the mounting plate over the inserts of the toilet Adjusting Plate bowl with the screws and the washers provided. Tighten the screws with a screwdriver. Mounting Plate Anchor Mounting Plate Slide the bidet seat onto the mounting plate until you feel Seat it snap into place.
Page 3: Important Consumer Information
DISASSEMBLY Quick Release Button Push the quick release button and slide the bidet seat out of the mounting plate. IMPORTANT CONSUMER INFORMATION Care and Cleaning CAUTION: Risk of product damage. Do not stand on the toilet seat. The weight could damage the hinges. . The toilet seat may be completely removed for a complete cleaning.
Page 5 1445659-X2-A...
Page 6 1445659-X2-A...
