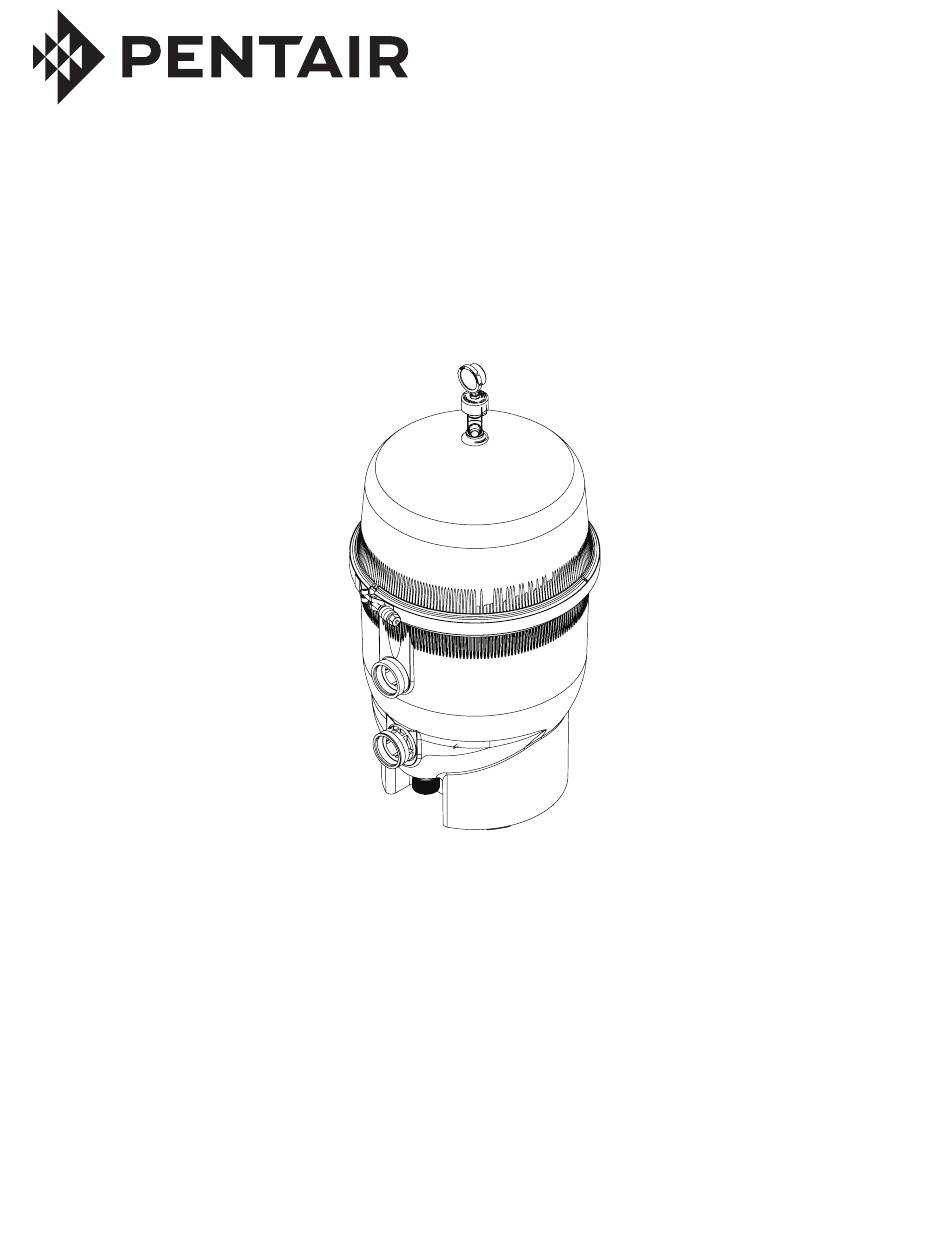

- Page 1 QUAD D.E.® CARTRIDGE STYLE D.E. FILTER INSTALLATION AND USER'S GUIDE IMPORTANT SAFETY INSTRUCTIONS READ AND FOLLOW ALL INSTRUCTIONS SAVE THESE INSTRUCTIONS...
-
Page 2: Table Of Contents
CUSTOMER SERVICE / TECHNICAL SUPPORT If you have questions about ordering Pentair replacement parts, and pool products, please contact: Customer Service and Technical Support, USA Sanford, North Carolina (8 A.M. to 4:30 P.M. ET) (8 A.M. to 4:30 P.M. — Eastern/Pacific Times) -
Page 3: Important Warning And Safety Instructions
Pressurized This guide provides installation and operation instructions for air can cause the lid to separate which can result in this product. Consult Pentair with any questions regarding this severe injury, death, or property damage. equipment. - Page 4 IMPORTANT: Keep all warning labels in good condition. If any warnings pressure has been discharged from the valve and a steady stream labels are damaged, missing, or become illegible call Pentair Customer of water appears. Observe filter pressure gauge and be sure it is not Service at 1-800-831-7133 and request replacement labeling.
-
Page 5: Introduction
It is critical to keep the pressure gauge cartridge filters are popular for their convenience and in good condition. easy-cleaning features. Now, Pentair has found a way Replace pressure gauge (P/N 190059) if any of the to bring you the best of both. -
Page 6: Installation
(5) feet from the filter. This will allow you enough room to 3. The filter requires one of the following Pentair stand clear of the filter during system start up. accessories which must be purchased separately. -
Page 7: Operation
OPERATION FILTER OPERATES UNDER HIGH PRESSURE. When any part of the circulating system, (e.g., clamp, pump, filter, valve(s), etc.), is serviced, air can enter the system and become pressurized. Pressurized air can cause the lid to separate which can result in severe injury, death, or property damage. To avoid this potential hazard, follow these instructions: 1. -
Page 8: Clamp Installation
Clamp Installation Follow these instructions exactly to prevent the lid from separating during system startup or operation. Sm. Washer 1. Turn off the pump and any automatic controls. Lrg. Washer 2. Open the manual air relief valve and turn Clamp counterclockwise until it snaps into the full open position. -
Page 9: System Restart
The pressure gauge indicates pressure before water out-flow appears. If either condition exists, shut off the pump immediately, open valves in the water return line to relieve pressure, and clean the air relief valve (see page 10). If the problem persists, call Pentair at (800) 831-7133. Preparing Diatomite Your filter requires diatomaceous earth (D.E. -
Page 10: Coating The Filter Elements With D
Coating the Filter Elements with Diatomaceous Earth (D.E.) The following information should be read carefully since it outlines the proper manner of care and operation for your filter system. You can expect maximum efficiency and life from your filtration system by following these instructions and taking the necessary preventative care. -
Page 11: Maintenance
MAINTENANCE FILTER OPERATES UNDER HIGH PRESSURE. When any part of the circulating system, (e.g., clamp, pump, filter, valve(s), etc.), is serviced, air can enter the system and become pressurized. Pressurized air can cause the lid to separate which can result in severe injury, death, or property damage. To avoid this potential hazard, follow these instructions: 1. - Page 12 Replacing Filter Elements Filter cartridge style element life will vary with pool conditions such as bather load, wind, dust, etc. You can expect an average cartridge life of 3 years under normal conditions. 1. To replace cartridge style elements refer to instructions on page 7, Manually Cleaning the Filter, eliminating step 8.
-
Page 13: Cleaning The Filter Using A Separation
Cleaning the Filter using a Separation Tank System (cont.) b. Multiport Rotary Valve After completing Steps 1 to 3 of this section; on page 8, perform the following steps: (1) Position the valve to the BACKWASH setting. (2) Open the High Flow™ Manual Air Relief Valve until it snaps into the full open position (this only requires a quarter turn counter-clockwise). -
Page 14: Cleaning The Manual Air Relief Valve
Cleaning the Manual Air Relief Valve Cleaning the Internal Air Bleed Tube 1. Turn the pump and any automatic controls off to It is recommended that the air bleed tube and screen ensure that the system is not inadvertently started cap be routinely inspected and cleaned. -
Page 15: Troubleshooting
TROUBLESHOOTING Use the following troubleshooting information to resolve possible problems with your filter. FILTER OPERATES UNDER HIGH PRESSURE. When any part of the circulating system, (e.g., clamp, pump, filter, valve(s), etc.), is serviced, air can enter the system and become pressurized. - Page 16 Troubleshooting, cont’d. Problems and Corrective Actions Problem Corrective Action PRESSURE DROPS ON GAUGE a. If pressure drops on gauge, shut off power to pump and turn motor shaft with your fingers. If it turns freely then the pump must be disassembled and the impeller checked to see if it is clogged.
-
Page 17: Replacement Parts
REPLACEMENT PARTS ITEM DESCRIPTION 1 98220100 ASSY. MANUAL AIR RELIEF VALVE 170024 LID, QUAD 60 178581 LID, QUAD 80 178582 LID, QUAD 100 178616 SPRING COMPRESSION - CNC PLS 170026 TOP MANIFOLD ASSY. 170029 AIR BLEEDER ASSY., QUAD 60 170028 AIR BLEEDER ASSY., QUAD 80 178583 AIR BLEEDER ASSY., QUAD 100... -
Page 18: Technical Data
TECHNICAL DATA Head Loss Curves QUAD D.E. ® CARTRIDGE STYLE FILTER HEAD LOSS COMPARISON BEFORE CLEANABILITY AFTER CLEANABILITY 20 30 40 50 60 70 80 90 100 110 120 130 140 FILTER FLOW RATE G.P.M. Flow Rates Recommended Flow Rate Flow Rate GPM Res. - Page 19 NOTES QUAD D.E. Cartridge Style D.E. Filter Installation and User’ s Guide ®...
