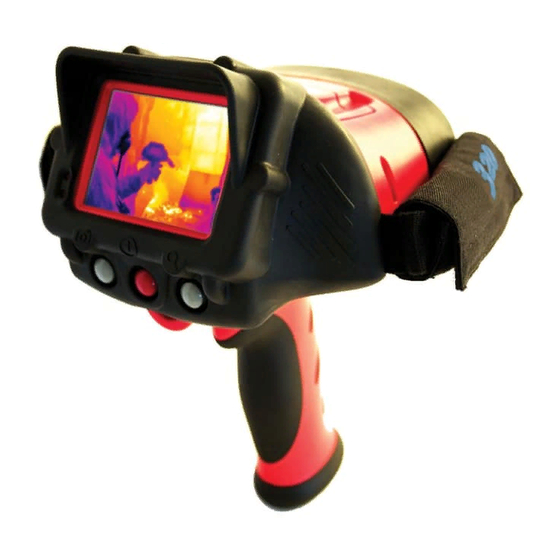

THERMAL IMAGING CAMERA SYSTEM
SAFETY NOTES
Before using this product, the customer shall read and understand all the
instructions and warnings. e2v technologies does not accept responsibility for
damage or injury resulting from failure to follow the instructions provided.
Refer to PSD775845A for safety and warning notes.
FCC Compliance Information (US)
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that
may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation.
Any modification not approved by e2v could void the user's authority to operate this
equipment.
e2v technologies (uk) limited 2014
118707
P7030UM version 6, page 1
Advertisement
Table of Contents
Related Manuals for Argus 3
Summary of Contents for Argus 3
- Page 1 THERMAL IMAGING CAMERA SYSTEM SAFETY NOTES Before using this product, the customer shall read and understand all the instructions and warnings. e2v technologies does not accept responsibility for damage or injury resulting from failure to follow the instructions provided. Refer to PSD775845A for safety and warning notes. FCC Compliance Information (US) This device complies with part 15 of the FCC Rules.
-
Page 2: Table Of Contents
1.4 Display Warning Graphics ................9 1.5 Operating Notes ..................10 Menu Control Functions ................12 Rechargeable Battery Pack and Battery Charger ........15 3.1 Rechargeable Battery Pack ................. 15 3.2 Battery Charger ................... 16 Software ...................... 18 Cleaning, Maintenance and Replaceable Parts ........... 20 Appendices .................... -
Page 3: Introduction
An export licence will be required if exported outside the EU. Camera Warnings • ® All users must be trained in the correct operation, functionality and features of the Argus 4 before use. • ® The Argus 4 can only be serviced by authorised personnel. -
Page 4: Operation And Use
OPERATION AND USE System Configuration Rear Bumper Battery Release Button Battery Side Strap USB Data Lead Socket Ambient Temperature Sensor Front Bumper Removable Handle Date Time Spot Temperature Target Training Bar Power LED Battery Bar Ambient Temperature Value Spot Temperature Value Image Capture Button Zoom Button ON/OFF Button... -
Page 5: Getting Started
Turn on the camera using the middle red button on the rear. A RED light will be illuminated to show the camera is powered. A long (3 second) press is required to switch the camera off. This is 6 seconds if the button menu is in use. -
Page 6: Camera Features
Camera Features • Dynamic Scene Colourisation (DSC) ® The Argus 4 provides the end-user with a selection of colour palettes, which colourises the thermal image to allow the user to pinpoint the hottest areas within the fire scene. These colour palettes are:... - Page 7 SceneSave Image Capture ® Up to 100 images can be captured and stored in the Argus 4. These images can then be viewed or deleted using the remote control or software provided. See section 2 for details of remote control. Using the software provided, captured images can be downloaded to a suitable laptop/PC in several formats.
- Page 8 “M” symbol. The image that is produced is clearer and will show more detail. The temperature range for this mode is between −40 °C and 150 °C (−40 °F and 302 °F). (Argus ®...
-
Page 9: Display Warning Graphics
Display Warning Graphics ® The Argus 4 is equipped with an advanced microprocessor based control and user warning system. In addition to controlling the automatic operation of the camera to ensure the best possible picture at all times, the control system provides graphics on the display to alert the user to certain conditions as follows: •... -
Page 10: Operating Notes
Operating Notes The following information relates to a “white-hot” image. • Interpreting The Image – Relative Temperatures The image displayed is simply a black and white picture of the infrared energy entering the lens. The camera displays relative temperature differences between individual objects and their surroundings irrespective of overall ambient temperature. - Page 11 • Windows and Polished Surfaces Glass is not transparent to long wavelength infrared energy and it is not possible for the operator to use the camera to look through a window. A white window would indicate that the window itself is relatively warm and may be being heated by a fire behind it.
-
Page 12: Menu Control Functions
To enter the menu using the remote control, press the on/off button on the remote. To enter the menu using the camera buttons, press the centre on/off button on the camera for 3 seconds. IR remote menu Button menu... - Page 13 Exit Menu • Power Down Camera (button menu only) Hold down the RED button for 3 seconds to make the camera turn off. This menu item is only present when using the menu through the camera buttons. • Date and Time Press the OK button to enter the time and date settings using the menu ▲...
- Page 14 • Display Stored Images By pressing the + or - buttons, the stored images can be scrolled through. By pressing the delete button twice the image can be deleted. When using the button menu the camera grey buttons allow the user to scroll through the images.
-
Page 15: Rechargeable Battery Pack And Battery Charger
The Argus 4 camera is supplied with two rechargeable battery packs. The ® rechargeable packs are designed to power an Argus 4 for 4 hours from a full charge and use Nickel Metal Hydride (Ni-MH) cells. The battery pack contains circuitry that monitors the cell’s temperature to ensure that maximum performance... -
Page 16: Battery Charger
Cautions • Do not charge batteries with too high or low battery temperatures. • ® Only use the Argus 4 Rechargeable Battery (P7030R) and Charging Shoe with this charger. e2v technologies (uk) limited 2014 118707 P7030UM version 6, page 16... - Page 17 If the battery has not been used for some time, or is completely discharged, the charger allows 3 minutes for the battery to recover. If this is not enough and the charger indicates ‘top up’ after 3 minutes, allow the battery to ‘top up’ for the full 2 hours before recharging as normal.
-
Page 18: Software
SOFTWARE & CUSTOMER CD ® The Argus camera is supplied with a CD containing current datasheets on both the camera range and the accessories available. The CD also contains the customer software for our range of cameras. The customer software runs on a PC with Windows XP / Vista / Win7. This allows the user to perform the following tasks: •... - Page 19 Note The software is specific to camera types, it is important to install and run the correct software for the camera that is connected. The camera will only connect to the correct software. e2v technologies (uk) limited 2014 118707 P7030UM version 6, page 19...
-
Page 20: Cleaning, Maintenance And Replaceable Parts
CLEANING, MAINTENANCE AND REPLACEABLE PARTS • Cleaning After use and prior to stowing, the camera should be cleaned. This is best carried out using a cloth soaked with warm soapy water. Solvents should not be used. If in doubt, contact your supplier. •... -
Page 21: Appendices
APPENDICES Ateme Software Ateme has proprietary rights to elements of software contained within this product. MPEG-4 Visual Patent Notice to Customers This product is licensed under the MPEG-4 visual patent portfolio license for the personal and non-commercial use of a customer for: o Encoding video in compliance with the MPEG-4 visual standard (“MPEG-4 video”);... - Page 22 User’s Manual...
- Page 23 e2v technologies (uk) limited Waterhouse Lane Chelmsford Essex CM1 2QU, UK Telephone: +44 (0)1245 493493 Facsimile: +44 (0)1245 492492 e2v technologies inc. 520 White Plains Road, Suite 450 Tarrytown NY 10591, USA Telephone: (914) 592 6050 Facsimile: (914) 592-5148 e2v technologies sas 16 Burospace F-91572 Bièvres Cedex, France Telephone: (0)16019 5500...
