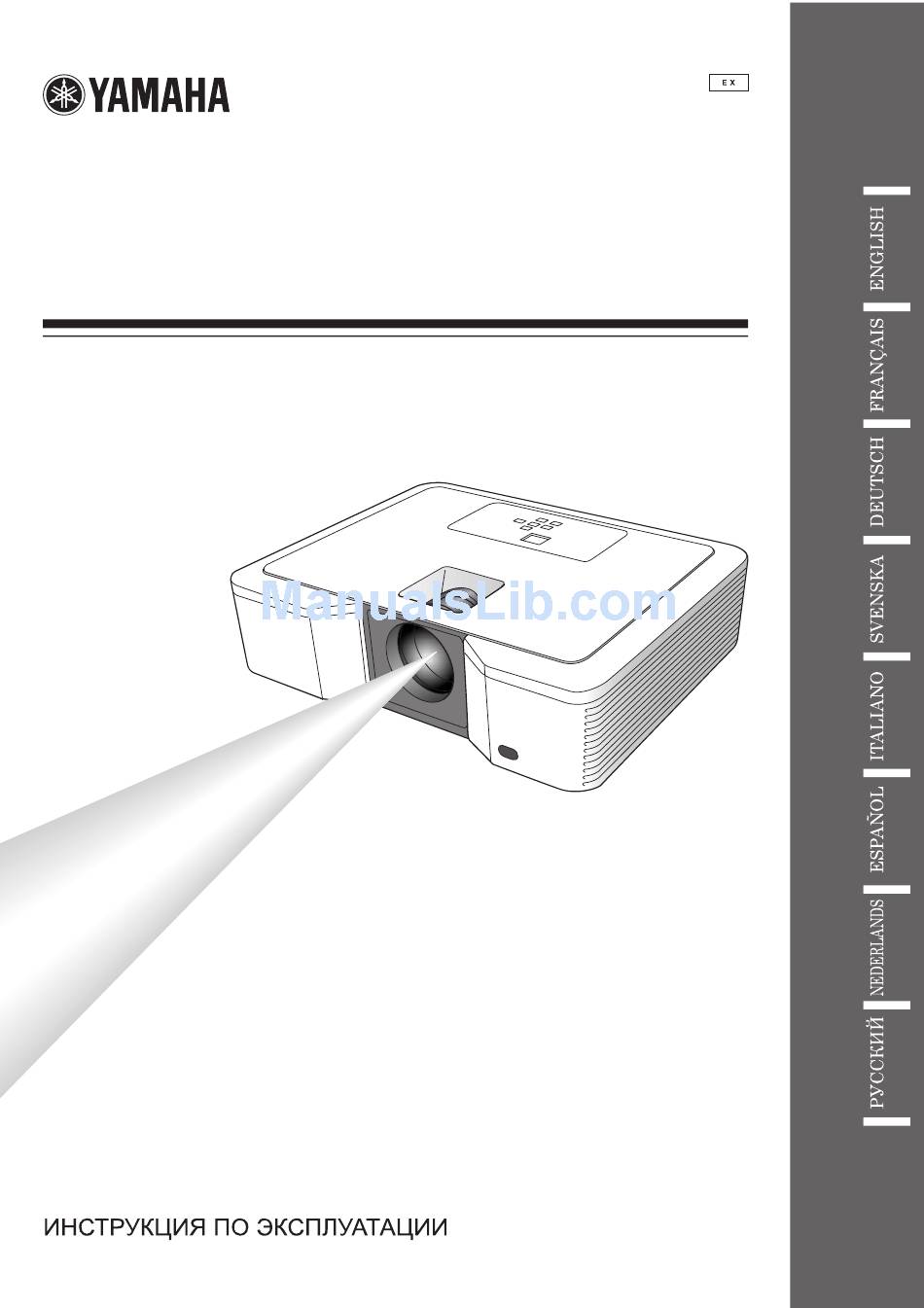

- Page 1 DPX-530 Digital Cinema Projector Projecteur Cineme Numerique OWNER ’ S MANUAL MODE D’EMPLOI BEDIENUNGSANLEITUNG BRUKSANVISNING MANUALE DI ISTRUZIONI MANUAL DE INSTRUCCIONES GEBRUIKSAANWIJZING...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. • Explanation of Graphical Symbols The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert you to the presence of uninsulated “dangerous... - Page 3 This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modifications not expressly approved by Yamaha may void your authority, granted by the FCC, to use the product. 2. IMPORTANT: When connecting this product to accessories and/or another product use only high quality shielded cables.
- Page 4 Caution: Read this before operating this unit. Warning • This unit must be grounded • Do not use this projector in a computer room This projector is not for use in a computer room, as defined in the Standard for the Protection of Electronic Computer/Data Processing Equipment, ANSI/NFPA 75.
-
Page 5: Table Of Contents
1 Preparation Inappropriate places for installation ...2 Accessory check ...3 Inserting the batteries into the remote control...4 2 Controls and functions Projector overview ...5 Remote control overview ...6 Using the picture quality adjusting buttons ...6 3 Using the remote control Operational range ...7 Reception angle ...7 4 Setting up the projector... -
Page 6: Preparation
Preparation ◆ Inappropriate places for installation If this unit is not correctly installed in an appropriate place, it may cause fire or failure, or damage the unit itself. Carefully choose the place to install this unit by avoiding the places listed below. 1. -
Page 7: Accessory Check
◆ Accessory check The following accessories are provided with this projector. Check to be sure that all of the accessories are packed in the package. ■ Cables mini D-SUB 15-pin S-video cable RGB cable for PC (WF76950) ■ Remote control parts Remote control R03 (Size-AAA) battery... -
Page 8: Inserting The Batteries Into The Remote Control
◆ Inserting the batteries into the remote control Caution • Using the wrong type of battery may cause an explosion. • Only Carbon-Zinc or Alkaline-Manganese Dioxide type batteries should be used. • Dispose of used batteries according to your local regulations. •... -
Page 9: Controls And Functions
Controls and functions ◆ Projector overview Control area Rear panel COMPONENT AC IN D-SUB SERIAL 1. FOCUS ring 2. ZOOM ring 3. Control panel 4. Air intake vent 5. Remote control sensor (Front) 6. Air exhaust vent 7. Air intake vent 8. -
Page 10: Remote Control Overview
Bottom side ◆ Remote control overview Using the picture quality adjusting buttons When you press either of the picture quality adjusting buttons, the message for adjusting the picture quality appears. Adjust the picture quality by pressing the GAMMA and C. TEMP buttons. The picture quality adjustment can be made alternatively in the IMAGE menu (see page 21). GAMMA... -
Page 11: Using The Remote Control
Using the remote control ◆ Operational range Front of projector Rear of projector 30˚ 30˚ Operate the remote control within a distance of 10 m from the projector, pointing the light beam at the remote control sensor (front or rear) of the projector. ◆... -
Page 12: Setting Up The Projector
When the screen and the projector are not placed perpendicularly to each other, projected images become trapezoidal. If you cannot make the projector and the screen perpendicular to each other by mechanical adjustments, adjust keystone (see page 15). STANDBY/ON POWER STATUS AUTO SYNC ENTER MENU DIGITAL CINEMA PROJECTOR DPX-530... -
Page 13: Screen Size And Projection Distance
◆ Screen size and projection distance Refer to the following diagram to determine the screen size. Screen size (Width of the projected image) When the aspect ratio of the screen is 4:3, the positional relation between the projected image and the screen is as shown on the right. Refer to the following table for installation. -
Page 14: Connections
Connections Preparations: • Make sure that the power of the projector and that of the video equipment are turned off. ◆ Basic home theater system connection (Blue) Y (Green) (Red) Video player DVD player Set-top box or digital tuner... -
Page 15: Connecting To A Video Player, Etc
◆ Connecting to a video player, etc. To VIDEO terminal S-VIDEO cable To S-VIDEO terminal To S-VIDEO terminal When a TV tuner or VCR is connected: When you use this projector with a TV tuner or VCR connected, no image may appear or a No Signal message may appear on the screen when you change to a channel that is not being received. -
Page 16: Dvi-D Connections
◆ DVI-D connections You can project high-quality images by connecting the DVI terminal of this projector to video equipment having a DVI-D output terminal. Equipment having a DVI-D terminal To DVI-D terminal DVI-D cable (commercially available) • For connection to the DVI terminal, use a commercially available DVI-D cable. •... -
Page 17: Connecting The Projector To A Computer
◆ Connecting the projector to a computer Preparation: • Make sure that the power of the projector and that of the computer are turned off. • When connecting the projector to a desktop computer, disconnect the RGB cable that is connected to the monitor. To D-SUB terminal RGB cable To DVI terminal... -
Page 18: Projection
Projection ◆ Viewing video images Preparation: • Turn on the power of the connected video equipment. FOCUS ring ZOOM ring 1. Confirm the POWER indicator lights up red. • If the projector was turned off before the lamp was cooled down sufficiently last time, the fan may start rotating and the STANDBY/ON button may not work after the power cable is plugged. -
Page 19: To Stop Projecting
To stop projecting: 1. Press the STANDBY/ON button on the projector or the STANDBY ( • A confirmation message is displayed. • To cancel the procedure, wait a while or press the MENU button. 2. Press the STANDBY/ON button on the projector or the STANDBY ( •... -
Page 20: Setting The Aspect Ratio
Setting the aspect ratio You can change the aspect ratio of the input video signal (or the ratio of width to height of the image). Change the setting according to the type of the input video signal. NORMAL Original image size Projects images with Projects images with an aspect ratio of 4:3... -
Page 21: Viewing Computer Images
◆ Viewing computer images Preparation: • Turn on the power of the connected computer. FOCUS ring ZOOM ring D-SUB/DVI button 1. Confirm the POWER indicator lights up red. • If the projector was turned off before the lamp was cooled down sufficiently last time, the fan may start rotating and the STANDBY/ON button may not work after the power cable is plugged. -
Page 22: Auto / Auto Sync Buttons
AUTO / AUTO SYNC buttons When the image being input from the computer is displaced, carry out the following procedure: 1. When the screen saver has been enabled, disable it. 2. Display a bright image (such as a full-screen display of the Recycle Bin window). 3. -
Page 23: Menu
Menu ◆ Menu overview Menus are not displayed when no signal is received by the projector. IMAGE CONTRAST BRIGHTNESS WHITE ENHANCE COLOR TEMP. SATURATION SHARPNESS SET UP KEYSTONE AUTO POWER ON AUTO POWER OFF SPLASH SCREEN HIDE SCREEN COLOR LAMP MODE LOCATION INITIAL MENU POSITION... -
Page 24: How To Set The Menus
How to set the menus Following describe how to set AUTO POWER OFF time as an example. 1. Press the MENU button. • If no signal is input, the menu does not appear. TV60 IMAGE 2. Press the button to select a menu to use. TV60 SETUP 3. -
Page 25: Menu Settings
◆ Menu settings Set the following items on their relevant menus. 1. IMAGE menu 2.SETUP menu TV60 IMAGE SETUP CONTRAST KEYSTONE AUTO POWER BRIGHTNESS AUTO POWER WHITE ENHANCE DEFAULT SPLASH sRGB SCREEN HIDE SCREEN COLOR TEMP. COLOR SATURATION LAMP MODE LOCATION SHARPNESS GAMMA... - Page 26 2. SETUP menu ITEM SETTING KEYSTONE ±20 AUTO POWER ON / OFF AUTO POWER OFF / 5 – 60min SPLASH ON / OFF SCREEN HIDE SCREEN BLUE / BLACK COLOR LAMP MODE BRIGHT CINEMA LOCATION FRONT / TABLE REAR / TABLE REAR / CEILING FRONT / CEILING 3.
- Page 27 4. SIGNAL Menu ITEM SETTING HORIZ. POSITION 0 – 999 VERT. POSITION 0 – 999 PHASE 0 – 31 TRACKING 0 – 9999 D-SUB INPUT COMPONENT SET UP LEVEL 3.5% / 7.5% (U.S.) SYNC NOISE / OFF MASK BEGIN A/D SETTING EXECUTE CLAMP POSITION CLAMP WIDTH...
-
Page 28: Adjusting Video Images
Adjusting video images ◆ Adjusting brightness (CONTRAST and BRIGHTNESS) You can make adjustments for the brightness of the projected image using the menu (see page 21). 1. Display the IMAGE menu. 2. Select CONTRAST or BRIGHTNESS by pressing the 3. Adjust the selected item by pressing the To cancel the menu: 4. -
Page 29: Adjusting Color (Saturation And Hue)
◆ Adjusting color (SATURATION and HUE) You can adjust the color of the projected image using the menu (see page 21). 1. Display the IMAGE menu. 2. Select SATURATION or HUE by pressing the • SATURATION is unavailable when the D-SUB source is an RGB signal or DVI is selected as the input source. •... -
Page 30: Memory Function
MEMORY function ◆ MEMORY function The memory function saves all of the parameters for the IMAGE menu and the SET UP LEVEL in the SIGNAL menu depending on the input terminal. • CONTRAST • SATURATION • BRIGHTNESS • HUE • WHITE ENHANCE •... -
Page 31: Ceiling Installation
Contact your dealer for details. • Yamaha assumes no responsibilities for any damage caused by use of other manufacturer s ceiling bracket and by inadequate installation conditions even within the warranty period. -
Page 32: Replacing The Lamp
Replacing the lamp This projector is equipped with a lamp to project images. This lamp is a consumable, so it may burn out or its brightness may decrease during use. If this happens, replace the lamp with a new one as soon as possible. Be sure to replace the lamp with a new, commercially available lamp that is exclusive to this projector. -
Page 33: Replacing The Lamp
◆ Replacing the lamp Reset of the lamp operation time Plug in the power cable and reset the lamp operation time by pressing and holding the at the same time. Important • Unless these three buttons are pressed at the same time, the lamp operation time isn’t reset. •... -
Page 34: Attaching A Lens Filter And Cap
• Do not force the lens cap onto the projector. • Make sure that the YAMAHA name on the lens cap is aligned parallel to the top and bottom edges of the projector. • The lens cap can be placed over the lens filter if a lens filter has been installed. -
Page 35: Troubleshooting
Troubleshooting ◆ Troubleshooting Refer to the chart below when this projector does not function properly. If the problem you are experiencing is not listed below or if the instructions do not help, stop using the projector and contact your dealer. No image appears on the screen. - Page 36 Problem Solution “NO SIGNAL” is displayed. • Turn on the power of the connected device, or check whether there is something wrong with the connected device. • Check whether the external device outputs signals. (Check this especially when the external device is a notebook computer.) •...
- Page 37 Others Problem Solution The exhaust vents emit warm • This air comes out after cooling the inside of the projector. It may feel hot, but this is not a malfunction. air. The menu can't be used. • The microcomputers inside the projector may be wrongly operating because of noise. ➜Press the STANDBY/ON button to turn off the lamp and unplug the power cable from the wall outlet.
-
Page 38: Indicators
Indicators This projector has two indicators, each of which shows the operation condition of the projector. Refer to Troubleshooting for additional indication signals. STANDBY/ON button ◆ Normal conditions POWER STATUS Stand-by. Steady red Warming up period (about 1 minute). Steady green Blinking green The projector is ready. -
Page 39: Specifications
Component video input Analog RGB input Digital RGB input DLP™ projector DPX-530 0.65-inch Single chip DMD (Aspect ratio 16:9) Pixel 1024 × 576 = 589824 pixels F 2.4 – 2.6 f= 23 – 27.6 mm 250 W 40" min. to 275" max. (Projection distance 1.3 to 10 m) -
Page 40: Composite / S-Video Signal Specifications
◆ Composite / S-video signal specifications Signal mode Resolution (H × V) TV60 – TV50 – ◆ Component signal specifications Signal mode Resolution (H × V) 480i (525i) – 576i (625i) – 480p (525p) – 576p (625p) – 720p 60 (750p 60) –... - Page 41 Important • Some computers aren’t compatible with the projector. • The projector's maximum resolution is 1024 × 576 pixels. It may not display images of higher resolutions than 1024 × 576 correctly. • If the resolution and frequency of your computer aren't shown on the table, find the compatible resolution and frequency by changing the resolution of your computer.
