Installation instructions
Please read and follow the
'Safety and
warnings' and 'installation instructions' sections carefully before using your
rangehood.

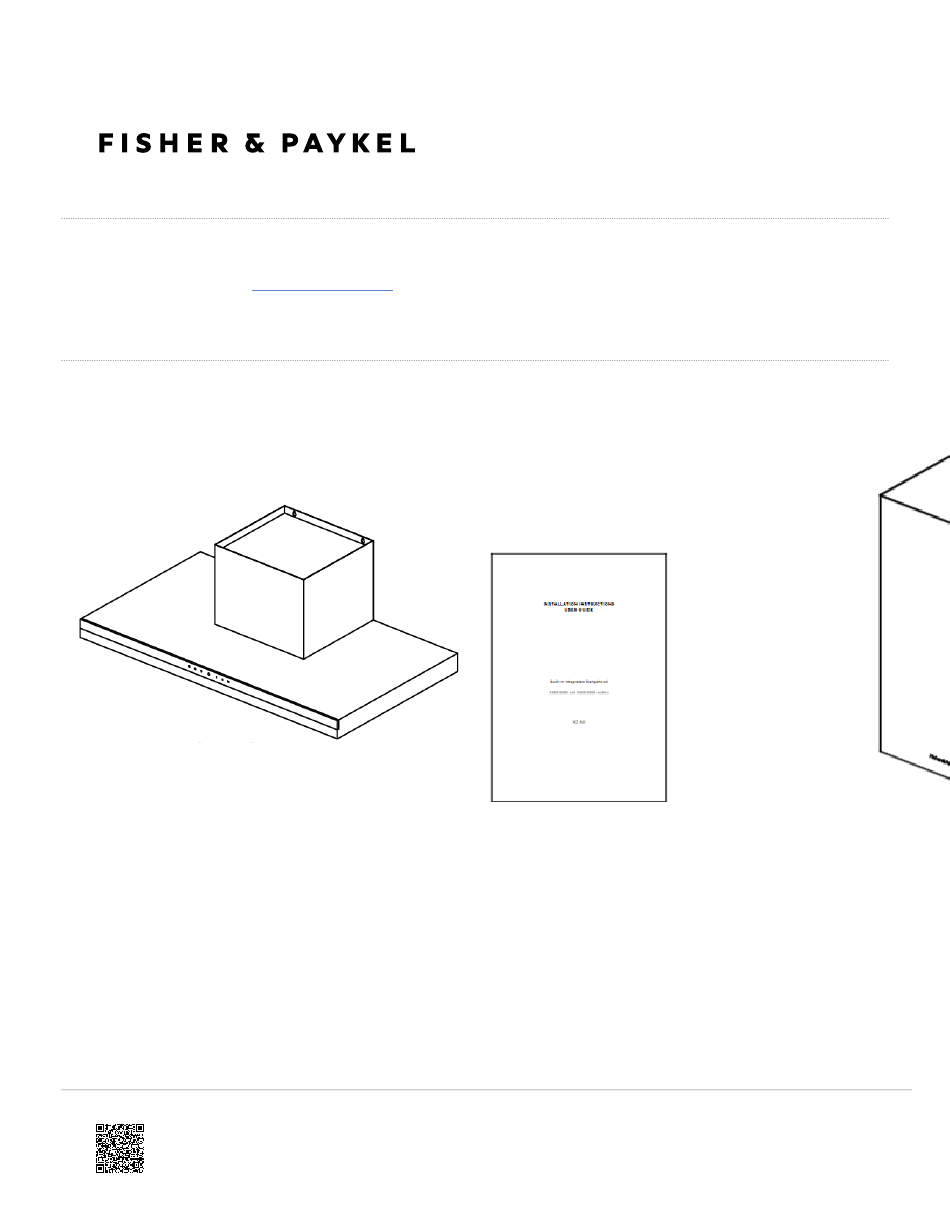

Contents of packaging
Rangehood (1)
Installation instructions User guide manual (1)
https://producthelp.fisherpaykel.com/nz/Cook/Rangehoods/Canopy/HC60DCXB1/User_Guide_HC60DCXB1/03_Installation_i...
Updated: Thu, 08 Oct 2020 05:42:05 GMT
Powered by
1
Advertisement
Table of Contents
Related Manuals for Fisher & Paykel HC60DCXB1
Summary of Contents for Fisher & Paykel HC60DCXB1
- Page 1 Installation instructions Please read and follow the ‘Safety and warnings’ and ‘installation instructions’ sections carefully before using your rangehood. Contents of packaging Rangehood (1) Installation instructions User guide manual (1) https://producthelp.fisherpaykel.com/nz/Cook/Rangehoods/Canopy/HC60DCXB1/User_Guide_HC60DCXB1/03_Installation_i… Updated: Thu, 08 Oct 2020 05:42:05 GMT Powered by...
- Page 2 Upper chimney (1) Upper chimney bracket (1) Ducting adapter (150 mm Ø) Expansion plug (8) https://producthelp.fisherpaykel.com/nz/Cook/Rangehoods/Canopy/HC60DCXB1/User_Guide_HC60DCXB1/03_Installation_i… Updated: Thu, 08 Oct 2020 05:42:05 GMT Powered by...
-
Page 3: Product Dimensions
10 mm self tapping screw (4) Product dimensions https://producthelp.fisherpaykel.com/nz/Cook/Rangehoods/Canopy/HC60DCXB1/User_Guide_HC60DCXB1/03_Installation_i… Updated: Thu, 08 Oct 2020 05:42:05 GMT Powered by... - Page 4 Updated: Thu, 08 Oct 2020 05:42:05 GMT Powered by...
- Page 5 Height of stainless strip Width of chimney Depth of chimney Distance from centre of ducting outlet to back of product Distance from centre of ducting outlet to side of chimney https://producthelp.fisherpaykel.com/nz/Cook/Rangehoods/Canopy/HC60DCXB1/User_Guide_HC60DCXB1/03_Installation_i… Updated: Thu, 08 Oct 2020 05:42:05 GMT Powered by...
- Page 6 Distance from centre of lights to back of product Length of power cord 1500 1500 1500 Actual product dimensions may vary by ± 2 mm. Please read the entire instructions before installing the rangehood. https://producthelp.fisherpaykel.com/nz/Cook/Rangehoods/Canopy/HC60DCXB1/User_Guide_HC60DCXB1/03_Installation_i… Updated: Thu, 08 Oct 2020 05:42:05 GMT Powered by...
-
Page 7: Height Of Rangehood
Height of rangehood https://producthelp.fisherpaykel.com/nz/Cook/Rangehoods/Canopy/HC60DCXB1/User_Guide_HC60DCXB1/03_Installation_i… Updated: Thu, 08 Oct 2020 05:42:05 GMT Powered by... -
Page 8: Installation Dimensions
The recirculation diverter is installed after a short length of ducting and is required to channel the air out the side vents at the top of the chimney and the carbon filters are required to remove odours. https://producthelp.fisherpaykel.com/nz/Cook/Rangehoods/Canopy/HC60DCXB1/User_Guide_HC60DCXB1/03_Installation_i… Updated: Thu, 08 Oct 2020 05:42:05 GMT Powered by... -
Page 9: Installation
• Attach the chimney bracket and upper chimney bracket (if using the upper chimney) in the locations shown in Fig.2 and 3. Use the 30 mm screws and expansion plugs if attaching to masonry. https://producthelp.fisherpaykel.com/nz/Cook/Rangehoods/Canopy/HC60DCXB1/User_Guide_HC60DCXB1/03_Installation_i… Updated: Thu, 08 Oct 2020 05:42:05 GMT... - Page 10 Ensure that there is a 2 mm gap between the screw head and the wall – see Fig.1. Fig.1 Fig.2 Product Dimensions Property (mm) HC60 HC90 HC120 A. Lower rangehood attachment point width https://producthelp.fisherpaykel.com/nz/Cook/Rangehoods/Canopy/HC60DCXB1/User_Guide_HC60DCXB1/03_Installation_i… Updated: Thu, 08 Oct 2020 05:42:05 GMT Powered by...
- Page 11 D. Lower rangehood attachment point height 42.5 Fig.3 3. Attach ducting adapter • Place the ducting adapter onto the hood and screw it in place using the 10 mm screws. https://producthelp.fisherpaykel.com/nz/Cook/Rangehoods/Canopy/HC60DCXB1/User_Guide_HC60DCXB1/03_Installation_i… Updated: Thu, 08 Oct 2020 05:42:05 GMT Powered by...
- Page 12 4. Attach hood to wall • Remove filters and easy clean plate from hood as shown in Fig.4. Fig.4 https://producthelp.fisherpaykel.com/nz/Cook/Rangehoods/Canopy/HC60DCXB1/User_Guide_HC60DCXB1/03_Installation_i… Updated: Thu, 08 Oct 2020 05:42:05 GMT Powered by...
- Page 13 • Bend the tabs on the chimney (A). • Place chimney around the hood chassis and hang off the bracket (B). • Extend the upper chimney and attach to the chimney bracket with 10 mm screws (C). https://producthelp.fisherpaykel.com/nz/Cook/Rangehoods/Canopy/HC60DCXB1/User_Guide_HC60DCXB1/03_Installation_i… Updated: Thu, 08 Oct 2020 05:42:05 GMT Powered by...
