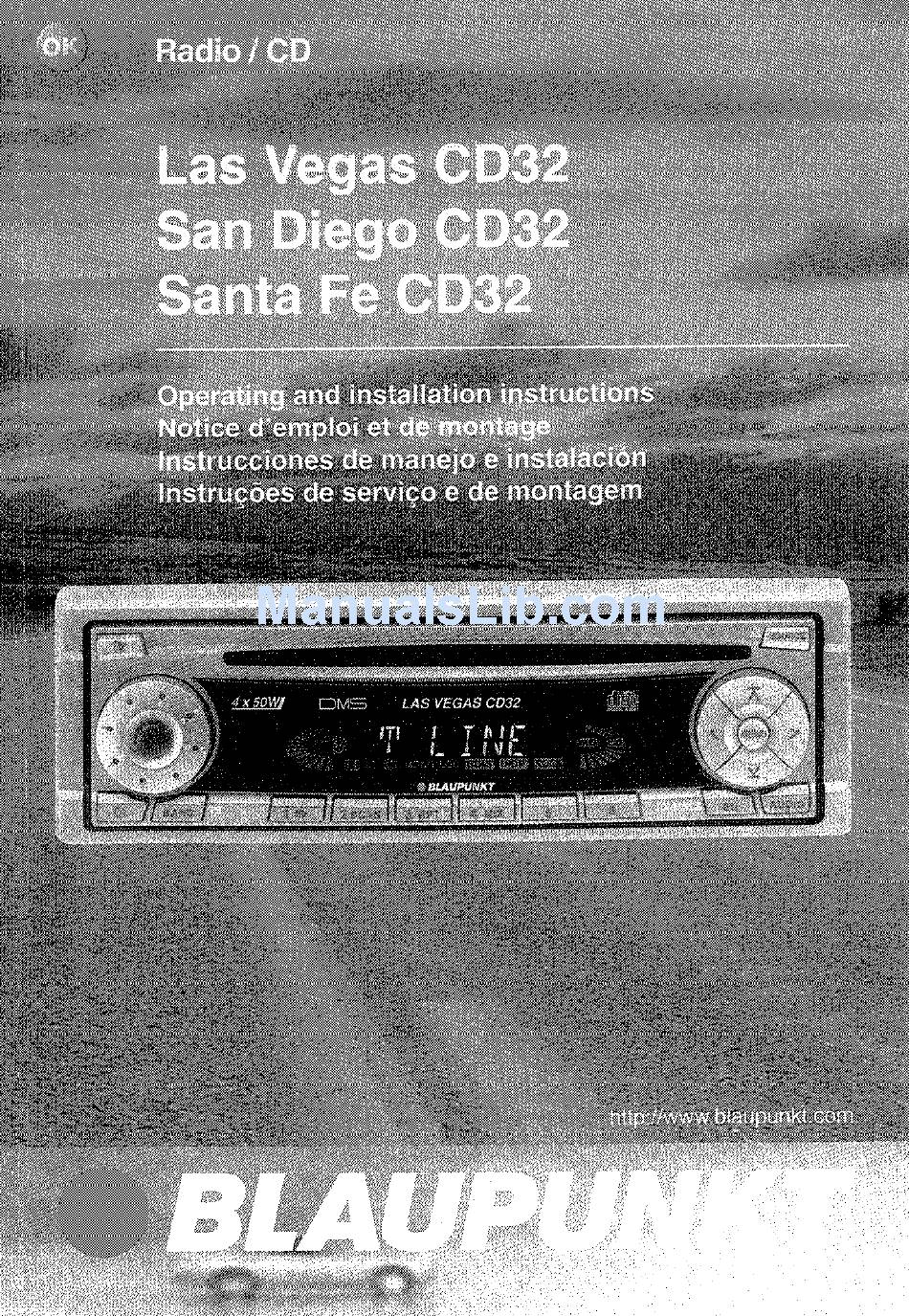

- Page 2 Open here Ouvrir s.v.p. Por favor, abrir Favor abrir 0 BLAUPUNKT...
- Page 4 CONTROLS [v button to release the control panel. Button to switch the unit on/off. Volume control. CD compartment. Arrow buttons. MENU button to open the basic settings menu. Short press: SOURCE button, to select the CD, radio and CD changer sources. Long press: CD eject.
-
Page 5: Table Of Contents
Notes and accessories ... 6 Road safety ... Installation ... Accessories ... Removable control panel ... 7 Theft protection ... Detaching the control panel ... 7 Attaching the control panel ... 7 Switching on/off ... 8 Adjusting the volume ... 9 Setting the power-on volume ... -
Page 6: Notes And Accessories
(only with the Las Vegas CD32). The RC 04 remote control is optionally available for the Santa Fe CD32 unit. The San Diego CD32 unit cannot be remotely controlled. Amplifier All Blaupunkt and Velocity amplifiers can be used. -
Page 7: Removable Control Panel
Removable control Theft protection As a way of protecting your equipment against theft, the unit is equipped with a detachable control panel (release panel). Without this control panel, the car radio is worthless to a thief. Protect your equipment against theft by taking the control panel with you every time you leave your vehicle. -
Page 8: Switching On/Off
SWITCHING ON/OFF Switching on/off There are various ways of switching the unit on/off: Switching on/off using the vehicle ignition If the unit is correctly connected to the vehicle’s ignition and it was not switched off using button 0, it will switch on/off simultaneously with the ignition. -
Page 9: Adjusting The Volume
Adjusting the volume The system volume can be adjusted in steps from 0 (off) to 100 (maximum). To increase the system volume, D turn the volume control @ clock- wise. To decrease the volume, 0 turn the volume control @ anti- clockwise. -
Page 10: Radio Mode
RADIO MODE Radio mode Switchina to radio mode If you are in CD or CD changer mode (CD changer only with the Las Vegas mnon\ bV.x), 0 keep pressing the SOURCE @ button until the radio mode appears in the display together with the memory bank and frequency. -
Page 11: (Travelstore)
RADIO MODE Storinq stations automatically (Travelstore) You can automatically store the six sta- tions with the strongest reception in the region. The stations are stored in the FMT or AM memory depending on the selected frequency band. Note: . Any stations that were previously stored on this memory bank are deleted in the process. -
Page 12: Selecting Tracks
Selectinn tracks 0 Pressoneofthe7V>or</Y buttons @to select the next or previous track. If you press the < / Y button @ once, the current track will be played again from the beginning. Fast track selection To quickly select tracks backwards or forwards, D keep one of the Y IX buttons @ pressed until fast-reverse /fast-... -
Page 13: Pausing Playback (Pause)
CD MODE Pausing plavback (PAUSE) 0 Press button 1 A, 0. “S--PAUSE” appears in the display. Canceling pause Q Press button 2 IF @ while in pause mode. Playback is resumed. Removina the CD from the unit To remove the CD from the unit, SOURCE 0 keep the button @... -
Page 14: Fast Searching (Audible)
CD CHANGER MODE Fast searchina (audible) To fast search backwards or forwards, 0 keep one of the < > buttons @ pressed until fast searching backwards I forwards begins. Reoeatina individual whole CDs (REPEAT) To repeat the current track, 0 briefly press button 3 (RPT) 0. “S--RPT”... -
Page 15: Pausing Playback (Pause)
CD CHANGER MODE Stopping SCAN To stop scanning, (SCAN) 0 briefly press the 2 @ again. The currently scanned track will then continue to be played normally. Note: . You can set the scanning time (scantime). For further details, read the section entitled “Setting the scantime”... -
Page 16: Displaying The Time When The Unit Is Off And The Ignition Is On
CLOCK - TIME When you have finished making your changes, MENU press the button 0. DisPlavina the time when the unit is off and the innition is on To disolav the clock when the unit is off and the ignition is on, MENU press the button 0. -
Page 17: Adjusting The Balance Settings
Adiustinn the balance settings To adjust the left/right volume distribu- tion (balance), AUDIO @ 0 keep pressing the button until “BAL” appears in the display. To move the volume distribution toward the right, 0 turn the volume control @ clock- wise. -
Page 18: Equalizer And X-Bass
Frequency ranges US: FM mono sensitivity: FM frequency response: ECU%BASS Frequency EQIX-BASS Pre-Amr> Out (not applicable to San Diego CD32) output: Subject to changes! SPECIFICATIONS 4 x 22 watts sine in accordance with DIN 45 324 at 14.4 V 4 x 50 watts max. -
Page 19: Installation Instructions
Installation instructions lnstrucciones de instalach @ A Safety precautions Installation and connection regulations In the event that this equipment is installed or repaired incorrectly, this could cause malfunctions in the vehicle electronics. - To avoid causing damage to your radio, use the corresponding Blaupunkt adapter cable to connect the 8-pin +/- IS0 plug in the vehicle. - Page 20 Supplied Mounting Hardware Materiel de montage fourni Ferreteria de montaje suministrada Elementos de fixa@o ‘ornecidos only Las Vegas CD32 Bend as many taps as possible. Plier si possible toutes les attaches. Lo ideal es poder doblar todas las bridas de sujeci6n. Devem ser dobradas o maxim0 possivel de braqadeiras.
- Page 21 * Car-specific adapter cable which is available at your dealer. Clble adaptateur specifique au vehicule, disponible dans le commerce. Adaptador especifico del vehfculo, el cual se puede adquirir en el comercio especializado. Cabo de adaptacao especifico do automovel que pode ser adquirido no comercio especializado.
- Page 22 Line Out LR 5VIlOK Line Out RR 5VilOK Line Out Masse i Ground “C Equalizer only Las Vegas CD32, Santa Fe CD32 Telefon Permanent Aut. antenna Kl.l5/lgmtion Ground Amplifier Speaker Speaker Mute Speaker Speaker +12V Speaker Speaker Speaker Speaker Changer Bus 1c-12v Changer GND Line In L 1,2V/lOK...
- Page 23 Line-Out Kabel Telephone Mute This Information IS subject to change without notice! Sous reserve de modifications! Modificaciones reservadas! Sob reserva de alteraqdes! 4 Ohm Q 4 Ohm Q 4 Ohm Q 4 Ohm...
- Page 24 Service numbers / Numkros du service apr&s-vente Nlimeros de servicio / Nlimero de serviqo Country: Phone: Germany 0180-5000225 Austria 01-610 390 Belgium 02-525 5454 Denmark 44 898 360 (FIN) Finland 09-435 991 France 01-4010 7007 Great Britain 01-89583 8880 (GR) Greece 0800550 6550 Ireland...
- Page 25 Limited Warranty (United States) Robert Bosch Corporation warrants new Blaupunkt car audio products it distributes in the United States through authorized Blaupunkt dealers, or which are imported as original vehicle equipment by the automobile manufacturer, to be free from defects in material and workmanship, in accordance with the following: For twelve (12) months after delivery to you, the original consumer purchaser, we will repair or at our option replace at no charge to you any car audio product which, under normal conditions of use and service, proves to be defective in materials or workmanship.
- Page 26 Bosch Group Warranty No __~.--. BLAUPUNKT LIMITED WARRANTY SUBJECT TO THE LIMITATIONS AND CONDITIONS (“Roben Bosch”) warrants the replacement of Blaupunkt car radto accessones, and the reperr or replacement of Blaupunkt car radros or car radio parts. whrch, under normal condrtrons of use or servtce.
- Page 27 0 BLAUPUNKZ Bosch Group Please send other correspondence Robert Bosch Corporation Sale\ Group Blaupunkt Mobile Connnunicittlonx 2800 S. 25th Ave. Broadview. IL 60153 BENEFITS PO BOX 1265 DENVER BENEFITS By completing and returning the attached Benefits Registration Card, you will receive these important l Insurance Referral - w number, and date of purchase of your new Blaupunkt radio on file to help you refer to this information in the event of an insurance claim, such as if the car is stolen.
- Page 28 Thank You For Buying BLAUPUNKE Radio! To provide you with these important benefits, YOIJ must complete this card and mail within 10 days of purchase. Insurance Referral Warranty Confirmation Ownership Registration help refine and Your responses will also enhance products marketing programs.
- Page 29 Mrs. Cl 1 1. Mr. 0 First Name: Address: (Number and Street) City: 2 Phone* Store Name: Where did you make your purchase? I, Cl Car audio store 2. 0 Automobile dealer Check the two (2) most important reasons you chose Blaupunkt over the competition: I .lJ Friend/Family recommendation Salesperson recommendation...
