Advanced LAN Configuration
Configuring other Routers on you LAN
All traffic for devices not on the local LAN must be forwarded to the XC-DPG603 so that they can be
forwarded to the Internet. This is done by configuring other Routers to use the XC-DPG603 as the Default
Route or Default Gateway, as illustrated by the example below:

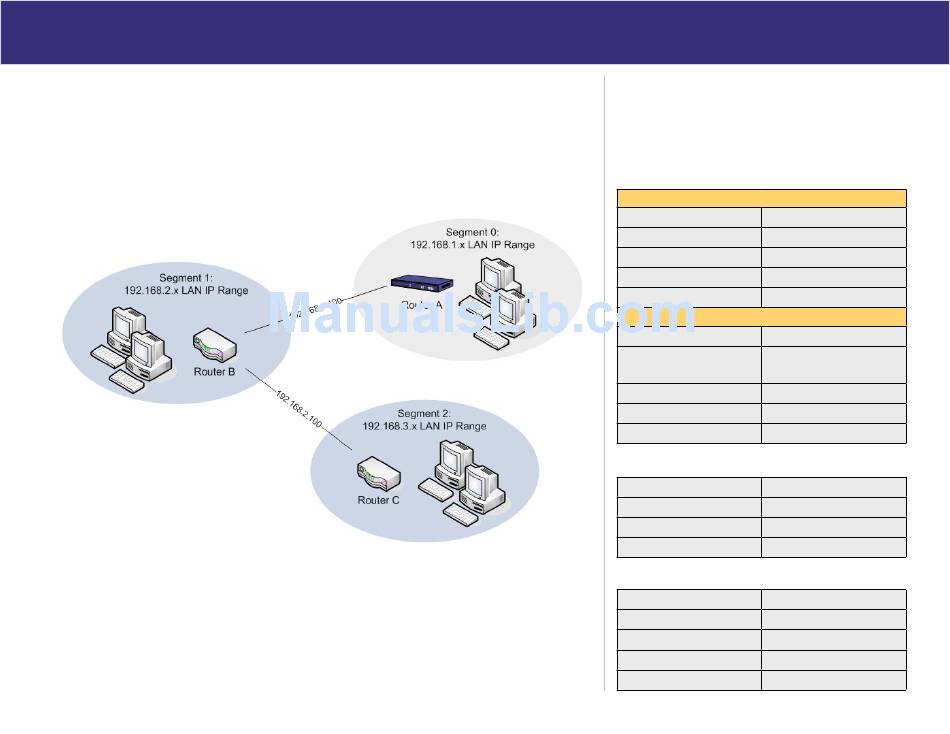

Configuration settings for the LAN shown with 2
routers and 3 LAN segments, the XC-DPG603
requires 2 entries as follows.
For the XC-DPG603 Gateway's Routing Table
Entry 1 (Segment 1)
192.168.2.0
Destination IP Address
255.255.255.0
Network Mask
192.168.1.100
Gateway IP Address
LAN
Interface
2
Metric
Entry 2 (Segment 2)
192.168.3.0
Destination IP Address
255.255.255.0 (Standard
Network Mask
Class C)
192.168.1.100
Gateway IP Address
LAN
Interface
3
Metric
For Router A's Default Route
0.0.0.0
Destination IP Address
0.0.0.0
Network Mask
192.168.1.1
Gateway IP Address
2
Metric
For Router B's Default Route
0.0.0.0
Destination IP Address
0.0.0.0
Network Mask
192.168.2.80
Gateway IP Address
LAN
Interface
3
Metric
