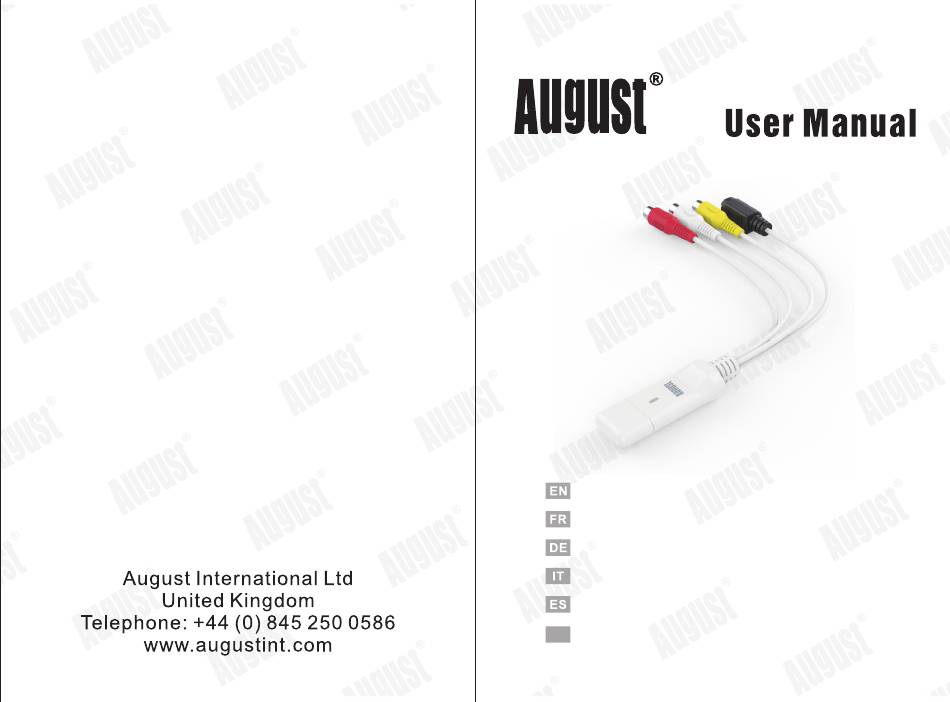

- Page 1 VGB300 USB Video Capture Card Carte de Capture Vidéo USB USB Video Capture-Karte Scheda USB di Acquisizione Video Tarjeta Capturadora de Video USB Karta przechwytująca USB...
- Page 2 1. Introduction 3. Software Installation 4. OBS 5 Troubleshooting...
- Page 3 S-Videoin The VGB300 video capture card creates digital videos on Audioin(R) Camcorder your Hard Drive. With S-Video and RGB In, you can AV Cable Audioin(L) capture and edit footage from your camcorder, VCR, DVD Videoin player and other video device. The enclosed software can convert the recorded file to FLV/ MP4/ MOV/ MKV/ TS.
- Page 4 Step 1: Download the software. Use the link below to go to the software download page of OBS (Open Broadcaster Softer). https://obsproject.com/ Click on your operating system to download the right version of the OBS. Once downloaded, run the setup application. Follow on screen instruction to complete the software installation.
- Page 5 Step 8: The OBS icon will now be on your desktop. 4. OBS Note：If you need further information, please visit the Help section on OBS’ website. 4.1 Setting To use the VGB300 in OBS, please follow steps below Step 1: Click on ‘+’ under the ‘Sources’ section.
- Page 6 Step 3: Change the device’s name or use the default name, then click on ‘OK’ to continue. Step 2: Select ‘Video Capture Device’. Note： As a few examples, select Game Capture if you're capturing a game, Window for non-game applications, or Video Capture Device for a webcam or capture card.
- Page 7 Step 7: In order to synchronize the audio and video, you need to set the video delay. Right click on "Video Capture Device" and select "Filter". In the pop-up window, click "+" and select "Video Delay (Async)". Type the name of your filter in Step 5: Select ‘AV TO USB2.0’...
- Page 8 Step 8: Enter 470ms in ‘Delay’, then press ‘Close’ to close the window. Note: you need to adjust the value according to the actual situation until you find the audio and video synchronization. Step 9: Click ‘Settings’ to open the ‘Settings’ window. Click the ‘Output’, then you can set the settings of output, such as Recording Path and Recording Format.
- Page 9 4.2 Recording Step 10: Click the ‘Audio’ or ‘Video’, then you can set the Step 1: Click on the ‘Start Recording’ to start recording. settings of Audio or Video as you need. Click ‘Ok’.
- Page 10 4.4 Quick Start Guide 4.3 Streaming Step 1: Click ‘Settings’ to open the ‘Settings’ window. Click the Step 1：Run the auto-configuration wizard ‘Streaming’, then enter according information for When you load OBS Studio for the first time you should streaming. Click on ‘OK’. see the Auto-Configuration Wizard.
- Page 11 Set ‘Base (Canvas) Resolution’ as close as possible to ‘Output (Scaled) Resolution’ in Settings -> Video. 5.3 I want use other capture software? VGB300 support mainstream capture software, such as: Potplayer, XSplit, AMCap and VLC. Refer to the relevant software instructions for specific operation methods.
- Page 12 -20- -19-...
