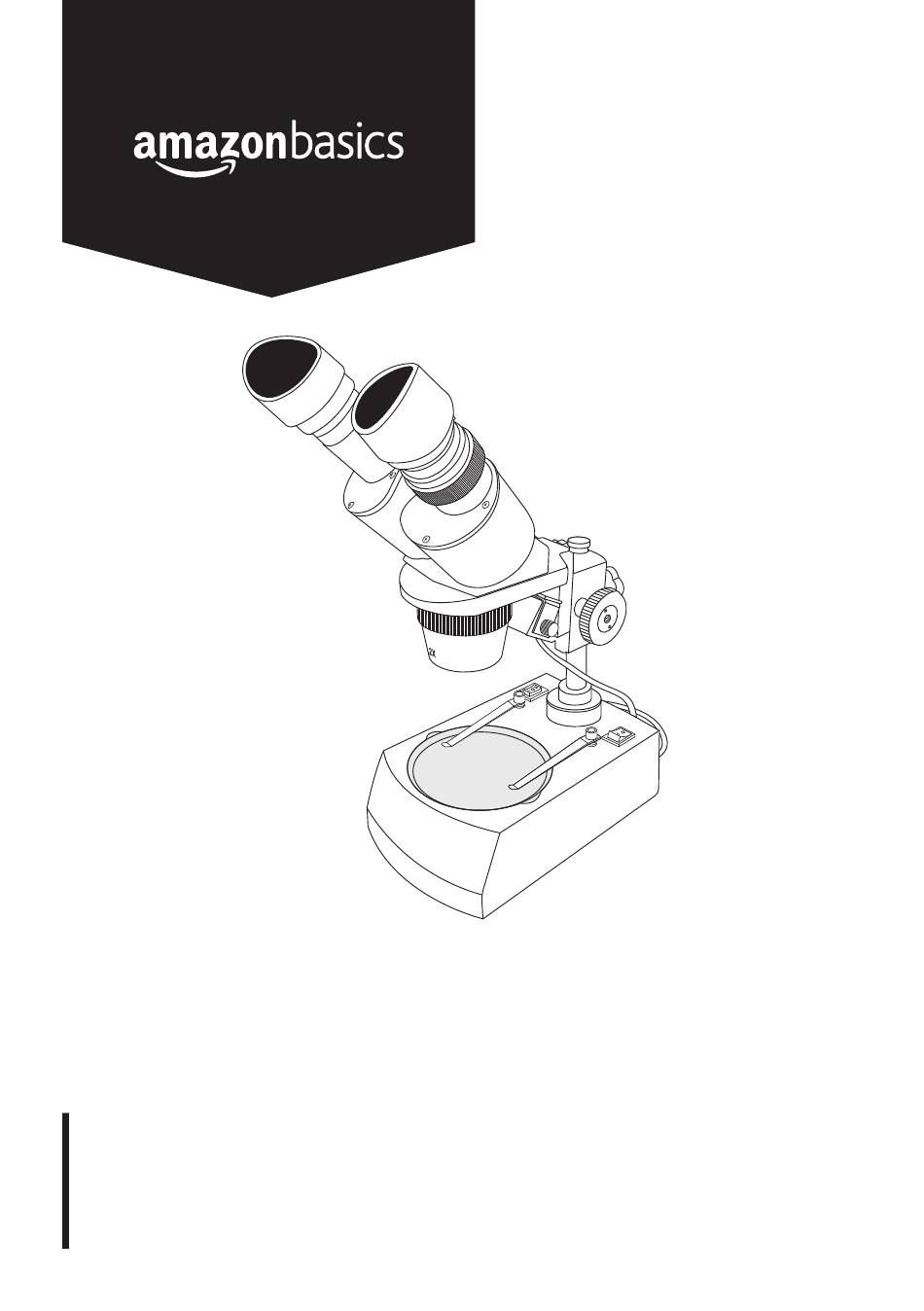

- Page 1 Forward-Mounted Binocular Stereo Microscope Microscopio Estereoscópico Binocular Frontal Microscope Stéréoscopique Binoculaire Frontal B07TSCK5VN...
- Page 2 English 4 Español 12 Français 19...
-
Page 4: Parts Description
Parts Description WF10x eyepiece x2 Focus knob Diopter adjustment Light switch Adjustable eyepiece housing Power switch Head Power socket Objective Stage clips Incident light lamp Eye cup x2 Translucent stage plate Black/white stage plate Transmitted light lamp Dust cover Base Adapter Height adjustment knob IMPORTANT SAFEGUARDS... - Page 5 First aid in case of eye contact: Immediately flush eyes with excess water for 15 minutes, lifting lower and upper eyelids occasionally. Remove contact lenses if wearing any. Get medical attention if irritation develops. First aid in case of skin contact: Immediately flush skin with excess water for 15 minutes while removing contaminated clothing.
-
Page 6: Symbols Explanation
Symbols Explanation This product is classified as protection class II. This means the product is equipped with reinforced or double insulation between the mains supply circuit and the output voltage or the casing. Therefore it does not require a safety connection to an electrical earth (ground). -
Page 7: Operation
Operation Switching on/off • Connect the adapter (S) to a power source and the other end to the power socket (N). • Flip the power switch (M) to “I” to turn on. • After use, flip the power switch (M) to “O” to turn off. Calculating magnification power Total magnification power is calculated by multiplying the magnification power of the eyepiece and the objective lens. - Page 8 • Place the eyepieces (A) into the adjustable eyepiece housing (C). NOTICE There is an option to secure the eyepieces (A), tighten the screw on the side of the adjustable eyepiece housing (C) to lock the eyepieces (A) in place. •...
-
Page 9: Cleaning And Maintenance
• Look into the right eyepiece (A), rotate the diopter adjustment (B) until the image is clear. • Look into both eyepieces (A), move around the adjustable eyepiece housing (C) until the two images merge into one. • Rotate the objective (E) to the higher magnification power. Re-adjust the focus using the focus knob (N) and the diopter adjustment (B) if needed. - Page 10 FCC – Supplier’s Declaration of Conformity B07TVHLY4C-All-Metal Optical Unique Identifier Glass Lenses Cordless LED Student Biological Compound Microscope Responsible Party Amazon.com Services, Inc U.S. Contact Information 410 Terry Ave N. Seattle, WA 98109, United States Telephone Number (206) 266-1000 FCC Compliance Statement 1.
-
Page 11: Specifications
Love it? Hate it? Let us know with a customer review. AmazonBasics is committed to delivering customer-driven products that live up to your high standards. We encourage you to write a review sharing your experiences with the product. amazon.com/review/review‑your‑purchases# amazon.com/gp/help/customer/contact‑us... - Page 12 MADE IN CHINA HECHO EN CHINA FABRIQUÉ EN CHINE V01-08/19...
