Johnson Controls MM9E Series User's Information Manual

USER'S INFORMATION MANUAL

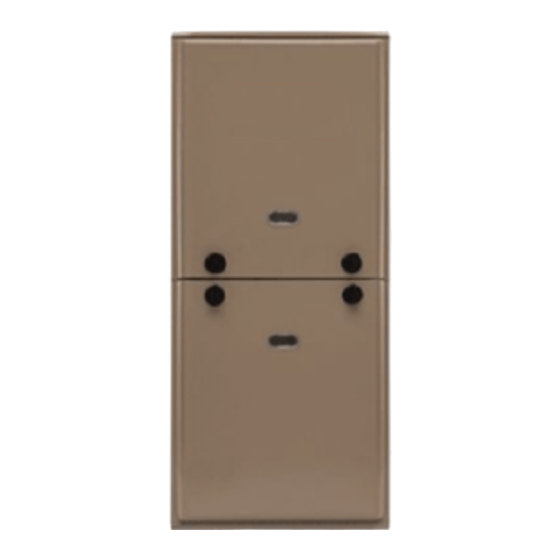

33" MULTI-POSITION GAS FURNACES
(Manufactured Housing or
Modular Home Applications)
MODELS: MM9E AND MG9S SERIES
CONTACT INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
SAFETY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
INSTRUCTIONS FOR EXAMINING THE FURNACE
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
START-UP AND SHUTDOWN INSTRUCTIONS . . . . . . . . . . . . . . . . 3
HOW YOUR GAS FURNACE WORKS . . . . . . . . . . . . . . . . . . . . . . 3
OPERATING INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
TO TURN OFF THE APPLIANCE . . . . . . . . . . . . . . . . . . . . . . . . . . 3
FURNACE MAINTENANCE - USER INFORMATION . . . . . . . . . . . . 4
EXTERNAL AIR FILTERS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

CONTACT INFORMATION

• Go to the website at www.york.com, click Contact Us, and
follow the instructions.
• Contact us by mail:
Read all sections of this manual and keep the manual for
future reference.
WARNING
!
Cancer and Reproductive Harm - www.P65Warnings.ca.gov
SECTION I: SAFETY
WARNING
!
FIRE OR EXPLOSION HAZARD - Failure to follow safety warnings
exactly could result in serious injury, death, or property damage.
- Do not store or use gasoline or other flammable vapors and liq-
uids in the vicinity of this or any other appliance.
- WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone (includ-
ing cell phone) in your building.
• Leave the building immediately.
• Immediately call your gas supplier from a neighbor's phone. Fol-
low the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire department.
- Installation and service must be performed by a qualified installer,
service agency or the gas supplier.
This is a safety alert symbol. When you see this symbol on
labels or in manuals, be alert to the potential for personal
injury.
Understand and pay particular attention to the signal words DANGER,
WARNING, or CAUTION.
DANGER indicates an imminently hazardous situation, which, if not
avoided, will result in death or serious injury.
WARNING indicates a potentially hazardous situation, which, if not
avoided, could result in death or serious injury.
CAUTION indicates a potentially hazardous situation, which, if not
avoided may result in minor or moderate injury. It is also used to alert
against unsafe practices and hazards involving only property damage.

TABLE OF CONTENTS

BLOWER CARE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
MOTOR LUBRICATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
SERVICE INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
TROUBLESHOOTING PROBLEMS . . . . . . . . . . . . . . . . . . . . . . . . .5
FURNACE CONTROL DIAGNOSTICS . . . . . . . . . . . . . . . . . . . . . .5
FURNACE MAINTENANCE - DEALER/CONTACTOR . . . . . . . . . .5
REPLACEMENT PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
WIRING DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
• The furnace area must be kept clear and free of combustible
materials, gasoline, and other flammable vapors and liquids.
• Insulating materials may be combustible. The furnace must be
kept free and clear of insulating materials. The furnace area must
be examined when installed in an attic or other insulated space or
when insulation is added to ensure the insulation material has
been kept away from the furnace.
• The furnace needs air for combustion to operate properly and
safely. Do not block or obstruct air openings on the furnace, air
openings to the area where the furnace is installed, or spaces
around the furnace.
• Follow the instructions exactly as shown on the OPERATING
INSTRUCTION LABEL on the furnace or in SECTION III: START-
UP AND SHUTDOWN INSTRUCTIONS of this manual when
lighting the furnace or turning the furnace off.
• If the gas supply fails to shut off or if overheating occurs, shut off
the gas valve to the furnace before shutting off the electrical sup-
ply.
• Do not use this furnace if any part has been under water. A flood-
damaged furnace is extremely dangerous. Attempts to use the fur-
nace can result in fire or explosion. A qualified service agency
must be contacted to inspect the furnace and replace all gas con-
trols, control system parts, and electrical parts that have been wet,
or the furnace if deemed necessary.
• NEVER store flammable materials of any kind near your furnace.
Gasoline, solvents, and other volatile liquids must only be stored
in approved containers outside your home. These materials
vaporize easily and are extremely dangerous.
• NEVER store cleaning materials near your furnace. Materials
such as bleaches, detergents, and powdered cleansers can cause
corrosion of the heat exchangers.
• NEVER use the area around your furnace as a storage area for
items that could block the normal flow of air. This flow of air is
required for ventilation of the various furnace components.
Johnson Controls Ducted Systems
Consumer Relations
5005 York Drive
Norman, OK 73069
5165698-UUM-C-0519
