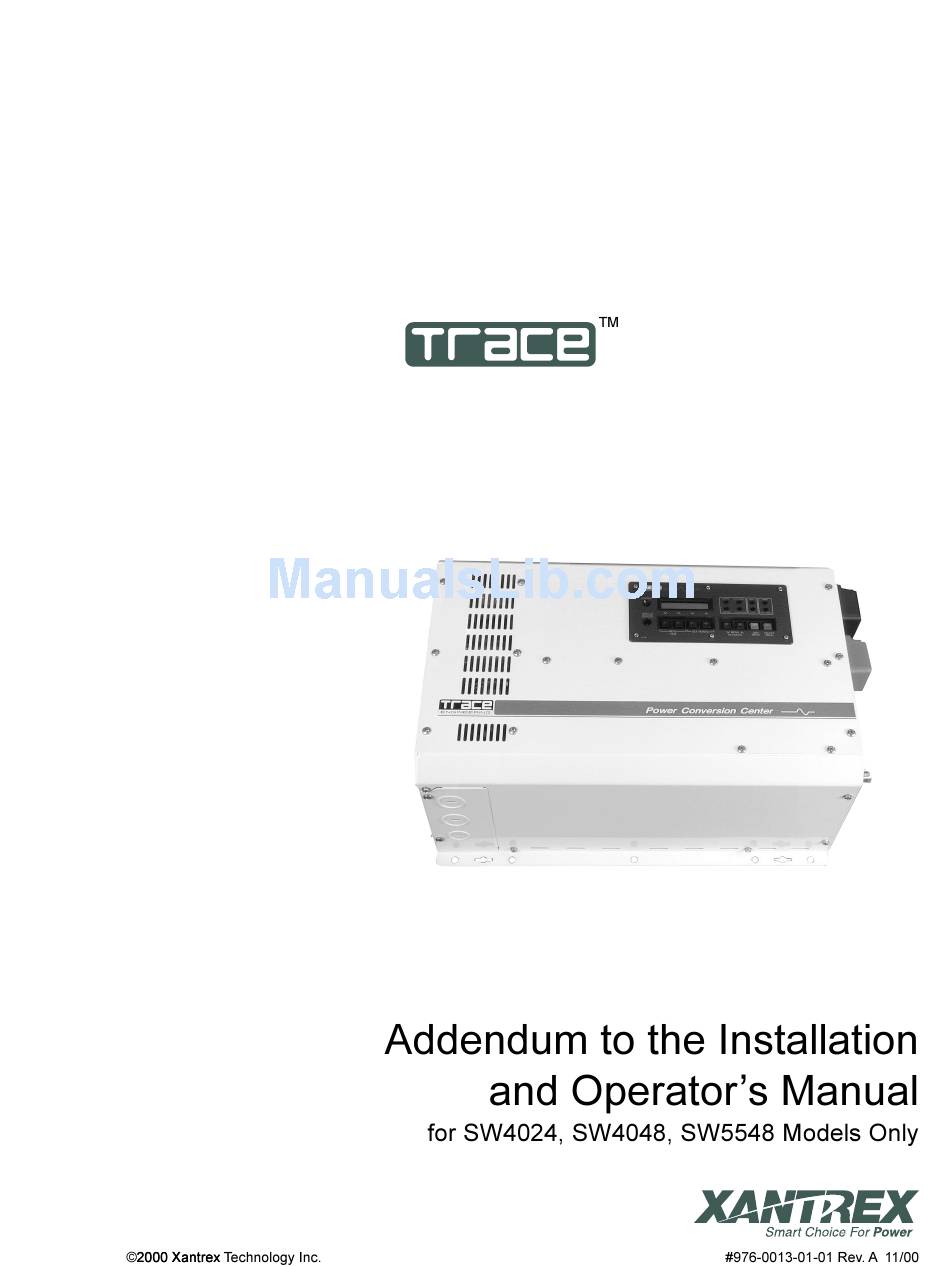

- Page 1 SW Series ã...
- Page 3 Fixed 106–132 VAC when SELL mode is AC Voltage Window engaged (AC1 input only). Adjustable for all other modes. 59.3–60.5 Hz in SELL mode (AC1 input only), Frequency Window 54–66 Hz for all other modes. SET MAX SELL AMPS Default 33 A SET MAX CHARGE AMPS Default 30 A TRACE ENGINEERING 3...
- Page 4 OPERATING FREQUENCY RANGE (AC1): 59.3-60.5 HZ MAX UTILITY AC BACKFEED CURRENT: 0 AMPS AC MAX CONTINUOUS AC OUTPUT POWER: 4000 VA OPERATING POWER FACTOR: 0.9 TO 1.0 XANTREX TECHNOLOGY - USA PATENT No. 5,373,433 5916 195TH ST. N.E. ARLINGTON, WA. 98223 USA www.traceengineering.com QUARTER...
- Page 6 VOLTAGE Voltage < 60 V (< 50%) Voltages between 60–106 V (50–88%) Voltages between 106–132 V (88–110%) Voltages between 132–165 V (110–137%) Voltage >165 V (137%) FREQUENCY Frequency < 59.3 Hz Frequency > 60.5 Hz MAXIMUM TRIP TIME* 6 cycles 120 cycles Normal operation 120 cycles...
