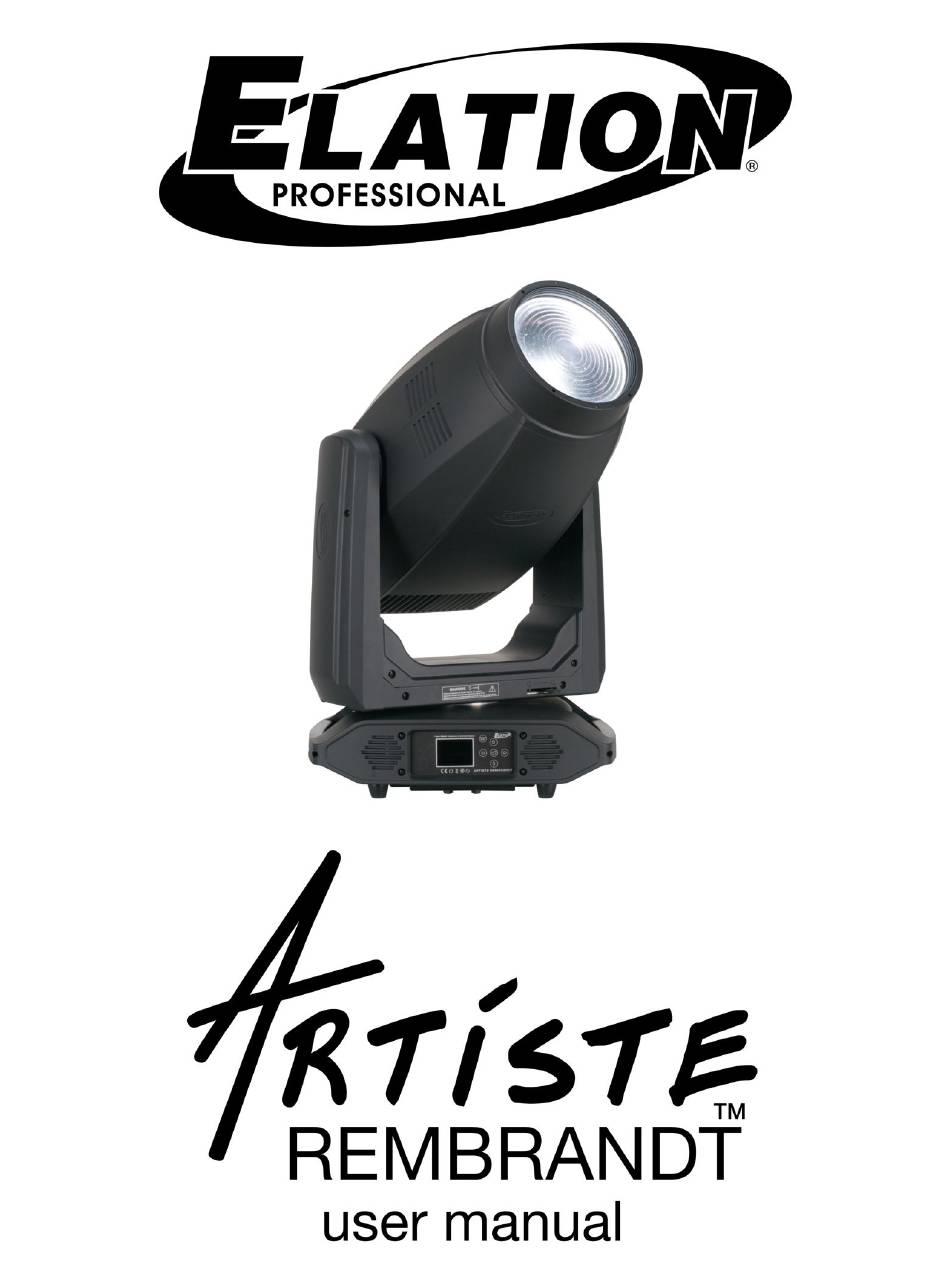

Elation Artiste REMBRANDT User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Summary of Contents for Elation Artiste REMBRANDT

  • Page 2 Elation Professional B.V. | Junostraat 2 | 6468 EW Kerkrade, The Netherlands +31 45 546 85 66 | +31 45 546 85 96 fax | www.elationlighting.eu | info@elationlighting.eu Elation Professional Mexico | AV Santa Ana 30 | Parque Industrial Lerma, Lerma, Mexico 52000 +52 (728) 282-7070...

  • Page 3: Table Of Contents

    C O N T E N T S General Information Warranty Returns (USA Only) Safety Guidelines Maintenance Guidelines Fixture Overview Colors & Animation Wheel SpectraColor Guide Fan Modes and Low Noise Operation Lens Installation / Replacement Installation Guidelines System Menu DMX Channel Functions and Values Error Codes Specifications...

  • Page 4: General Information

    Fresnel Lens (installed) Omega Brackets (x2) Locking Power Cable CUSTOMER SUPPORT Contact ELATION Service for any product related service and support needs. Also visit forums.elationlighting.com with questions, comments or suggestions. ELATION SERVICE USA - Monday - Friday 8:00am to 4:30pm PST 323-582-3322 | Fax 323-832-9142 | support@elationlighting.com...

  • Page 5: Warranty Returns (Usa Only)

    Elation Professional concludes, after inspection, affects the reliability of the product; if the product has been repaired or serviced by anyone other than the Elation Professional factory unless prior written authorization was issued to purchaser by Elation Professional; if the product is damaged because not properly maintained as set forth in the product instructions, guidelines and/or user manual.

  • Page 6: Safety Guidelines

    This fixture is a sophisticated piece of electronic equipment. To guarantee a smooth operation, it is important to follow all instructions and guidelines in this manual. Elation Professional is not responsible for injury and/or damages resulting from the misuse of this fixture due to the disregard of the information printed in this manual.
  • Page 7 S A F E T Y G U I D E L I N E S 94 lbs. (42.6kg) RISK GROUP 3 - RISK OF EXPOSURE TO ULTRAVIOLET UV RADIATION! FIXTURE EMITS HIGH INTENSITY WAVELENGTH OF ULTRAVIOLET UV LIGHT FROM THE UV COLOR FILTER. WEAR PROPER EYE AND SKIN PROTECTION.

  • Page 8: Maintenance Guidelines

    Regular inspections are recommended to insure proper function and extended life. There are no user serviceable parts inside this fixture, please refer all other service issues to an authorized Elation service technician. Should you need any spare parts, please order genuine parts from your local Elation dealer.

  • Page 9: Fixture Overview

    F I X T U R E O V E R V I E W Lens (Fresnel Lens included, optional PC Lens available) Tilt Lock System Menu Display MODE/ESC Button LEFT Button ENTER Button DOWN Button RIGHT Button UP Button 10.
  • Page 10 DMX Controllable Variable Fan Modes / Low Noise Operation Zoom / Focus Optimization The Artiste Rembrandt utilizes a zoom and focus lens to control the beam. For highest efficiency, the fixture contains an algorithm that automatically adjusts the focus lens to its ideal position in relationship to the zoom lens.

  • Page 11: Colors & Animation Wheel

    COLOR WHEEL BI-DIRECTIONAL ANIMATION WHEEL The Artiste Rembrandt incorporates an innovative wash texture concept that gives the designer new tools to wash stages while providing soft textures and depth. Two animation wheels, one Dot and one Radial, allow for independent directional motion, including overlapping and counter-rotating motion effects that are unique to the fixture.

  • Page 12: Spectracolor Guide

    S P E C T R A C O L O R G U I D E The Rembrandt’s innovative SpectraColor system combines the established and well known CMY / CTO controls with three Pure RGB flags that are seamlessly adjustable. These flags greatly enhance the possible color range of the Rembrandt for some truly outstanding colors that can be difficult to achieve with only CMY controls.

  • Page 13: Fan Modes And Low Noise Operation

    F A N M O D E S a n d L O W N O I S E O P E R A T I O N The Artiste Rembrandt is a high-performance fixture suited for many applications. For noise critical environments like Theater, Opera or Orchestra Halls, it offers various operation modes to remove any distraction for the audience and performers.

  • Page 14: Lens Installation / Replacement

    L E N S I N S T A L L A T I O N / R E P L A C E M E N T FRESNEL LENS INSTALLATION (4x) integrated M3 Hex Head Lens Assembly screws Align notch with the integrated Fasten Lens Assembly Safety Cable Tighten (4x) screws...

  • Page 15: Installation Guidelines

    I N S T A L L A T I O N G U I D E L I N E S FLAMMABLE MATERIAL WARNING Keep fixture minimum 5.0 feet (1.5m) away from flammable materials and/or pyrotechnics. ELECTRICAL CONNECTIONS A qualified electrician should be used for all electrical connections and/or installations. USE CAUTION WHEN POWER LINKING OTHER MODEL FIXTURES AS THE POWER CONSUMPTION OF OTHER MODEL FIXTURES MAY EXCEED THE MAX POWER OUTPUT ON THIS FIXTURE.
  • Page 16 I N S T A L L A T I O N G U I D E L I N E S OMEGA BRACKETS INSTALLATION Insert the Omega Brackets into the matching holes on the bottom of the fixture. Secure the Omega Brackets to the fixture by turning each quick-lock fastener ¼...
  • Page 17 LEDs. This issue is not specific to ELATION lighting fixtures, it is a common issue with lighting fixtures from all manufacturers. Although there is no true way to fully prevent this issue from happening, the following guidelines can prevent any potential damage from occurring if followed.

  • Page 18: System Menu

    S Y S T E M M E N U The fixture includes an easy to navigate system menu. The control panel (see image below) located on the front of the fixture, provides access to the main system menu and is where all necessary system adjustments are made to the fixture.
  • Page 19 ELATION ARTISTE REMBRANDT™ S Y S T E M M E N U Supports Software Versions: ≥ 1.1.1 Features subject to change without notice. *Rotation direction (Clockwise/Counterclockwise) and control of effects depends on head orientation and Pan/Tilt settings. MAIN MENU...
  • Page 20 ELATION ARTISTE REMBRANDT™ S Y S T E M M E N U Supports Software Versions: ≥ 1.3.0 Features subject to change without notice. *Rotation direction (Clockwise/Counterclockwise) and control of effects depends on head orientation and Pan/Tilt settings. MAIN MENU...
  • Page 21 S Y S T E M M E N U FUNCTION – Auto Program Define fixture mode (Master or Alone) for running Auto Programs. Select desired internal programs under “Select Program,” set the number of steps under “Edit program,” and edit individual scenes under “Edit Scenes.”...
  • Page 22 FIXTURE SOFTWARE CAN NOT BE DOWNGRADED! DOWNLOAD FIXTURE SOFTWARE TO PC ONLY! (NO MAC SUPPORT) PLEASE CONTACT ELATION SERVICE FOR FURTHER INFORMATION. 1. Copy fixture software update file from a PC computer to a compatible USB flash drive. Make sure only the fixture software update file is stored on the USB flash drive.
  • Page 23 PERSONALITY - Reset Default (011) ONLY QUALIFIED TECHNICIANS SHOULD PERFORM THIS FUNCTION! SAVED WHITE BALANCE IS ERASED AFTER RESET IS PERFORMED. This function restores all fixture settings to the factory default settings. The password is 011 and must be entered each time a reset is performed. EFFECT ADJUST –...
  • Page 24 S Y S T E M M E N U EDIT PROGRAM – Record Controller – Working with Built-In Program [continued] To start an Auto Program, proceed as follows: 1. Slave Setting Select “Function Mode”. Press ENTER to confirm. Select “Set to Slave”. Press ENTER to confirm.
  • Page 25 S Y S T E M M E N U EDIT PROGRAM – Record Controller – Working with Built-In Program [continued] 5. Automatic Scene Recording Select “Edit Program”. Press ENTER to confirm. Select “Edit Scenes”. Select desired scene numbers. A maximum of 250 scenes can be programmed. Press ENTER to confirm.

  • Page 26: Dmx Channel Functions And Values

    D M X C H A N N E L F U N C T I O N S A N D V A L U E S ELATION ARTISTE REMBRANDT™ DMX Channel Values / Functions (35/59 Total DMX Channels) Supports Software Versions: ≥...
  • Page 27 Standard Extended Value Function Hold Time Default Snap Color Wheel: Open 0-15 20-37 Green 38-55 56-73 HCRI 74-91 Amber 92-109 Medium Blue 110-127 Clockwise effect from fast to slow 128-189 No rotation 190-193 Counter-clockwise effect from slow to fast 194-255 Color Wheel Fine: 0-255 Fine Control of Color Wheel position...
  • Page 28 Standard Extended Value Function Hold Time Default Snap 0-20 Dim Modes 21-40 Standard 41-60 Stage 61-80 81-100 Architectural 101- 120 Theatre Stage 2 Dimmer Delay Time 0.1s 0.2s 0.3s 0.4s 0.5s 0.6s 0.7s 0.8s 0.9s 1.0s 1.5s 2.0s 3.0s 4.0s 5.0s 6.0s 7.0s...
  • Page 29 Standard Extended Value Function Hold Time Default Snap Animation wheel2: Open 8-255 Animation min. to max. Animation index, animation rotation2: 0-127 Animation indexing 128-189 Clockwise animation rotation from fast to slow 190-193 No rotation 194-255 Counter-clockwise animation rotation from slow to fast Speed Of CMY &...
  • Page 30 Standard Extended Value Function Hold Time Default Snap Blade 1A 0-255 Open to Close Blade 1A Fine 0-255 Open to Close Fine Blade 1B 0-255 Open to Close Blade 1B Fine 0-255 Open to Close Fine Blade 2A 0-255 Open to Close Blade 2A Fine 0-255 Open to Close Fine...
  • Page 31 Standard Extended Value Function Hold Time Default Snap Framing Macro: 8-15 Macro1 16-23 Macro2 24-31 Macro3 32-39 Macro4 40-47 Macro5 48-55 Macro6 56-63 Macro7 64-71 Macro8 72-79 Macro9 80-87 Macro10 88-95 Macro11 96-103 Macro12 104-111 Macro13 112-119 Macro14 120-127 Macro15 128-135 Macro16 136-143...
  • Page 32 Standard Extended Value Function Hold Time Default Snap Control: 0-19 Color change normal 20-29 Color change to any position 30-39 Color & gobo change to any position 40-44 Low Noise - Mute 45-49 Low Noise - Studio 50-59 Fan Control - Low 60-69 Fan Control - High 70-79...
  • Page 33 Standard Extended Value Function Hold Time Default Snap 1130 1140 1150 1160 1170 1180 1190 1200 1210 1220 1230 1240 1250 1260 1270 1280 1290 1300 1310 1320 1330 1340 1350 1360 1370 1380 1390 1400 1410 1420 1430 1440 1450 1460 1470...
  • Page 34 Standard Extended Value Function Hold Time Default Snap 2500 4000 5000 6000 10000 15000 20000 25000 169-170 Focus Tracking Fresnel (default) 171-172 Focus Tracking PC 173-176 Idle 177-178 Hibernation OFF 179-180 Hibernation ON 181-190 Smooth mode(Pan/Tilt break)(default) 191-200 Fast mode(Pan/Tilt break) 201-210 Dimmer Curve Linear (default) 211-220...

  • Page 35: Error Codes

    E R R O R C O D E S When power is applied, the unit will automatically enter a “Reset/Test” mode. This mode brings all the internal motors to a home position. If there is an internal problem with one or more of the motors an error code will flash in the display in the form of “XXer”...

  • Page 36: Specifications

    S P E C I F I C A T I O N S SOURCE 950W 6,500K Bright White LED Engine 30,000 Hour Average LED Life* *May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming. PHOTOMETRIC DATA 51,000 Total Lumen Fixture Output CRI 72+ (85+ with HCRI filter)

  • Page 37: Dimensional Drawings

    D I M E N S I O N A L D R A W I N G S W / F R E S N E L L E N S Specifications and improvements in the design of this unit and this manual are subject to change without notice.
  • Page 38 D I M E N S I O N A L D R A W I N G S W / P C L E N S ( O P T I O N A L ) Specifications and improvements in the design of this unit and this manual are subject to change without notice.

  • Page 39: Optional Accessories

    O P T I O N A L A C C E S S O R I E S SKU (EU) SKU (USA) ITEM ARPCL1 1237000248 PC Lens TRIGGER CLAMP Heavy Duty Wrap Around Hook Style Clamp AC5PDMX5PRO 5 ft. (1.5m) 5pin PRO DMX Cable CAT6PRO5 5 ft.
