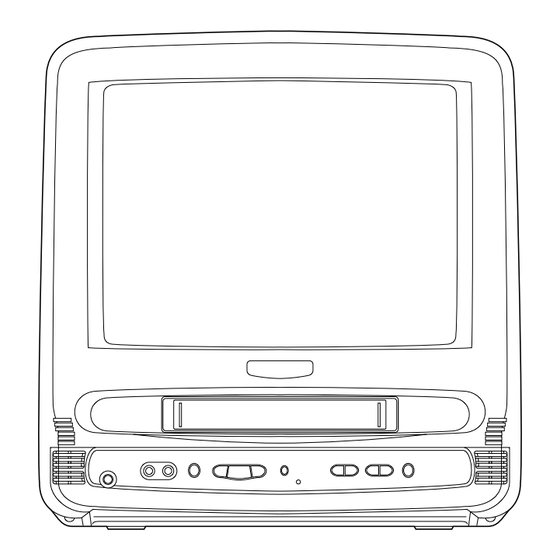

- Page 1 White-Westinghouse OWNER'S MANUAL 13-INCH COLOR TV/VCR PLEASE READ BEFORE OPERATING THIS EQUIPMENT Model: WTV11321B...
-
Page 2: C Important Safeguards
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. - Page 3 EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECT RICAL CODE NEC - NATI O NAL EL ECTRI CAL CO DE S2 8 9 8 A 13.Outdoor Antenna grounding-If an outside antenna or cable system is connected to the TV/VCR, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges.
-
Page 4: C Precautions
LOCATION For safe operation and satisfactory performance of your TV/VCR, keep the following in mind when selecting a place for its installation: • Shield it from direct sunlight and keep it away from sources of intense heat. • Avoid dusty or humid places. •... -
Page 5: Table Of Contents
C IMPORTANT SAFEGUARDS ... . .2 C PRECAUTIONS ......4 C FEATURES . -
Page 6: C Features
• Infrared remote control • Bilingual on screen menu display selectable in English or Spanish • This shows the elapsed record- Real time counter– ing or playback time in hours, minutes, and sec- onds. The “–” indication will appear when the tape is rewound further than the tape counter position “0:00:00”. -
Page 7: Operating Controls And Functions
OPERATING CONTROLS AND FUNCTIONS - TV/VCR FRONT PANEL - AUDIO VIDEO EARPHONE 2 3 4 5 6 7 8 - REMOTE CONTROL - WAKE-UP POWER /SLEEP +100 MENU DISPLAY MUTE PLAY STOP RECORD SPEED T-PROG. GAME CLEAR COUNTER RESET STOP/EJECT PLAY F.FWDq REC/OTR... - Page 8 - REAR VIEW - Press to rapidly advance the tape, F.FWD button– or to view the picture rapidly in forward during playback mode. (Forward Search) button– • When setting program (for example: setting clock or timer program), press to determine your selec- tion and proceed to the next step you want to input.
-
Page 9: C Preparation For Use
PREPARATION FOR USE ANTENNA/CABLE CONNECTIONS From Cable System or Satellite Dish Satellite Box or Cable Box O UT (Not supplied) From Cable System 75-ohm Coaxial Cable (Not supplied) VHF/UHF COMBINED ANTENNA The VHF/UHF Rod Antenna (supplied) is detach- able. Insert the stem of the antenna into the hole on the upper-back portion of the TV/VCR.Connect the VHF/UHF Rod Antenna or VHF/UHF Combination Antenna to the ANT. -
Page 10: External Input Mode
TO RECORD A SCRAMBLED/UNSCRAMBLED CHANNEL 1) Set the TV/VCR channel selector to the output channel of the Cable Converter Box or Satellite Box. (Example: CH3) 2) Select the channel to record from your Cable Converter Box or Satellite Box. EXTERNAL INPUT MODE When using an external input signal (another VCR or video camera), connect the player’s audio/video out- put cables to the AUDIO IN/ VIDEO IN jacks of... -
Page 11: Clock Set Up (Auto / Manual)
TO SELECT A DESIRED CHANNEL You can select the desired channel by using the CHANNEL K or L button or directly pressing the number buttons on the remote control. Note for using the number buttons: • When selecting cable channels which are higher than 99, press the +100 button first, then, press the last two digts. -
Page 12: Channel Set Up Again
Select “SETTING CLOCK” Press the MENU button on the remote control. Press the PLAY/K or STOP/L button to point to “SET- TING CLOCK”. Then, press the F.FWD/B button. Select “MANUAL CLOCK SET” Press the PLAY/K or STOP/L but- ton to point to “MANUAL CLOCK SET”. -
Page 13: Selecting The Language
Select “CHANNEL SET UP” Press the MENU button on the remote control. Press the PLAY/K or STOP/L but- ton to point to “CHANNEL SET UP”. Then, press the F.FWD/B button. Select “ADD/DELETE CH” Press the PLAY/K or STOP/L but- ton to point to “ADD/DELETE CH”. -
Page 14: C Tv Operation
WATCHING A TV PROGRAM Turn on the TV/VCR Press the POWER button to turn on the TV/VCR. Select the channel number Press the CHANNEL K or L button to select your desired channel number or press the number buttons on the remote control. Remember: If the TV/VCR is connected to a cable box or satellite box, the TV/VCR must be on CH3 or CH4, then the channel to be viewed must be selected... -
Page 15: Closed Caption System
CLOSED CAPTION SYSTEM You can view specially labeled (cc) TV programs, movies, news, pre-recorded tapes with either a dia- logue caption or text display. CAPTION mode: By choosing the caption mode, you can watch dramas, movies and news while captioning the dialogues and the contents of news. -
Page 16: Mpaa Rating Set Up
Select your desired item Press the PLAY/K or STOP/L but- ton to point to your desired item. Then, press the F.FWD/B button to select [BLOCK] or [VIEW]. • When you select the rating category and turn it [BLOCK], the higher rating will turn [BLOCK] automatically. -
Page 17: C Playback
This TV/VCR will operate with any cassette that has the recommend the use of high-quality tapes. Do not use poor quality or damaged tapes. INSERTING A CASSETTE Insert the cassette in the direction as shown. Push in gently, but continuously, on the center-back of the cassette until it is drawn into the TV/VCR. -
Page 18: Search
SEARCH PICTURE SEARCH This feature is very useful in finding or skipping over a particular scene on a tape. In this mode, the sound will be muted. 1)You may view a video tape at a high speed in either a forward or reverse direction by pressing the F.FWD or REW button during playback (in the SP / LP / SLP modes). -
Page 19: Noise Cancel (In The Still Mode)
NOISE CANCEL (in the Still mode) This feature allows you to reposition or reduce the noise lines of a still picture. Press the PAUSE/STILL button so that the noise lines change position on the screen so you can see the picture in its entirety with- out distracting noise lines. -
Page 20: Normal Recording
Make sure ... • TV/VCR power is turned on. • Insert a cassette tape with its erase prevention tab in place. (If necessary, rewind or fast forward the tape to the point at which you want to begin recording.) NOTE: This unit will ONLY record and view the same channel. NORMAL RECORDING You can ONLY watch the same TV program that is being recorded. -
Page 21: Timer Recording
Begin OTR Press the REC/OTR button on the TV/VCR as many times as needed. The recording length will be deter- mined by the number of times you press the REC/OTR button. Each additional push will increase the recording time by 30 minutes. -
Page 22: Timer Program Extension
the same time on the same channel every day. (Example: Monday through Sunday) Press the STOP/L (down) but- ton until “EVRY DAY” appears. Then, press the F.FWD/B but- ton. For weekly recording : To record a TV program at the same time on the same channel every week. (Example: every Monday) Press the STOP/L (down) button until “EVRY”... -
Page 23: Hints For Automatic Timer Recording
TO CANCEL AN AUTOMATIC TIMER RECORDING • After setting a program; 1)Press the POWER button. 2)Repeat steps [1] ~ [2] under TIMER RECORD- ING, page 21, and select a program you want to cancel. 3)Press the T-PROG. CLEAR button. 4)Press the MENU button on the remote control to return to TV mode. -
Page 24: Sleep Timer
Select “TV” or “TAPE” Press the PLAY/K or STOP/L but- ton until it points to “TV/TAPE”. Press the F.FWD/B or REW/s button, and select [TV] or [TAPE]. Set wake up time Press the PLAY/K or STOP/L but- ton until it points to “TIME”. Press the F.FWD/B or REW/s button until your desired wake up time appears. -
Page 25: C On Screen Display
To check the Counter, Clock and Channel number on the TV screen, press the DISPLAY button on the remote control. Each time you press the DISPLAY button on the remote control, the TV screen will change as follows: WHEN THE CLOSED CAPTION MODE IS OFF: •... -
Page 26: C Troubleshooting Guide
TROUBLESHOOTING GUIDE If you have followed the instructions contained in this manual and have difficulty in operating your TV/VCR, locate the PROBLEM in the left column below. Check the corresponding CORRECTIVE ACTION column to remedy the problem. PROBLEM No power. No picture and sound. -
Page 27: C Specifications
GENERAL SPECIFICATIONS CRT : 13 inch in-line gun, 90˚ deflection tube Television system : NTSC-M Closed caption system :§15.119/FCC Video Heads : Rotary two-head Tape width : 1/2 inch Tape speed SP : 33.40mm/sec. LP : 16.67mm/sec. SLP : 11.12mm/sec. Tuner channel TV VHF Low : #2~#6... -
Page 28: Panel Delantero
CONTROLES DE OPERACIÓN Y SUS FUNCIONES ......28 CONEXIONES DE ANTENA/CABLE ..30 MODO DE ENTRADA EXTERNA . -
Page 29: Panel Trasero
- PANEL TRASERO - 6 Botón de reproducción (PLAY)– Púlselo para ini- ciar la reproducción. Botón K– • Púlselo para seleccionar los modos de ajuste desde el menúde la pantalla. • Púlselo para introducir dígitos cuando establezca un programa. (Por ejemplo: Para ajustar el reloj o establecer un pro- grama de temporizador) 7 Botón de avance rápido (F.FWD)–... - Page 30 Desde el cable coaxial o caja de emisiones vía Caja de CATV satélite de 75 ohm del o caja de emi- sistema de Cable siones vía satélite (no incluído) O UT Desde el sistema de Cable Cable coaxial de 75 ohm (no incluído) ANTENA COMBINADA DE VHF/UHF La antena de varilla de VHF/UHF (incluído) es desmontable.
- Page 31 PREPARACIÓN DE CANALES POR PRIMERA VEZ 1) Enchufe el cable de alimentación del televisor/videograbadora en una toma de CA estándar. NOTA: Si aparezcan algunos digitos en el rincón de la pantalla, pulse el botón POWER sin desenchufar el cable de alimentación. 2) Pulse el botón POWER para encender el televisor/videograbadora.
- Page 32 WHITE-WESTINGHOUSE™ will repair this product, free of charge in the USA in the event of defect in materials or workmanship as follows: DURATION: PARTS: WHITE-WESTINGHOUSE™ will provide parts to replace defective parts without charge for one (1) year from the date of original retail purchase.
