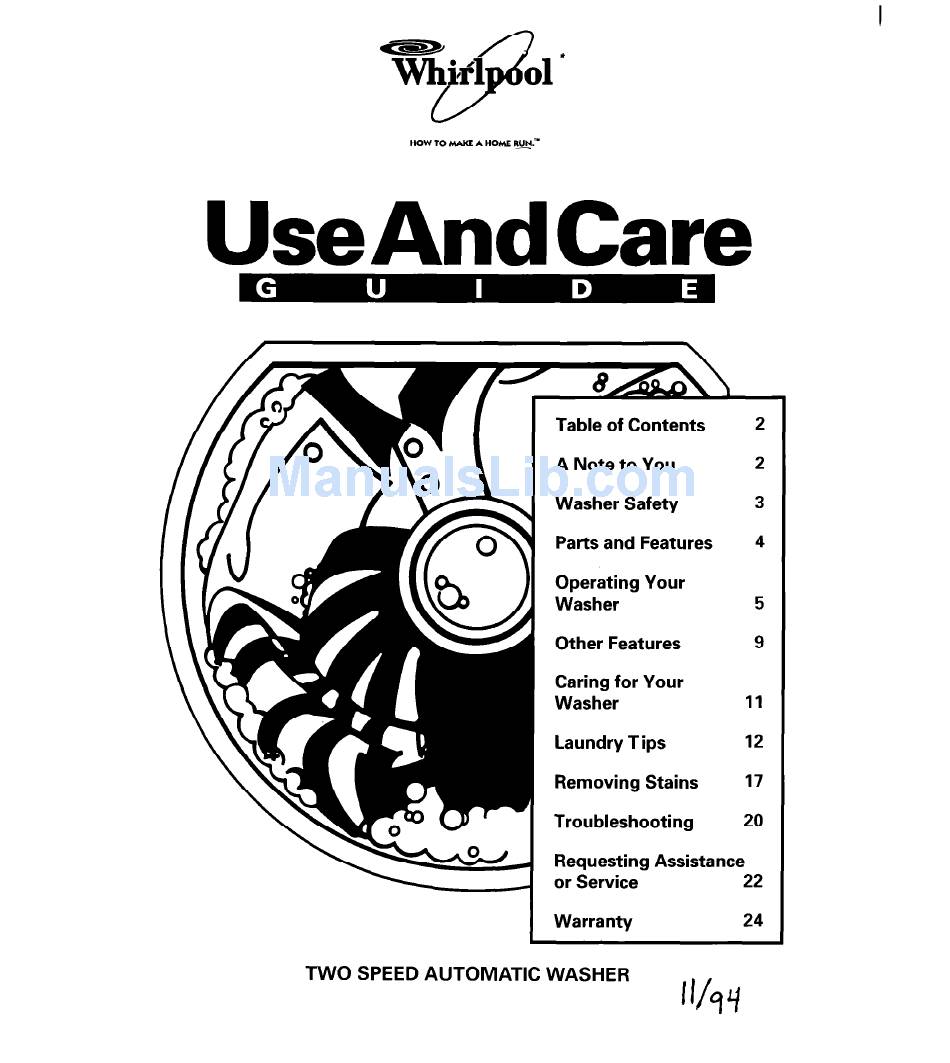

HOW TO MAKE A HOME RUN.” UseAndCare TWO SPEED AUTOMATIC Table of Contents A Note to You Washer Safety Parts and Features Operating Your Washer Other Features Caring for Your Washer Laundry Tips Removing Stains Troubleshooting Requesting Assistance or Service Warranty WASHER I’/,y...
Removing stains..Stain removal rules..Stain removal guide..Troubleshooting or Service ..22 Requesting Assistance Warranty ... Whirlpool washers are easy to use, model’s information. Model Number Serial Number Purchase Date Dealer Name Dealer Address Dealer Phone...
Washer Safety Your safety is important to us. This guide contains safety statements under warning symbols. Please pay special attention to these symbols and follow any instructions given. Here is a brief explanation of the symbol. IMPORTANT SAFETY To reduce the risk of fire, electrical shock, or injury when using your washer, follow basic precautions Read all instructions before using your...
Parts and Features The parts and features of your washer are illustrated on this page. Become familiar with all parts and features before using your washer. NOTES: The drawings in this book may vary from your washer model. They are designed to show the different features of all models covered by this book.
Operating Your Washer To obtain the best washing results, you must operate your washer properly. This section gives you this important information. NOTE: Before using your washer, remove the consumer Features Guide from your washer and place it with your Use and Care Guide. Starting your washer...
Selecting a cycle and time NOTES: The Cycle Control Knob shown above may vary from the Cycle Control Knob on your washer. The knob above illustrates the different features of all washer models covered by this book. Your model may not include all of the cycles shown.
EXTENDED SOAK Cycle Features brief periods of agitation and soak time to help remove heavy soils and stains that need pretreatment. Use warm water when soaking laundry (hot water can set stains). See pages 17-l 9 for stain removal information. Use the amount of detergent or presoak additive recommended by manufacturer.
Understanding what When the Cycle Control Knob is set to a number and pulled out, the washer fills (to selected load size) before agitation and timing start. The washer begins agitating immediately after filling (agitation occurs with the washer lid up or down). After agitation starts, the Cycle Control Knob turns clock- wise until it points to OFF and the cycle ends.
Other Features Your washer may have some of the following features. Understanding tures on your machine will help you efficiently use your washer. MAGIC CLEAN* lint filter The lint filter at the bottom of the washer basket cleans itself. During agitation, wash and rinse water pass over the filter, separat- ing the lint from the water.
Using the fabric softener (on some models) 1. Add detergent and load clothes in the basket. 2. Pour liquid fabric softener into the dis- penser using the amount recommended on the package. Avoid dripping or spilling any fabric softener on the load. 3.
Caring for Your Washer Proper care of your washer can extend its life. This section explains how to care for your washer properly and safely. Cleaning your washer Exterior Wipe up detergent, bleach, and other spills with a soft, damp cloth or sponge as they occur.
LaundryTips This section reviews proper laundering techniques and gives you additional washing information. Preparing clothes Close zippers, snaps, and hooks to avoid snagging other items. Remove pins, buckles, and other hard objects to avoid scratching the washer interior. Remove non- washable trim and ornaments.
Loading suggestions For these suggested full-sized loads, set the Load Size Selector to the highest water level setting. LARGE CAPACITY WASHERS Heavy Work Permanent Clothes Press 1 double sheet 2 pair pants 3 shirts 1 tablecloth 3 pair jeans 1 dress 1 blouse 1 coverall 2 slacks...
Selecting a water Water temperature guide WASH WATER TEMPERATURE+ SUGGESTED FABRICS Work clothes 130°F (54°C) Sturdy whites/colorfast or above pastels Diapers Dark/noncolorfast WARM 90”-110°F Permanent press items (32”-44°C) Nylon, polyester, acrylics, silks, woollens Knits/delicate Extra-sensitive COLD 70”-90°F Noncolorfast items (21”-32°C) Hand washables t The washer features cold rinses for all wash temperatures.
Washing special-care Most garments and household textiles have care labels with laundering instructions. follow care label directions when they are available. some special washables are included in this section. Pretreat spots and stains. Select water temperature, Blankets, according to the type of blanket being washed. Two rinses may be electric woollen necessary.
Page 16
Knits Knits are comfortable to wear because they stretch. However, this means that knits are more likely to be stretched and dam- aged when washed (especially bulky knits). Knits made of synthetic fabrics such as polyester, nylon, and acrylic tend to keep their original shape more than a knit made of cotton or ramie.
Removing Stains Stained, heavily-soiled or greasy items may need to be prewashed or soaked for best results. Soaking helps remove protein-type stains like blood, milk or grass. Prewashing soil before washing. Stain removal rules Use warm water for soaking or prewashing stained laundry.
Page 18
TO REMOVE STAIN Light stain: Treat with liquid detergent or your regular laundry detergent. Deodorants Wash in hottest water safe for fabric. and anti- perspirants Heavy stain: Place face down on towel and treat with a paste of ammo- nia and all-fabric bleach. Let stand for 30 minutes. Wash in hottest water safe for fabric.
Page 19
STAIN TO REMOVE Meat juice, Scrape off excess with a dull knife. Soak in cold or warm water with enzyme presoak at least 30 minutes, or treat stains with a nonflammable fabric cleaner. Wash. Mildew Wash in hottest water safe for fabric. If stain remains, soak in warm water and an all-fabric bleach for 15 to 30 minutes.
Troubleshooting Most laundering problems are easily solved if you understand the cause. Check the following list for common-laundry problems you may have and their possible causes. Also refer to the next page for common washer problems and how to solve them without calling for service. If you still need help, see “Requesting Assistance or Service”...
Page 21
Common washer problems Before calling for service, check these: Is the power cord firmly plugged into a live outlet with proper voltage? Have you blown a household fuse or tripped a circuit breaker? Has a time-delay fuse been used? Are both the hot and cold water faucets turned on? Are the water hoses kinked or clogged? Is the drain hose lower than the water level in the washer? It must be higher.
Look for this symbol of quality whenever you need a replacement par-l for your Whirlpool appliance. FSP replacement parts will fit right and work right, because they are made to the same exacting specifications used to build every new Whirlpool appliance.
C. Pickup and delivery. Your washer is designed to be repaired in the home. D. Damage to your washer caused by accident, misuse, fire, flood, acts of God or use of products not approved by Whirlpool. E. Any labor costs during the limited warranties.
