HoMedics MCS-1200H Assembly Instructions

MCS-1200H Assembly Instructions
Note: This chair requires 2 adults to properly assemble.

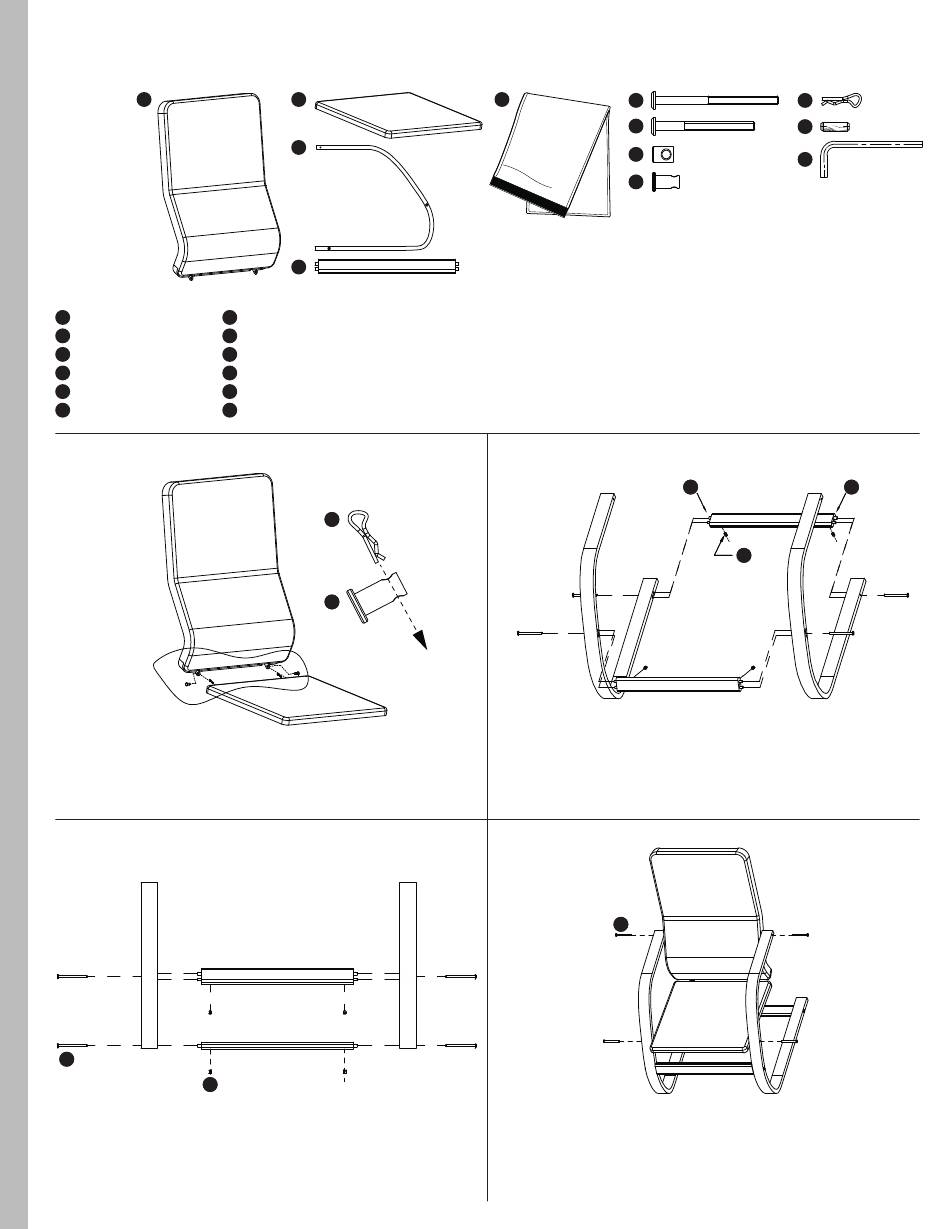

STEP 1
1
Locate the following pieces:
Back cushion (1)
1 7
Seat cushion (1)
2 8
Wooden legs (2)
3 9
Wooden support planks (2)
4 10
Intensity control flap (1)
5 11
Long screws (4)
6 12
STEP 2
Locate the seat cushion and back cushion. Align the metal rings and push 1 metal
plug through each hole. Next, locate the 2 metal pins, and insert into the small hole
in each metal plug.
STEP 4
6 6
8 8
Locate the long screws and the metal nuts. Drop 1 metal nut into each pre-drilled
hole on the support planks. Next, twist the long screws into the holes on each side of
the wooden legs, until they reach the metal nut. Ensure the hole in the metal nut is
aligned with the screw. Use the Allen wrench to tighten. The screw should be almost
flush with the wooden leg when tightened.
2
3
4
Short screws (4)
Nuts (4)
Metal plugs (2)
Pins (2)
Wooden dowels (8)
Allen wrench (1)
10 10
9 9
5
6
7
8
9
STEP 3
Locate the wooden dowels, wooden legs and support planks. Insert 1 dowel into
each of the pre-drilled holes on the short edge of the wooden planks. Then attach
the planks to the legs by aligning the dowels with the pre-drilled holes on the legs
and pushing in until the pieces are flush.
STEP 5
7 7
6
Place the seat and back cushion between the 2 wooden legs. Locate the short
screws and twist into each of the 4 holes on the wooden legs. Each screw will go
completely through the hole in the wooden leg and enter the hole in the side of the
back or seat cushion. Using the Allen wrench, ensure that the screw is tightened
and that there is no space between the cushion and the wooden leg. Plug in your
chair, and enjoy a massage with or without the intensity control flap attached.
10
11
12
11 11 11 11
8 6
