- Page 1 Installation Manual SIMATIC NET Rugged Ethernet Switches RUGGEDCOM RSL910 Edition 02/2020 https://www.siemens.com...
- Page 2 Preface Introduction Installing the Device SIMATIC NET Device Management Rugged Ethernet Switches RUGGEDCOM RSL910 Communication Ports Technical Specifications Installation Manual Certification 02/2020 C79000-G8976-1305-09...
- Page 3 Note the following: WARNING Siemens products may only be used for the applications described in the catalog and in the relevant technical documentation. If products and components from other manufacturers are used, these must be recommend- ed or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and maintenance are required to ensure that the products operate safely and without any problems.
-
Page 4: Table Of Contents
Accessing Documentation ....................... v Disclaimer of Liability ......................v Registered Trademarks ......................v Training ..........................vi Customer Support ........................vi Contacting Siemens ....................... vii Introduction ........................... 1 Feature Highlights ....................1 Description ......................2 Required Tools and Materials ................. 4 Decommissioning and Disposal ................ - Page 5 Table of Contents Failsafe Alarm Relay Specifications ..............32 Supported Networking Standards ................ 32 Copper Ethernet Port Specifications ..............32 Operating Environment ..................33 Mechanical Specifications ..................33 Dimension Drawings ................... 33 Certification ......................... 37 Approvals ......................37 6.1.1 CSA ........................37 6.1.2 European Union (EU) ..................
-
Page 6: Preface
However, deviations between the product and the documentation may exist. Siemens shall not be liable for any errors or omissions contained herein or for conse- quential damages in connection with the furnishing, performance, or use of this ma- terial. -
Page 7: Training
Siemens Sales representative. Customer Support Customer support is available 24 hours, 7 days a week for all Siemens customers. For technical support or general information, contact Siemens Customer Support through any of the following methods: Online Visit http://www.siemens.com/automation/support-request... -
Page 8: Contacting Siemens
Preface Contacting Siemens Contacting Siemens Address Siemens AG Industry Sector 300 Applewood Crescent Concord, Ontario Canada, L4K 5C7 Telephone Toll-free: 1 888 264 0006 Tel: +1 905 856 5288 Fax: +1 905 856 1995 E-Mail ruggedcom.info.i-ia@siemens.com https://www.siemens.com RUGGEDCOM RSL910 Installation Manual, 02/2020, C79000-G8976-1305-09... - Page 9 Preface Contacting Siemens viii RUGGEDCOM RSL910 Installation Manual, 02/2020, C79000-G8976-1305-09...
-
Page 10: Introduction

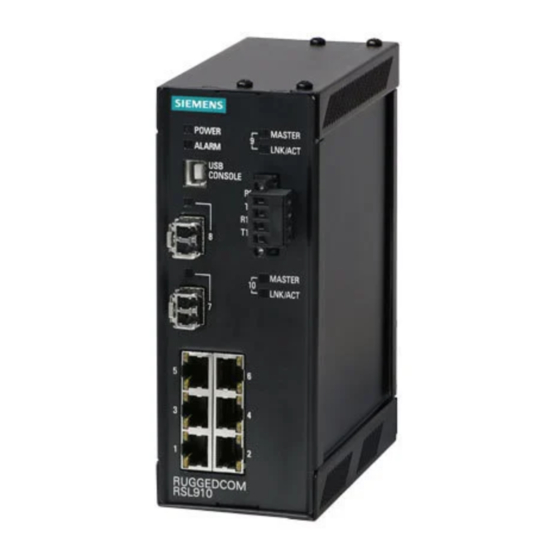

Introduction The RUGGEDCOM RSL910 is a utility-grade, fully managed Ethernet switch with Eth- ernet over VDSL2 (EoVDSL) capabilities, designed to operate reliably in electrically harsh and climatically demanding environments. EoVDSL supports LAN segments of up to 3 km (1.8 mi) over telephone grade cable (or other legacy serial cabling) at up to 140 Mbps (upstream and downstream). -
Page 11: Description
Introduction 1.2 Description Ethernet Over VDSL (EoVDSL) • 2 x Ethernet over VDSL2 (EoVDSL) ports • Up to 3 km (1.8 mi) LAN segments • Symmetric data rates up to 140 Mbps • Automatically selects fastest data rate based on distance and quality of cable •... - Page 12 Introduction 1.2 Description POWER LED ALARM LED USB Console Port [Optional] SFP (100/1000Base-TX/FX/SX/LX) Ethernet Ports Copper (10/100Base-TX) Ethernet Ports Universal EoVDSL Terminal RS232 Console Port (Serial) Failsafe Alarm Relay Chassis Ground Connection Power Supply Terminal Block Figure 1.1 RUGGEDCOM RSL910 POWER LED Illuminates green when power is supplied to the device.
-
Page 13: Required Tools And Materials
Siemens also does not recommend using copper Ethernet ports to interface with de- vices in the field across distances that could produce high levels of ground potential rise (i.e. -
Page 14: Supported Fiber Optic Cables
Introduction 1.5.1 Supported Fiber Optic Cables 1.5.1 Supported Fiber Optic Cables The following fiber optic cable types are supported under the stated conditions. Cable Type Wavelength (nm) Modal Band- Distance (m) width (MHz·km) 100Base-FX 1000Base-SX 10GBase-SR OM1 (62.5/125) — 1300 2000 —... - Page 15 Introduction 1.5.1 Supported Fiber Optic Cables RUGGEDCOM RSL910 Installation Manual, 02/2020, C79000-G8976-1305-09...
-
Page 16: Installing The Device
This product contains no user-serviceable parts. Attempted service by unauthorized personnel shall render all warranties null and void. Changes or modifications not expressly approved by Siemens AG could invalidate specifications, test results, and agency approvals, and void the user's authority to operate the equipment. -
Page 17: Mounting The Device
2.2 Mounting the Device Verify all items are included. NOTICE If any item is missing or damaged, contact Siemens for assistance. Mounting the Device The RUGGEDCOM RSL910 is designed for maximum mounting and display flexibility. It can be equipped with adapters that allow it to be attached to a DIN rail or panel. - Page 18 Installing the Device 2.2.1 Mounting the Device on a DIN Rail Mounting the Device To mount the device to a DIN rail, do the following: Hook the top teeth of the adapter onto the DIN rail. Note The adapter features a sliding release with a slot at the bottom for a flathead screwdriver.
-
Page 19: 2.2.2 Mounting The Device To A Panel
Installing the Device 2.2.2 Mounting the Device to a Panel Removing the Device To remove the device from a DIN rail, do the following: Insert a flathead screwdriver into the slot of the sliding release and move it down. DIN Rail DIN Rail Adapter Figure 2.2 Removing the Device from a DIN Rail... - Page 20 Installing the Device 2.2.2 Mounting the Device to a Panel To mount the device to a panel, do the following: Loosen the top and bottom screws at the outer edge of the device. Screw Panel Mount Adapter Figure 2.3 Panel Mount Adapter Assembly Slide the supplied adapters under the screw heads and then tighten the screws.
-
Page 21: Connecting The Failsafe Alarm Relay
Installing the Device 2.3 Connecting the Failsafe Alarm Relay Connecting the Failsafe Alarm Relay The failsafe relay can be configured to latch based on alarm conditions. The NO (Normally Open) contact is closed when the unit is powered and there are no ac- tive alarms. -
Page 22: Connecting High Ac/Dc Power
IMPORTANT Siemens requires the use of external surge protection in VDSL applications where the line may be subject to surges greater than that for which the device is rated. Use the following specifications as a guide for VDSL external surge protection: •... - Page 23 Installing the Device 2.4.1 Connecting High AC/DC Power Connect the positive wire from the power source to the positive/live (+/L) termi- nal on the terminal block. Positive/Live (+/L) Terminal Negative/Neutral (-/N) Terminal Surge Ground Terminal Braided Ground Cable Figure 2.6 Terminal Block Wiring ±...
-
Page 24: 2.4.2 Connecting Low Dc Power
Installing the Device 2.4.2 Connecting Low DC Power Positive Terminal Negative Terminal Surge Ground Terminal Braided Ground Cable Figure 2.7 Terminal Block Wiring – Dual DC Power Supply Inputs Connect the negative wire from the power source to the negative/neutral (-/N) terminal on the terminal block. Connect the ground wire from the power source to the chassis groun terminal on the terminal block. - Page 25 Installing the Device 2.4.2 Connecting Low DC Power Connect the positive wire from the power source to the positive terminal on the terminal block. ± ± Positive Terminal Negative Terminal Surge Ground Terminal Braided Ground Cable Figure 2.8 Terminal Block Wiring – Single DC Power Supply Inputs Connect the negative wire from the power source to the negative terminal on the terminal block.
- Page 26 Installing the Device 2.4.2 Connecting Low DC Power [Optional] If a redundant connection is required, repeat Step 2 Step 3 connect the secondary power inputs. ± ± ± ± Positive Terminal Negative Terminal Surge Ground Terminal Braided Ground Cable Figure 2.9 Terminal Block Wiring – Dual DC Power Supply Inputs Using a braided wire or other appropriate grounding wire, connect the surge ground terminal to the chassis ground connection.
- Page 27 Installing the Device 2.4.2 Connecting Low DC Power RUGGEDCOM RSL910 Installation Manual, 02/2020, C79000-G8976-1305-09...
-
Page 28: Device Management
Device Management This section describes how to connect to and manage the device. Connecting to the Device The following describes the various methods for accessing the RUGGEDCOM RSL910 console and Web interfaces on the device. For more detailed instructions, refer to the RUGGEDCOM RSL910 User Guide for the RUGGEDCOM RSL910. - Page 29 Device Management 3.1 Connecting to the Device USB Type-B Console Port Serial DB9 Console Port Figure 3.1 Console Ports Use the following settings to connect to either port: Speed 57600 baud Data Bits Stop Bit Parity None Flow Control Terminal ID VT100 The serial console port implements RS232 DCE (Data Communication Equipment) on a DB9 connector.
-
Page 30: Configuring The Device
Device Management 3.2 Configuring the Device Ethernet Ports Connect any of the available Ethernet ports on the device to a management switch and access the RUGGEDCOM RSL910 console and Web interfaces via the device's IP address. The factory default IP address for the RUGGEDCOM RSL910 is https://- 192.168.0.1. - Page 31 Device Management 3.2 Configuring the Device RUGGEDCOM RSL910 Installation Manual, 02/2020, C79000-G8976-1305-09...
-
Page 32: Communication Ports
Communication Ports The RUGGEDCOM RSL910 can be equipped with various types of communication ports to enhance its abilities and performance. Ports 7 and 8 Ports 1 to 6 Port 9 and 10 Figure 4.1 Port Assignment Port Type 1 to 6 Copper Ethernet Ports (10/100Base-TX) 7 and 8 SFP Transceivers (1000Base-TX/BX/FX/SX/LX) - Page 33 Communication Ports 4.1 Copper Ethernet Ports WARNING Electric shock hazard – risk of serious personal injury and/or equipment inter- ference When shielded cables are used, make sure the shielded cables do not form a ground loop via the shield wire and the RJ45 receptacles at either end. Ground loops can cause excessive noise and interference, but more importantly, create a potential shock hazard that can result in serious injury.
-
Page 34: Eovdsl Ports
Communication Ports 4.2 EoVDSL Ports EoVDSL Ports The RUGGEDCOM RSL910 features a pluggable terminal block that supports up to two Universal EoVDSL connections. Universal EoVDSL connections are Master/Slave selectable and offer symmetric data rates up to 140 Mbps (with a VDSL link data rate up to 100 Mbps) or distances up to 3 km (1.8 mi). -
Page 35: 4.2.1 Eovdsl Wiring
Communication Ports 4.2.1 EoVDSL Wiring Pin-Out The following is the pin-out for the EoVDSL terminal block: Terminal Description Receive on Port 9 Transmit from Port 9 Receive on Port 10 Transmit from Port 10 Figure 4.4 EoVDSL Terminal Block 4.2.1 EoVDSL Wiring VDSL operates over 2-wire Category 3 (CAT-3) or higher twisted-pair wiring. -
Page 36: 4.2.2 Configuration And Setup
Communication Ports 4.2.2 Configuration and Setup 4.2.2 Configuration and Setup If the RUGGEDCOM RSL910 and another device both have Universal EoVDSL ports, configure one device to be the Master and the other the Slave. Once configured and connected together, each device will attempt to achieve the maximum speed based on the line length and conditions. -
Page 37: Sfp Transceivers
SFP Transceivers The RUGGEDCOM RSL910 supports up to two Small Form-Factor Pluggable (SFP) transceiver sockets, which are compatible with a wide array of SFP transceivers avail- able from Siemens. LEDs Each socket features an LED that indicates its link state. - Page 38 RUGGEDCOM SFP Transceiver Catalog [https://support.industry.siemen- s.com/cs/ca/en/view/109482309] IMPORTANT Only use SFP transceivers approved by Siemens for RUGGEDCOM products. Siemens accepts no liability as a result of performance issues related in whole or in part to third-party components. RUGGEDCOM RSL910...
- Page 39 Communication Ports 4.3 SFP Transceivers RUGGEDCOM RSL910 Installation Manual, 02/2020, C79000-G8976-1305-09...
-
Page 40: Technical Specifications
Technical Specifications This section provides important technical specifications related to the device. Power Supply Specifications Note When determining cable lengths, make sure the minimum input voltage for the pow- er supply is provided at the power source. Hazardous Environments Power Sup- Input Range Internal Isolation... -
Page 41: Failsafe Alarm Relay Specifications
Technical Specifications 5.2 Failsafe Alarm Relay Specifications Failsafe Alarm Relay Specifications Hazardous Environments Maximum Switching Voltage Rated Switching Current Isolation 30 VDC 1500 V for 1 minute 80 VDC 0.3 A 30 VAC Non-Hazardous Environment Maximum Switching Voltage Rated Switch- Isolation ing Current 30 VDC 2 A, 60 W... -
Page 42: Operating Environment
Technical Specifications 5.5 Operating Environment Isolation 1.5 kV Auto-negotiating. Shielded or unshielded. Auto-crossover and auto-polarity. Typical distance. Dependent on the number of connectors and splices. RMS 1 minute. Operating Environment The RUGGEDCOM RSL910 is rated to operate under the following environmental con- ditions. - Page 43 Technical Specifications 5.7 Dimension Drawings 124.7 65.1 116.6 Figure 5.1 Overall Dimensions RUGGEDCOM RSL910 Installation Manual, 02/2020, C79000-G8976-1305-09...
- Page 44 Technical Specifications 5.7 Dimension Drawings 78.8 120.6 13.7 101.6 ø 8.1 ø 4.0 ø 4.0 57.2 Figure 5.2 Panel Mount Dimensions RUGGEDCOM RSL910 Installation Manual, 02/2020, C79000-G8976-1305-09...
- Page 45 Technical Specifications 5.7 Dimension Drawings 126.2 134.3 Figure 5.3 DIN Rail Mount Dimensions RUGGEDCOM RSL910 Installation Manual, 02/2020, C79000-G8976-1305-09...
-
Page 46: Certification
UL 60950-1 Information Technology Equipment – Safety Part 1: General Requirements 6.1.2 European Union (EU) This device is declared by Siemens AG to comply with essential requirements and other relevant provisions of the following EU directives: • EN 60950-1 Information Technology Equipment – Safety – Part 1: General Requirements •... -
Page 47: 6.1.3 Fcc
Methods of Measurement The device is marked with a CE marking and can be used throughout the European community. A copy of the CE Declaration of Conformity is available from Siemens AG. For contact information, refer to "Contacting Siemens (Page vii)". -
Page 48: Tüv Süd
Information Technology Equipment – Safety – Part 1: General Requirements 6.1.7 RoHS This device is declared by Siemens AG to meet the requirements of the following Ro- HS (Restriction of Hazardous Substances) directives for the restricted use of certain hazardous substances in electrical and electronic equipment: •... - Page 49 Certification 6.2 EMC and Environmental Type Tests EMC Type Tests Test Description Test Levels Severi- ty Levels Enclosure ± 6 kV 61000-4-2 Contact Enclosure Air ± 8 kV Radiated RFI Enclo- 10 and 20 V/m 61000-4-3 sure Ports Burst (Fast Transient) Signal Ports ±...
- Page 50 Further Information Siemens RUGGEDCOM https://www.siemens.com/ruggedcom Industry Online Support (service and support) https://support.industry.siemens.com Industry Mall https://mall.industry.siemens.com Siemens AG Digital Industry Process Automation Postfach 48 48 90026 NÜRNBERG GERMANY...
