Page 1: Top And Cabinet Parts

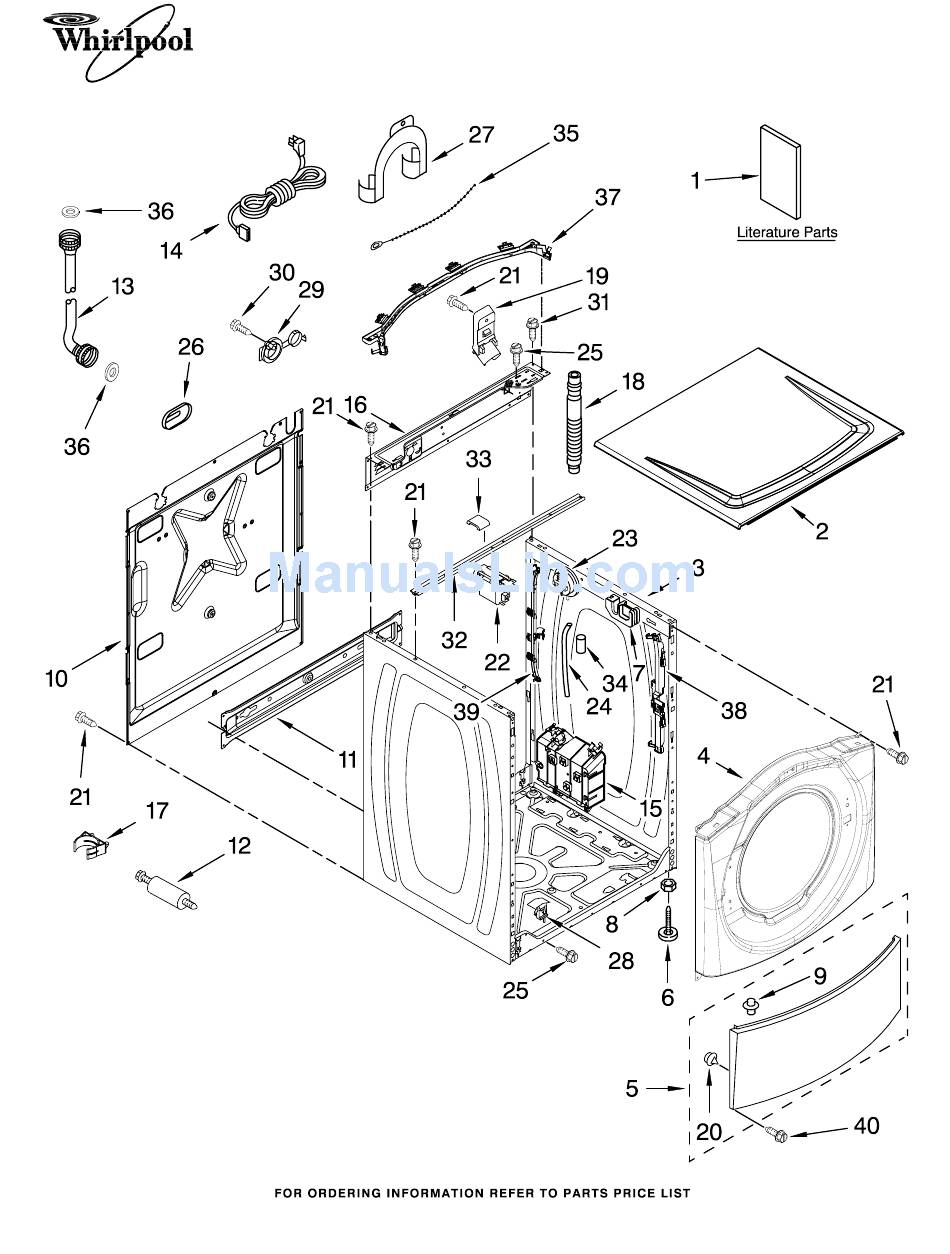

TOP AND CABINET PARTS AUTOMATIC WASHER For Model: WFW8300SW0 (White) Part No. 8181055 4−06 Printed in U.S.A. (drd) - Page 2 3359452 Nut, Lock (4) 8518891 Rivet (2) 8540582 Panel, Rear 8540583 Brace, Transport 8540199 Bolt, Shipping (4) Hose, Water Inlet 8571377 Blue Coupler 8571378 Red Coupler For Model: WFW8300SW0 (White) Illus. Part DESCRIPTION 8540752 Cord, Power 8540135 Motor Control Unit 8540557 Brace, Rear...
- Page 3 DOOR AND LATCH PARTS 8181055 For Model: WFW8300SW0 (White) Illus. Part DESCRIPTION 8540952 Bellow 8540108 Clamp, Bellow 8540772 Lock, Door 8540725 Screw 8540221 Hook, Door 8540533 Trim Ring, Outer Door 8540107 Clamp, Bellow (Front) 8540115 Clamp, Support 8540114 Clamp, Glass (2)
-
Page 4: Control Panel Parts
CONTROL PANEL PARTS For Model: WFW8300SW0 (White) Illus. Part DESCRIPTION 8574927 Panel, Control 8571944 Knob, Control 8571903 User Interface 8540558 Brace, Top Front 8540839 Channel, Water 8541000 Microcomputer, Machine Control 3390647 Screw, 8−18 x 1/2 8540703 Harness, Wiring (Main) 8540282 Screw 10 W10015090 Screw, 8−18 x 5/8... -
Page 5: Dispenser Parts
To Dispenser 370450 Clamp, Hose 8540282 Screw, Valve Mtg. 8540042 Nozzle, Inlet 8540393 Cam, Actuator 8540394 Lever, Water Distribution 8181055 DISPENSER PARTS For Model: WFW8300SW0 (White) Illus. Part DESCRIPTION 8540041 Actuator 8540282 Screw 8281276 Clamp, Hose 8540395 Connection, Lever 8540058 Dispenser... - Page 6 Part DESCRIPTION 8540704 Harness, Motor 8540033 Cap, Right Foot 8540180 Air Trap 8540013 Ball 8540008 Clamp 8540012 Hose, Tub to Pump For Model: WFW8300SW0 (White) Illus. Part DESCRIPTION 370448 Clamp 8540032 Damper, Rubber (Left Foot) 356138 Clamp, Hose 8540024 Pump (Complete)
- Page 7 TUB AND BASKET PARTS For Model: WFW8300SW0 (White) 8181055...
- Page 8 TUB AND BASKET PARTS For Model: WFW8300SW0 (White) Illus. Part DESCRIPTION 8533999 Nut, Pulley 8540088C Pulley 8540101 Belt, Drive 8540600 Counterweight, Front Lower 8540737 Pipe, Ventilation 8540010 Clamp, Vent Hose 8540019 Hose, Exhaust 8540446 Tub, Rear 8540602 Counterweight, Rear 8540090 Gasket, Tub...
-
Page 9: Optional Parts (Not Included)
OPTIONAL PARTS (NOT INCLUDED) 8181055 For Model: WFW8300SW0 (White) Illus. Part DESCRIPTION PAINT, TOUCH−UP (1/2oz.) 72017 White PAINT, PRESSURIZED SPRAY (12 oz.) 350938 Primer, Gray 350930 White PAINT, BULK (1 qt.) 799344 White (Uncut) ACCESSORY PARTS 285863 Drain Extension...
