Summary of Contents for Whirlpool LSQ9549LG1
-

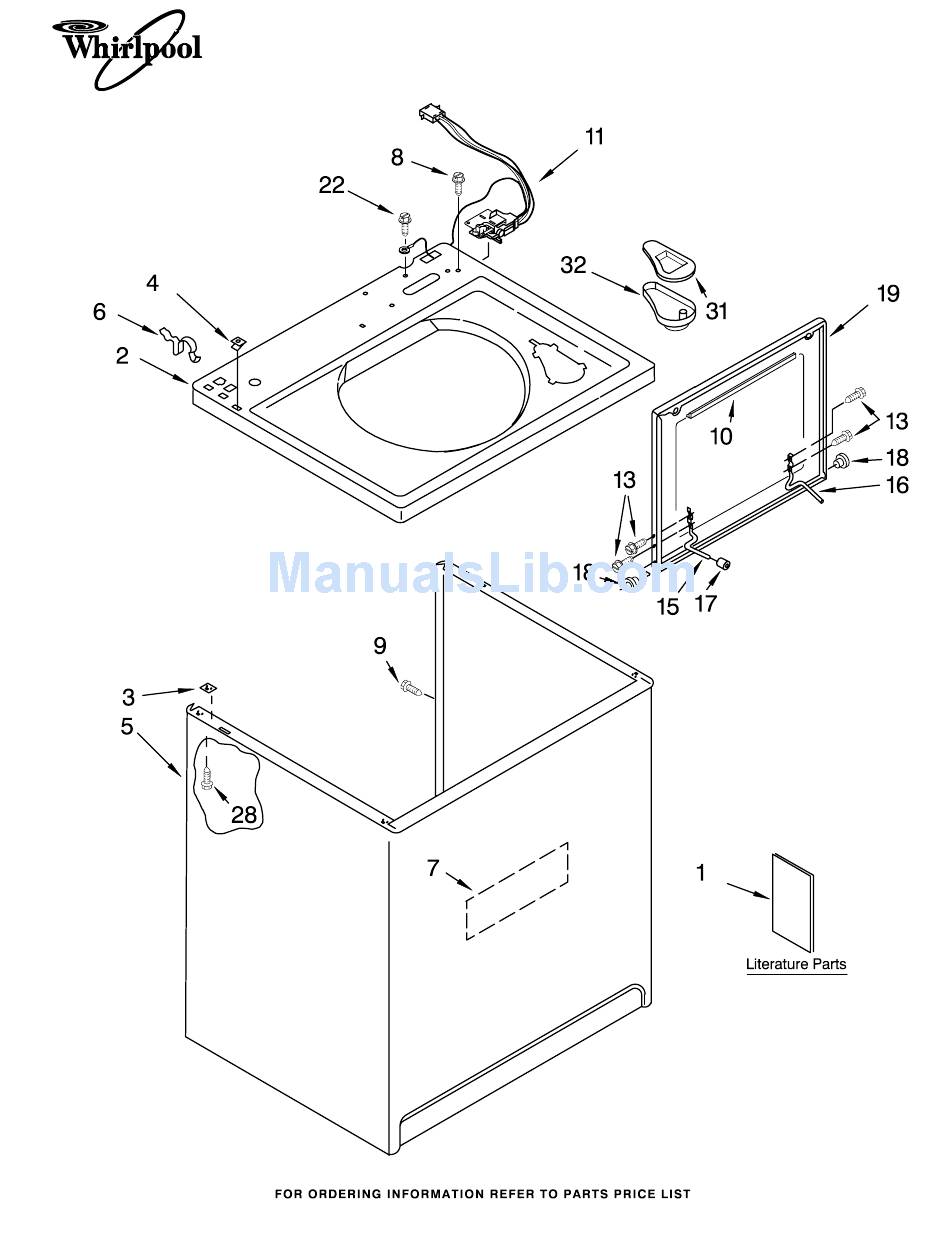

Page 1: Top And Cabinet Parts
TOP AND CABINET PARTS AUTOMATIC WASHER For Models: LSQ9549LQ1, LSQ9549LW1, LSQ9549LG1 (Designer White) (White/Grey) (Biscuit/Gold) 6−03 Litho in U.S.A. (drd) Part No. 8180071... - Page 2 TOP AND CABINET PARTS For Models: LSQ9549LQ1, LSQ9549LW1, LSQ9549LG1 (Designer White) (White/Grey) (Biscuit/Gold) Illus. Part DESCRIPTION Literature Parts LIT3956025 Installation Instructions LIT3955904 Feature Sheet LIT3955869 Use & Care Guide LIT3956339 Energy Guide LIT8541273 Wiring Diagram Following May Be Purchased DO−IT−YOURSELF...
-
Page 3: Controls And Rear Panel Parts
CONTROLS AND REAR PANEL PARTS For Models: LSQ9549LQ1, LSQ9549LW1, LSQ9549LG1 (Designer White) (White/Grey) (Biscuit/Gold) 8180071... - Page 4 CONTROLS AND REAR PANEL PARTS For Models: LSQ9549LQ1, LSQ9549LW1, LSQ9549LG1 Illus. Part DESCRIPTION 3976300 Washer, Water Inlet Hose (4) (1−1/16 x 5/8) 3400073 Screw, Ground Hose, Water Inlet (2) 3949374 Blue Coupler 3949375 Red Coupler 9740848 Screw 8318255 Strap, Console (2)
-
Page 5: Agitator, Basket And Tub Parts
AGITATOR, BASKET AND TUB PARTS For Models: LSQ9549LQ1, LSQ9549LW1, LSQ9549LG1 (Designer White) (White/Grey) (Biscuit/Gold) 8180071... - Page 6 AGITATOR, BASKET AND TUB PARTS For Models: LSQ9549LQ1, LSQ9549LW1, LSQ9549LG1 (Designer White) (White/Grey) (Biscuit/Gold) Illus. Part 63580 Dispenser 358237 Screw & Washer 3363003 Clothes Mover 3951632 Agitator 8528150 Tub Ring & Gasket 3976308 Gasket, Tub Ring 3354845 Clip, Agitator 3355921 Washer, Agitator...
-
Page 7: Machine Base Parts
For Models: LSQ9549LQ1, LSQ9549LW1, LSQ9549LG1 8180071 MACHINE BASE PARTS (Designer White) (White/Grey) (Biscuit/Gold) Illus. Part DESCRIPTION 3400076 Screw, Bracket Mounting (10−32 x 5/8) 64067 Bracket, Spring Outer (2) 63907 Spring Suspension,(3) 3362087 Support & Brake, 64065 Bracket, Spring Outer (L.F.) -
Page 8: Brake, Clutch, Gearcase, Motor And Pump Parts
BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS For Models: LSQ9549LQ1, LSQ9549LW1, LSQ9549LG1 (Designer White) (White/Grey) (Biscuit/Gold) Illus. Part DESCRIPTION 388952 Brake & Drive Tube (Complete) (Refer to Page 11 For Further Breakdown) 63292 Washer, Spin Tube Thrust 62697 Ring, Spin... -
Page 9: Wiring Harness Parts
WIRING HARNESS PARTS For Models: LSQ9549LQ1, LSQ9549LW1, LSQ9549LG1 (Designer White) (White/Grey) (Biscuit/Gold) WH2G 8180071... - Page 10 WIRING HARNESS PARTS For Models: LSQ9549LQ1, LSQ9549LW1, LSQ9549LG1 Illus. Part DESCRIPTION 3349557 Clip, Harness 388498 Clip, Harness 3347812 Clip, Harness 3352501 Clip, Harness 90016 Clip, Harness 3390496 Clip, Harness 389379 Retainer, (Suds Models) 352090 Timer, Block Disconnect (White) 352089 Timer, Block...
-
Page 11: Brake And Drive Tube Parts
BRAKE AND DRIVE TUBE PARTS For Models: LSQ9549LQ1, LSQ9549LW1, LSQ9549LG1 8180071 (Designer White) (White/Grey) (Biscuit/Gold) BD−315−A Illus. Part DESCRIPTION 388952 Brake And Drive Tube (Complete) 62658 Ring, Thrust 91939 Seal, Oil 356427 Seal, Drive Tube 356937 Spacer, Drive Tube 64027... -
Page 12: Gearcase Parts
GEARCASE PARTS For Models: LSQ9549LQ1, LSQ9549LW1, LSQ9549LG1 (Designer White) (White/Grey) (Biscuit/Gold) GC−215−C Illus. Part DESCRIPTION 1 3360630 Gearcase (Complete) 285202 Cover, Gearcase 3 3349985 Seal, Gearcase Cover 285195 Sealer, Gasket (.20 Fl. Oz.) (6 ml) 63320 Pinion, Spin (Includes Illus. 25) -
Page 13: Water System Parts
For Models: LSQ9549LQ1, LSQ9549LW1, LSQ9549LG1 8180071 WATER SYSTEM PARTS (Designer White) (White/Grey) (Biscuit/Gold) Illus. Part DESCRIPTION 285442 Connector Kit, Plastic Drain Hose 285321 Sleeve Kit, (Contains 2 Sleeves) 370447 Clamp, Hose 16272 Connector, Straight 285320 Siphon Break (Not Included) 65349... -
Page 14: Miscellaneous Parts
For Models: LSQ9549LQ1, LSQ9549LW1, LSQ9549LG1 OPTIONAL PARTS (NOT INCLUDED) Illus. Part DESCRIPTION PAINT, TOUCH−UP (1/2oz.) 72017 White 4392899 Biscuit PAINT, PRESSURIZED SPRAY (12 oz.) 350938 Primer, Gray 350930 White 4392901 Biscuit PAINT, BULK (1 qt.) 799344 White (Uncut) 4392900 Biscuit (Uncut)
