Premier designs Wind Garden Sopwith Camel Airplane Spinner Assembly Instructions

WindGarden
b y p r e m i e r d e s i g n s
Plane Fuselage x 1
Wing x 3
Support Pole x 1
Diagonal
Plastic Fittings
Bottom View
Internal Wing
Strut
Left Wing
Velcro Tab

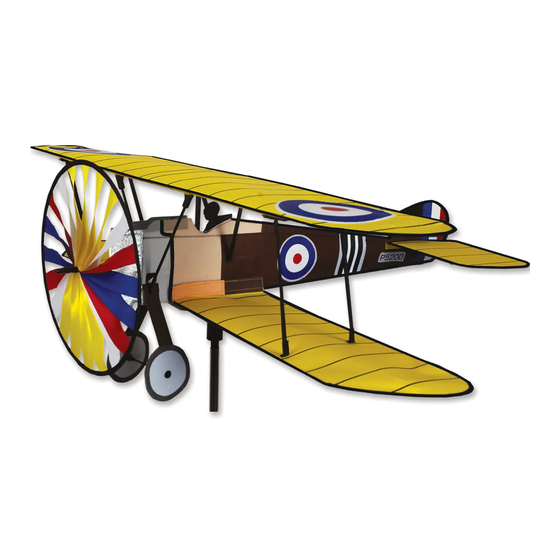

Sopwith Camel Airplane Spinner
Vertical Support Rod
Main
Fuselage
Hub
Aluminum
Ferrule
Velcro Tab
Step 1
Slide the top wing's "T" Fitting Thumb Screw onto the Internal
Vertical Support Rod. Be sure to tighten the top wing's "T" Fitting
Thumb Screw to secure the wing to the fuselage. Make sure the
"T" Fitting
wing is fully seated on the Vertical Support Rod. (diagram A)
Thumb
Screw
Step 2
Insert the Aluminum Ferrule attatched to the Internal Wing Strut
of the Right Wing through the square opening of the Main
Fuselage Hub. Then insert the Left Wing's Internal Wing Strut into
the Aluminum Ferrule, which is inside the channel of the Main
Fuselage Hub. (diagram B )
Step 3
Secure the wings to the fuselage with the Velcro tabs on both the
top and bottom of the Left and Right Wings. (diagram C)
Bottom View
Internal Wing
Strut
Right Wing
Left Wing
Spinner Propeller x 1
Landing Gear Struts x 2
Landing Gear Wheel Axle x 1
Stabilizer Cross Strut x 1
Ground Stake x 1
Velcro Tab
Main Fuselage
Velcro Tab
Fuselage
assembly
instructions
Hub
Right Wing
