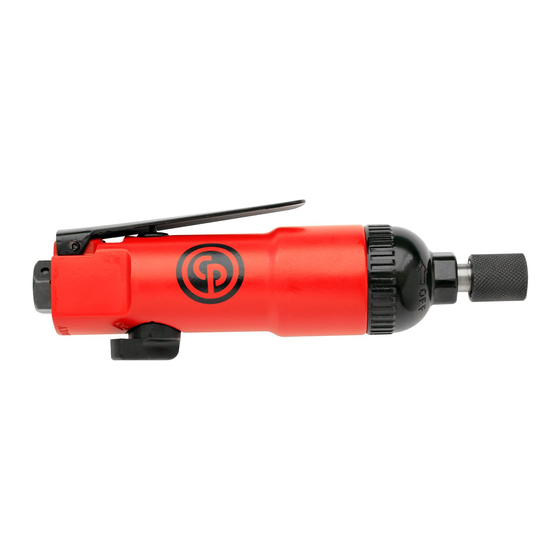

Operator's Manual
CP2136,CP2141 Series
1/4 Impact Screwdriver
WARNING
To reduce risk of injury, everyone using, installing, repairing, maintaining,
changing accessories on, or working near this tool must read and
understand these instructions, as well as separately provided safety
instructions part number 6159948710, before performing any such task.
Advertisement
Related Manuals for Chicago Pneumatic CP2136 Series
Summary of Contents for Chicago Pneumatic CP2136 Series
- Page 1 Operator’s Manual CP2136,CP2141 Series 1/4 Impact Screwdriver WARNING To reduce risk of injury, everyone using, installing, repairing, maintaining, changing accessories on, or working near this tool must read and understand these instructions, as well as separately provided safety instructions part number 6159948710, before performing any such task.
-
Page 2: Air Diagram
Air Diagram: Fig. 1 Fig. 2 Torque Vibrations Sound- Sound- Free Air Consumption Inner Hose Drive Weight Tool Length Air Inlet Pressure Power Speed Dia. Free Speed Fmax Rmax Model [ft.lbs] [ft.lbs] [lb] [inch.] [inch.] [SCFM] [inch] [min-1] [inch] [dB(A)] [dB(A)] [m/s²] [m/s²]... - Page 3 We, CHICAGO PNEUMATIC TOOLS , cannot be held liable for the consequences of using the declared values, instead of values reflecting the actual exposu- re, in an individual risk assessment in a work place situation over which we have no control.
-
Page 4: Safety Instructions
SAFETY INSTRUCTIONS DO NOT DISCARD - GIVE TO USER • Our goal is to produce tools that help you work safely and efficiently. Note: So-called “click” torque wrenches do not check for potentially The most important safety device for this or any tool is YOU. Your care dangerous over-torque conditions. and good judgment are the best protection against injury. All possible • Do not use hand sockets. Use only power or impact sockets in good hazards cannot be covered here, but we have tried to highlight some of condition. the important ones. • Ensure that the workpiece is securely fixed. • Only qualified and trained operators should install, adjust or use this operating hazards power tool. • Disconnect the air supply before handling the screwdriver bit or socket, • This tool and its accessories must not be modified in any way. adjusting the clutch or dismantling the tool. • Do not use this tool if it has been damaged. • Operators and maintenance personnel must be physically able to • If the rated speed, operating pressure or hazard warning signs on the handle the bulk, weight and power of the tool. tool cease to be legible or become detached, replace without delay. • Hold the tool correctly: be ready to counteract normal or sudden move- ments – have both hands available. - Page 5 • Avoid inhaling dust or fumes or handling debris from the work process • And Arsenic and chromium from chemically- treated rubber which can be harmful to your health (for example, cancer, birth defects, Your risk from these exposures varies, depending on how often you do asthma and/or dermatitis). Use dust extraction and wear respiratory this type of work. To reduce your exposure to these chemicals: work protective equipment when working with materials which produce in a well ventilated area, and work with approved safety equipment, airborne particles. such as dust masks that are specially designed to filter out microscopic • Some dust created by power sanding, sawing, grinding, drilling and particles. other construction activities contains chemicals known to the State of • Proceed with care in unfamiliar surroundings. Be aware of potential California to cause cancer and birth defects or other reproductive harm. hazards created by your work activity. This tool is not insulated for com- Some examples of these chemicals are: ing into contact with electric power sources. • Lead from lead based paints • This tool is not recommended for use in explosive atmospheres. • Crystalline silica bricks and cement and other masonry products...
- Page 6 CP2136 Series Impact Scrwdriver Index No Part No Description Qty. Index No Part No Description Qty. 8940170473 Collector Kit 8940170481 HAMMER CAM KIT RETAINING RING HAMMER CAM WASHER WASHER BUSHING 8940170482 Ball Bearing Kit SPRING BALL BEARING (608) WASHER BALL BEARING (626) STOPPING WHEEL (∮10mm)
