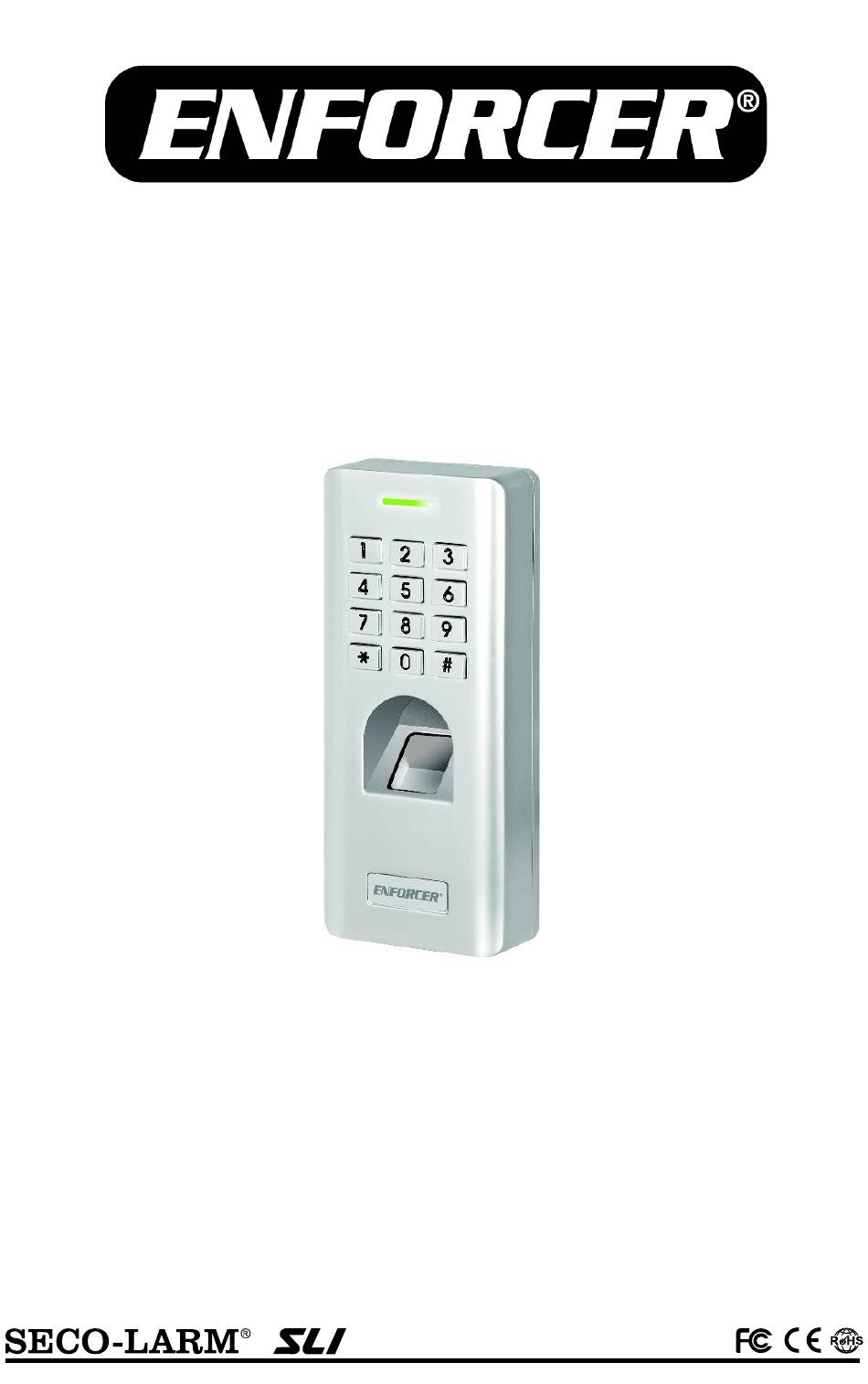

Fingerprint Reader and Keypad
Features:
• 500DPI Optical fingerprint reader
• Up to 3,000 users (up to 1,000 fingerprint
users, up to 2,000 PIN users)
• User code length 4~6 digits
• Fingerprint identification time – ≤ 1 second
• Fingerprint false acceptance rate – ≤ 0.01%
• Fingerprint false rejection rate – ≤ 0.1%
• 12VDC Operation
SK-2612-SFSQ
Manual
• Form C relay output – 2A@12VDC
• Tamper alarm output – 2.5A@12VDC
• Adjustable relay output time – 100ms~99s,
• Weatherproof – IP66
• Illuminated fingerprint reader window
• Wiegand output
• 2-Door interlock
®
or toggle

Advertisement

Table of Contents
loading

Related Manuals for SECO-LARM SLI ENFORCER SK-2612-SFSQ

Summary of Contents for SECO-LARM SLI ENFORCER SK-2612-SFSQ

  • Page 1 SK-2612-SFSQ Fingerprint Reader and Keypad Manual Features: • 500DPI Optical fingerprint reader • Form C relay output – 2A@12VDC • Up to 3,000 users (up to 1,000 fingerprint • Tamper alarm output – 2.5A@12VDC users, up to 2,000 PIN users) •...

  • Page 2: Quick Installation Guide

    NOTE: For DC-powered electric strikes, connect the included diode as close as possible and in parallel with the electric strike. This absorbs possible electromagnetic interference to prevent operation of the strike from damaging the fingerprint reader/keypad. Do not connect a diode when using electromagnetic locks or with AC powered strikes. SECO-LARM U.S.A., Inc.

  • Page 3: Quick Programming Guide

    ID #1001 (4~6 digits). • 5. Set the output time (skip this step if the default value of 5 seconds is acceptable): NOTE: sets the output delay time for 3 seconds. Exit programming mode: SECO-LARM U.S.A., Inc.

  • Page 4: Table Of Contents

    Form C 2A@12VDC Outputs Tamper alarm 2.5A@12VDC Egress input N.O. Ground Door sensor input N.C. Ground Enclosure material Zinc alloy Operating temperature -22°~140° F (-30°~60° C) Operating humidity 20~90% Dimensions "x5 "x1" (58x137x26 mm) Weight 14.2-oz (400g) SECO-LARM U.S.A., Inc.

  • Page 5: Overview

    All wiring and programming should be done by a professional installer to reduce the risk of improper installation. The user's operating guide for this fingerprint reader/keypad is located on pg. 27 of this manual. Be sure to store this manual in a safe place for future reference. SECO-LARM U.S.A., Inc.

  • Page 6: Installation

    Purple Output COM NO/NC/COM, relay output, max. 2A@12VDC Orange Output N.C. Transistor ground output, max. 2.5A@12VDC. Switches to Gray Alarm Output ground (-) when tamper switch activated. Green Data 0 Wiegand controller White Data 1 Wiegand controller SECO-LARM U.S.A., Inc.

  • Page 7: Sample Application

    • User codes – Up to 1998 user codes (user IDs 1001~2998) can be assigned. User codes are used to activate the relay. Both types of user codes may be 4~6 digits in length, but the master code must be 6 digits. SECO-LARM U.S.A., Inc.
  • Page 8 • If the same user fingerprint/code is repeated, the device will return to standby without triggering the output. • In multiple user code/fingerprint mode, the interval between each user code/fingerprint must not exceed 5 seconds, otherwise, the device will return to standby. SECO-LARM U.S.A., Inc.

  • Page 9: Programming Master Add/Delete Fingerprints

    4. Program the master delete fingerprint by pressing a different finger against the reader and repeat. 5. After 30 seconds, the keypad/reader will exit programming mode and the LED will return to steady red, or you can press the key to exit immediately. SECO-LARM U.S.A., Inc.

  • Page 10: Programming Format And Default Values

    Make sure the keypad is in base programming mode (see "Enter and Exit Base Programming Mode " pg. 9). Enter the new master programming code (6 digits): (where "X" is the new master programming code) 3. Exit programming mode: Press the key or wait 25 seconds to exit automatically. SECO-LARM U.S.A., Inc.

  • Page 11: Programming Super User Codes/Fingerprints

    • Exit programming mode by pressing the key after all programming is completed. One beep will sound and the LED will return to steady red. After 25 seconds of inactivity, the keypad will automatically exit programming mode and return to standby. SECO-LARM U.S.A., Inc.
  • Page 12 3. Program a user fingerprint to an automatically assigned User ID (generally not recommended, since the User ID will be needed to delete a user when their fingerprint is not available): In this example, the reader/keypad will assign the next available User ID – SECO-LARM U.S.A., Inc.
  • Page 13 One beep will sound and the LED will return to steady red. After 25 seconds of inactivity, the keypad will automatically exit programming mode and return to standby. • The master add fingerprint can only be used to add fingerprint users, not user codes. SECO-LARM U.S.A., Inc.

  • Page 14: Programming User Codes

    NOTE: The add user function code places you into this programming mode. Press the add user function code only before adding the first user. To continue to add other users in the same session, do not repeat the add user function code SECO-LARM U.S.A., Inc.

  • Page 15: Deleting User Fingerprints Or User Codes

    (see "Enter and Exit Base Programming Mode," general formula from within base programming mode pg. 9) : – Delete Users function code (LED will change to steady orange, must be repeated before each user code) – – User ID SECO-LARM U.S.A., Inc.

  • Page 16: Programming Output Mode And Time

    When programming the output mode and time, use the following general formula from within base programming mode (see "Enter and Exit Base Programming Mode," pg. 9) : – Program Output Mode and Time function code (LED will change to steady orange) – Output Mode and Output Time SECO-LARM U.S.A., Inc.

  • Page 17: Programming Access Mode / Security Level

    • If the same fingerprint or user code is repeated, the device will return to standby without triggering the output. • In multiple user code/fingerprint mode, the time between each user code/fingerprint must not exceed 5 seconds, otherwise, the device will return to standby. SECO-LARM U.S.A., Inc.

  • Page 18: Programming Keypad Sounds/Notifications

    (see "Enter and Exit Base Programming Mode," pg. 9) : – Program Keypad Sounds/Notifications function code (LED will change to steady orange) – Keypad Sounds/Notifications Enabled/Disabled Keypad Sounds/Notifications Enabled/Disabled: – Disable • – Enable (factory default) • SECO-LARM U.S.A., Inc.

  • Page 19: Programming The External Alarm Output

    LED will return to steady red. After 25 seconds of inactivity, the keypad will automatically exit programming mode and return to standby. Examples: 1. Disable the alarm: 2. Enable the alarm and set it to 2 minutes: SECO-LARM U.S.A., Inc.

  • Page 20: Programming Door Propped-Open / Forced-Open Detection

    LED will return to steady red. After 25 seconds of inactivity, the keypad will automatically exit programming mode and return to standby. Examples: Disable the door propped-open / forced-open detection: door propped-open / forced-open detection : 2. Enable the SECO-LARM U.S.A., Inc.

  • Page 21: Programming The Wrong-Code Lockout/Alarm

    Disable the wrong-code lockout: wrong-code lockout to deny access for 10 minutes : 2. Enable the wrong-code lockout to deny access until a valid master code, user code, or user 3. Enable the fingerprint is entered : SECO-LARM U.S.A., Inc.

  • Page 22: Wiegand Pass-Through Connection Diagram

    • Exit programming mode by pressing the key after all programming is completed. One beep will sound and the LED will return to steady red. After 25 seconds of inactivity, the keypad will automatically exit programming mode and return to standby. SECO-LARM U.S.A., Inc.
  • Page 23 ID is 255 and the User ID is 3, the output to the Wiegand controller will be 255,00003. If the fingerprint is not recognized as a valid fingerprint by the fingerprint reader, no output will be sent to the Wiegand controller. SECO-LARM U.S.A., Inc.

  • Page 24: Setting Up An Interlock System With Two Keypads

    NOTE: For DC-powered electric strikes, connect the included diode as close as possible and in parallel with the electric strike. This absorbs possible electromagnetic interference to prevent operation of the strike from damaging the fingerprint reader/keypad. Do not connect a diode when using electromagnetic locks or with AC powered strikes. SECO-LARM U.S.A., Inc.

  • Page 25: Resetting The Fingerprint Reader/Keypad

    2. Hold down the egress button and power the fingerprint reader/keypad on, continuing to hold down the egress button for at least 30 seconds after you hear 2 beeps and the LED turns orange. 3. After releasing the egress button, the LED will turn red indicating that the reset was successful. SECO-LARM U.S.A., Inc.

  • Page 26: Installer Notes

    New Master Programming Programming Code 123456 Code (6 digits) (must change): User's Name User ID User Code (4~6 digits) Fingerprint? NOTE: Copy this page to keep a record of user IDs and codes as you program them. SECO-LARM U.S.A., Inc.

  • Page 27: User Operation Of The Fingerprint Reader/Keypad

    Examples: (where "x" is any random digit) • User code is 1234, enter • User code is 987654, enter • User code is 2345, enter SECO-LARM U.S.A., Inc.

  • Page 28: Troubleshooting

    IMPORTANT: Users and installers of this product are responsible for ensuring that the installation and configuration of this product complies with all national, state, and local laws and codes related to locking and egress devices. SECO-LARM will not be held responsible for the use of this product in violation of any current laws or codes.
