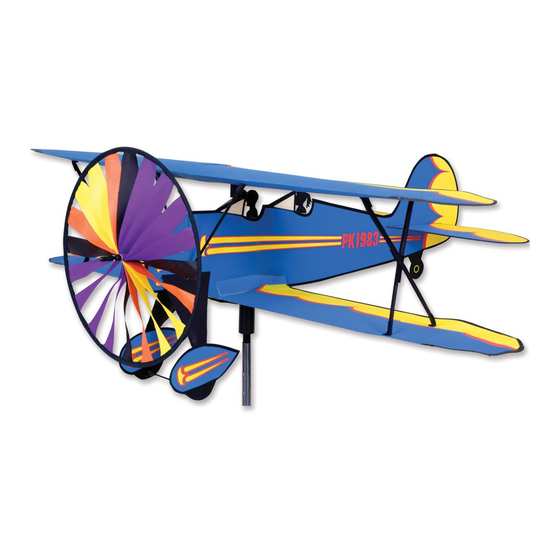

Premier designs Wind Garden Biplane Spinner Assembly Instructions

WindGarden
b y p r e m i e r d e s i g n s

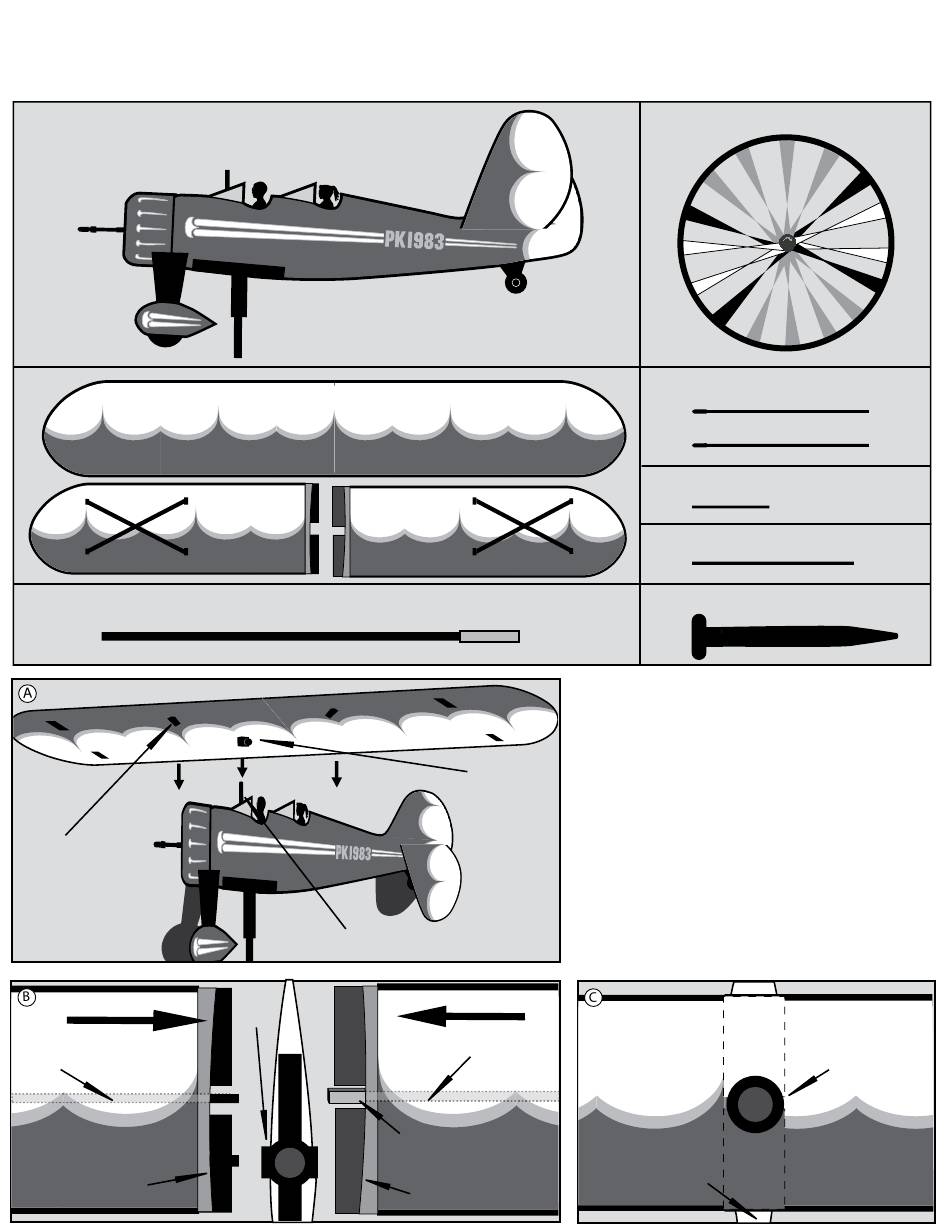

Plane Fuselage x 1
Wing x 3
Top Wing
Bottom Wings
Support Pole x 1
Diagonal
Plastic Fittings
Bottom View
Internal Wing
Strut
Velcro Tab
Left Wing
Vertical Support Rod
Main
Fuselage
Hub
Aluminum
Ferrule
Velcro Tab
Biplane Spinner
Step 1
Slide the top wing's "T" Fitting Thumb Screw onto the Internal
Vertical Support Rod. Be sure to tighten the top wing's "T"
Fitting Thumb Screw to secure the wing to the fuselage. Make
sure the wing is fully seated on the Vertical Support Rod.
(diagram A)
"T" Fitting
Thumb
Step 2
Screw
Insert the Aluminum Ferrule attatched to the Internal Wing
Strut of the bottom Right Wing through the square opening of
the Main Fuselage Hub. Then insert the bottom Left Wing's
Internal Wing Strut into the Aluminum Ferrule, which is inside
the channel of the Main Fuselage Hub. (diagram B )
Step 3
Secure the bottom wings to the fuselage with the Velcro tabs
on both the top and bottom of the Left and Right Wings.
(diagram C)
Bottom View
Internal Wing
Strut
Left Wing
Right Wing
assembly
instructions
Spinner Propeller x 1
Landing Gear Struts x 2
Landing Gear Wheel Axle x 1
Stabilizer Cross Strut x 1
Ground Stake x 1
Velcro
Tab
Main Fuselage
Hub
Velcro
Tab
Fuselage
Right Wing
