Use and Care Manual
10−07 Litho in U.S.A. (mo)

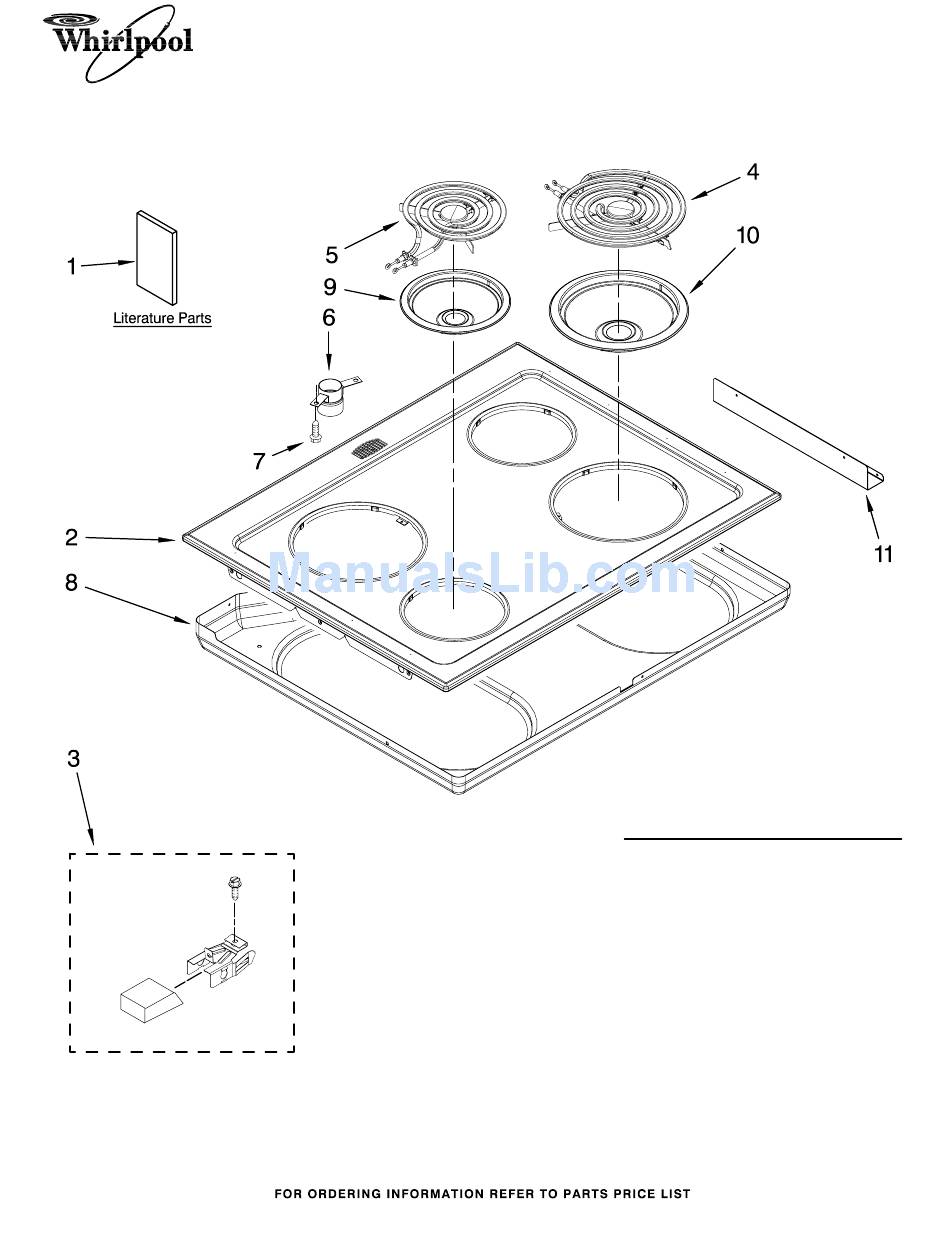

COOKTOP PARTS
For Models: RY160LXTS0
(Stainless Steel)
1
Illus.
Part
No.
No.
DESCRIPTION
1
Literature Parts
W10165716 Use & Care Guide
W10166918 Wiring Diagram
W10165721 Installation
Instructions
2
74011071 Cooktop, (Black)
3
12001676 Kit, Hardware
4
74007159 Element RF/LR(2)8"
5
74007158 Element LF/RR(2)6"
6
74005759 Tube, Vent Upper
7
74003357 Screw (4)
8
74006046 Bottom, Burner Box
9
74001212 Bowl, Drip(Chr 6")
10
74001213 Bowl, Drip(Chr 8")
11
74010894 Bracket,Burner Box
Part No. W10168891 Rev. A
30" Slide−In
Electric Range
Advertisement
Related Manuals for Whirlpool RY160LXTS0
Summary of Contents for Whirlpool RY160LXTS0
- Page 1 10−07 Litho in U.S.A. (mo) COOKTOP PARTS For Models: RY160LXTS0 (Stainless Steel) 30" Slide−In Electric Range Illus. Part DESCRIPTION Literature Parts W10165716 Use & Care Guide W10166918 Wiring Diagram W10165721 Installation Instructions 74011071 Cooktop, (Black) 12001676 Kit, Hardware 74007159 Element RF/LR(2)8"...
-
Page 2: Control Panel Parts
DESCRIPTION 7730P011−60 Lens 2 W10168895 Panel, Control 7101P309−60 Screw, Switch (10) Switch, Infinte 7403P239−60 8" (RF/LR)(2) 7403P238−60 6" (LF/RR) (2) 5 W10169865 Control W/Overlay For Models: RY160LXTS0 (Stainless Steel) Illus. Part DESCRIPTION End Cap 74010835 Left Black 74010834 Right Black... -
Page 3: Chassis Parts
CHASSIS PARTS For Models: RY160LXTS0 (Stainless Steel) W10168891... - Page 4 74004223 Connector, Cable 74003040 Element, Broil 74004943 Sensor, Oven 16 W10165822 Tube, Vent Lower 74010886 Tube, Vent Upper 71001394 Screw (4) CHASSIS PARTS For Models: RY160LXTS0 (Stainless Steel) Illus. Part DESCRIPTION 74010817 Holder, Vent Tube 74008597 Smoke Eliminator 21 W10165724 Plate, Smoke Elm.
-
Page 5: Door Parts
74011457 Baffel, Retainer 74001530 Screw 8AB 1/2 74003645 Glass, Inner (2) 74005546 Spacer, Rubber 74001574 Nut, Snap (4) 74011456 Lining, Door W10168891 DOOR PARTS For Models: RY160LXTS0 (Stainless Steel) Illus. Part DESCRIPTION 74011458 Bracket, Glass (2) 74003647 Insulation, Door Y700502 Screw... - Page 6 DRAWER AND RACK PARTS Illus. Part DESCRIPTION 74001757 Rack, Oven (2) 74008333 Drawer, Storage 74004310 Screw, Panel 74010896 Bracket, Drawer For Models: RY160LXTS0 (Stainless Steel) Illus. Part DESCRIPTION 7760P229−60 Panel, Dwr (SS) 74001530 Screw, Panel 74005230 Nut, Lock 2404F030−51 Lining, Drawer 74005546 Spacer, Rubber Illus.
- Page 7 14 Ga. 150 c 242825 Wire, Red 14 Ga. 150 c 242831 Wire, Red 14 Ga. 200 c 242827 Wire, Yellow 14 Ga. 150 c W10168891 For Models: RY160LXTS0 (Stainless Steel) Illus. Part DESCRIPTION REFINISHING MATERIAL 799832 Kit, Porcelain Repair (White) 242756 Touch−Up...
