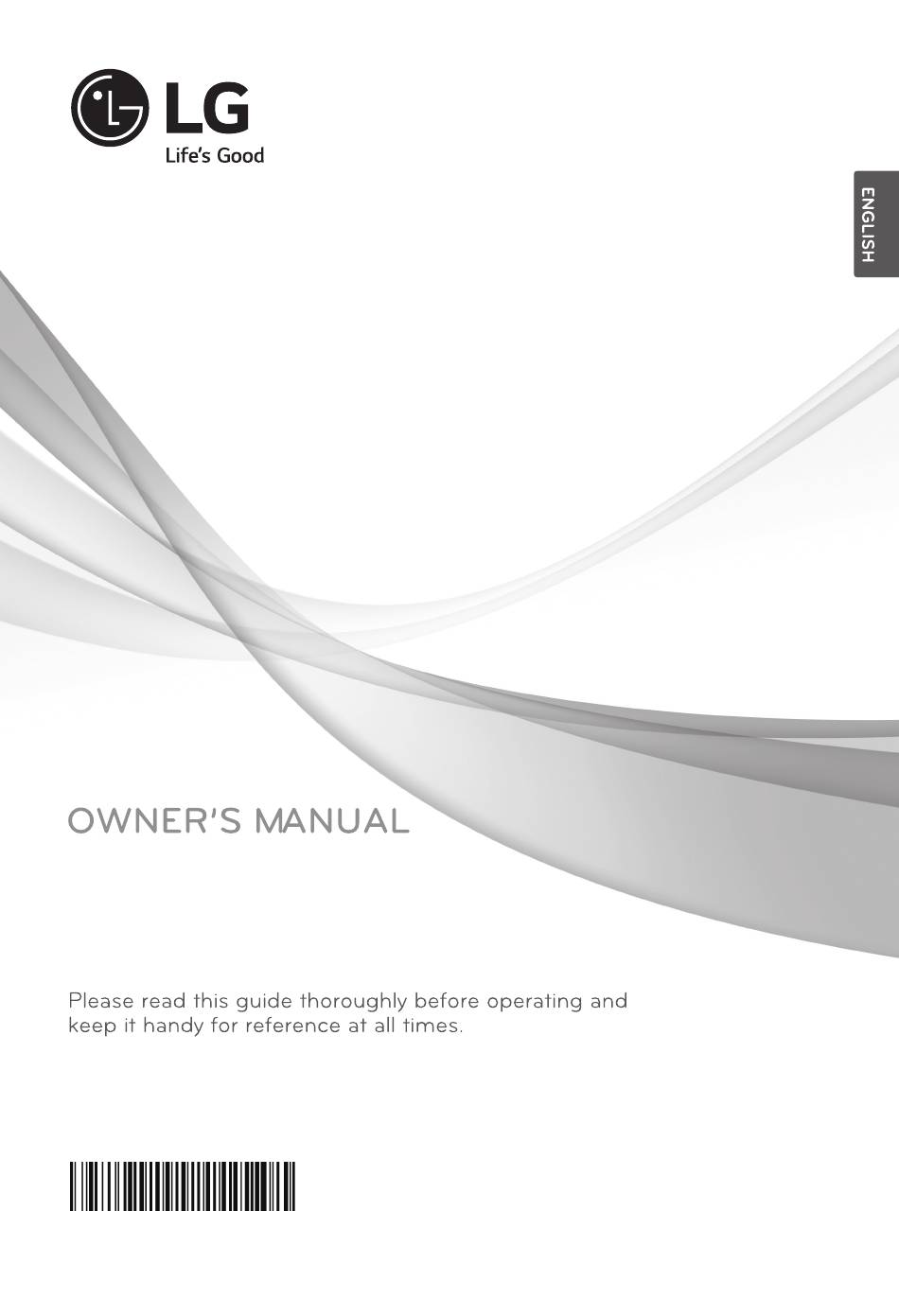

- Page 1 REFRIGERATOR FREEZER www.lg.com MFL62883357 Copyright © 2017 LG Electronics. All Rights Reserved. Rev.00_042517...
- Page 2 Refrigerator compartment Multi-Use compartment Freezer compartment SMART FUNCTIONS Using Smart ThinQ Application Using Smart Diagnosis™ Warranty...
- Page 4 The dedicated outlet should be used. • Using several devices at one outlet may cause fire. • The electric leakage breaker may damage food and the dispenser may be leaked. Do not allow the power plug to face upward or to be squeezed at the back of the refrigerator.
- Page 5 Do not allow the power cord bent or pressed by the heavy object to be damaged. It may damage the power cord to cause fire or electric shock. Do not extend or modify the length of the power plug. It causes electric shock or fire by the electric damage of the power cord or others.
- Page 6 When the power cord or the power plug is damaged or the holes of the outlet are loosed, do not use them. It may cause electric shock or short circuit to make fire. Wait for 5 minutes or longer when reconnecting the plug.
- Page 7 Do not place the lit candle within the fridge-freezer to deodorize. Do not use drier to dry the inside, nor light a candle to remove odor. It may cause explosion or fire. Don’t insert the hands into the automatic ice maker. (Only for the model with the automatic ice maker) It may cause injury.
- Page 8 Use the submerged refrigerator after checking it. It may cause electric shock or fir. In case of thunder and lightning, or not in use for a long period of time, detach the power plug. There is a danger of electric shock or fire. When gas is leaked, do not touch the refrigerator or the outlet and ventilate the room immediately.
- Page 9 Do not use the refrigerator for non-domestic purpose (storing medicine or testing material, using at the ship, etc.). It may cause an unexpected risk such as fire, electric shock, deterioration of stored material or chemical reaction. When disposing the refrigerator, remove the packing material from the door or take off the doors but leave the shelves in place so that children may not easily climb inside.
- Page 10 Violating this direction may cause injury or damage house or furniture. Always be careful, please. Do not touch food or containers at the freezer with wet hands. It may cause frostbite. When the electricity is off for long time, remove ice from the ice box.
- Page 12 Dairy Box(optional) Door Basket shelf Temperature Sensor Egg tray Vegetabel drawer Use to keep fruits 2L Bottle Door Basket and vegetables,etc. fresh and crisp Shallow drawer of Multi-Use Compartment Big drawer of Multi-Use Compartment (Bottom) Ice box Freezer Drawer Leveling screw Note Parts, features, and options vary by model.
- Page 13 1. Select a good location.Place your fridge-freezer where Keep it at a it is easy to use. proper distance More than 5cm to back 2. Avoid placing the unit near heat sources, direct sunlight or moisture. 3. To ensure proper air circulation around the fridge -freezer, please maintain sufficient space on both the sides as well as top and maintain at least 2 inches (5cm) from the rear wall.
- Page 14 Function display board Temperature adjustment button for Refrigerator compartment Temperature Adjustment button for Multi-Use compartment Temperature Adjustment button for freezer compartment Wi-Fi(This sets the refrigerator to connect to your home’s Wi-Fi network.) Hygiene Fresh Lock Button...
- Page 15 You can adjust temperature of the freezer compartment, refrigerator compartment and Multi-Use compartment. How to adjust the Refrigerator compartment temperature adjustment temperature in the refrigerator When you press” “ button, the temperature of Fridge compartment refrigerator compartment is repeated in the following Fridge order: 4°C →...
- Page 16 In order to save electricity when no food needs to be stored in the multi-use Multi-use compartment you can select the multi-use compartment ECO function, that is, “ECO” to turn off the multi-use compartment. To put the multi-use compartment in the stop state, press “ ”...
-
Page 17: Memory Feature
Setting Wi-Fi The Wi-Fi button, when used with the LG Smart ThinQ application, allows the refrigerator to connect to a home Wi-Fi network. • The Wi-Fi icon shows the status of the refrigerator’s network connection. The icon illuminates when the refrigerator is connected to the Wi-Fi network. -
Page 18: Refrigerator Compartment
Refrigerator compartment Shelf In order to store tall foods, move the shelves to change the height between them. Lift the inside of the shelf and pull it out to remove the shelf. Install the removed shelf at desired position. Note Remove the items on the shelf before moving it. - Page 19 Suggestion on food storage Location on foods Refrigerator Compartment Multi-Use Compartment Freezer Compartment...
- Page 20 Suggestion on food storage Suggestions Dairy Box (optional) Bottle door basket on refrigerator Store small packages Store water and beverage. storage of milk or spices. Shelf Vegetable drawer Store refrigerated food Store fruits and (The foods should be vegetables. kept a certain distance between each other and the air outlet should never be blocked by the foods.)
- Page 21 Suggestion on food storage Note When store vegetables and fruits, set the Multi-Use compartment temperature Multi-Use to 1-6°C. When store fish and meat for a short time, set the temperature to compartment below 0 . Therefore, always check the temperature setting before store foods.
-
Page 22: Vegetable Drawer
Care and maintenance Note shelf • Lift the inside of the shelf and pull it out to remove the shelf; • Wash the removed shelf with water and wipe it clean using a dry soft cloth; • Install the shelf in the reverse order. Door rack Grasp the door rack tightly with one hand and tap it from bottom with another hand to remove... - Page 23 Care and maintenance 1. Pull out the lower drawer of the Multi-Use compartment till it cannot move. The drawer 2. Remove the small drawer . of muti-use 3. Raise the whole set of drawers and then pull them out. compartment Take out the whole set of drawers;...
- Page 24 Care and maintenance Be sure to unplug the power. For products with a stainless steel exterior, use a clean sponge or soft cloth and a mild Detergent in warm water. Do not use abrasive or harsh cleaners. Dry thoroughly with a Soft cloth. Do not use appliance wax, bleach, or other products containing chlorine on stainless steel.
- Page 25 The Anti-Condensation pipe is installed around the front side of fridge-freezer as well as on the partition between fridge compartment and freezer compartment to prevent dewing. Especially after installation or when ambient temperature is high, the fridge-freezer may feel hot,which is quite normal. Replace Lighting specifications of this product: refrigerator compartment lamp power: DC12V;...
-
Page 26: Troubleshooting
Care and maintenance Trouble shooting Refrigerator does not run Wait for a while until the refrigerator compartment, Multi-Use compartment and freezer compartment reach the set temperature. Gaps may be formed on the refrigerator compartment door, Multi-Use compartment drawer or freezer compartment drawer The gaskets of the refrigerator compartment door, Multi-Use compartment drawer or freezer... - Page 27 Care and maintenance Care and maintenance Trouble shooting The freezer compartment Freezer temperature is set too is too cold but the cold. temperatures in other compartments are normal The refrigerator compartment Refigerator temperature is set too is too cold but the cold.
- Page 28 Care and maintenance Trouble shooting...
- Page 29 Care and maintenance Trouble shooting The door or drawer is closed with so Close the door or drawer gently. The door or drawer much force that other drawers and door are opened. is not closed tightly The drawer is stuck by packing bag or Remove the food that blocks the drawer The drawer is hard the food in the drawer is too heavy.
-
Page 30: Smart Functions
NOTE • To verify the Wi-Fi connection, check that Wi-Fi icon on the control panel is lit. • LG Smart ThinQ is not responsible for any network connection problems or any faults, malfunctions, or errors caused by network connection. • The machine supports 2.4 GHz Wi-Fi networks only. -
Page 31: Open Source Software Notice Information
In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to opensource@lge.com. - Page 32 SMART FUNCTIONS After the data transfer is complete, the service agent will explain the result of the Smart Diagnosis™. NOTE • Position the phone so that its microphone is aligned with the speaker hole. • The Smart Diagnosis™ sound is generated after around three seconds.
- Page 34 Regd. Office Address: A Wing ( 3rd Floor ), Regd. Office Address: A Wing ( 3rd Floor ), D-3 , District Center, Saket , New Delhi -110017 D-3 , District Center, Saket , New Delhi -110017...
