Symbol MicroKiosk MK1000 Manual

Symbol MicroKiosk MK1000 Manual

Hide thumbs Also See for MicroKiosk MK1000:
Table of Contents

Advertisement

Quick Links

Download this manual

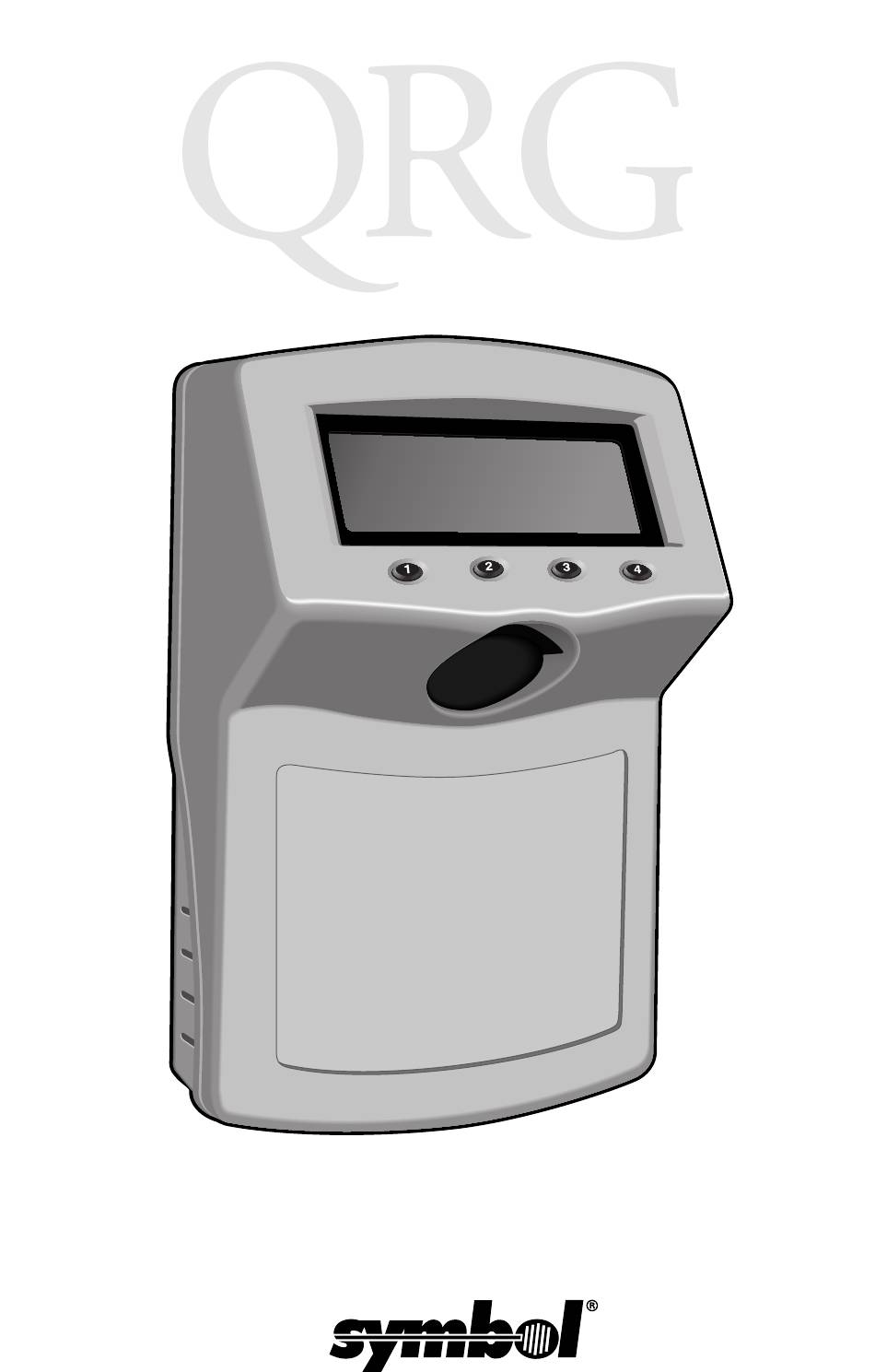

M
K
1
0
0
0
M
i
c
r
o
K
i
o
s
k

Advertisement

Table of Contents
loading

Related Manuals for Symbol MicroKiosk MK1000

Summary of Contents for Symbol MicroKiosk MK1000

  • Page 2 Symbol reserves the right to make changes to any product to improve reliability, function, or design. Symbol does not assume any product liability arising out of, or in connection with, the application or use of any product, circuit, or application described herein.

  • Page 3: About This Guide

    Q u i c k R e f e r e n c e Introduction The MK1000 is a scanning system that allows retail shoppers to easily verify prices on bar coded merchandise and obtain up-to- the-minute information on in-store promotions -- while they shop. The MK1000 does more than price verification.
  • Page 4 M K 1 0 0 0 Parts of the MK1000 Front View Function Buttons (4) Scan Window Label Cover Back View Power Port Com/Scanner Port LAN (Local Area Network) Port Mounting brackets (4) Lower Right Side Reset Button (R) Contrast Control (C)

  • Page 5: Function Buttons

    Q u i c k R e f e r e n c e Function Buttons The MK1000 has four programmable function buttons. These buttons can be programmed to allow the user to perform various tasks such as navigating through an application and making decisions when prompted.

  • Page 6: Bar Code Scanning

    M K 1 0 0 0 Bar Code Scanning The MK1000 automatically decodes a bar code presented in its field of view. It can decode all standard 1-dimensional bar codes plus PDF, micro-PDF, and composite bar codes. Scanning Modes The MK1000 operates in a number of different scan modes. Two of the most commonly used modes are described below.

  • Page 7: Specular Reflection

    Q u i c k R e f e r e n c e Specular Reflection When laser beams reflect directly back into the scanner from the bar code, they can “blind” the scanner and make decoding difficult. This phenomenon is called specular reflection. To avoid this, scan the bar code so that the beam does not bounce directly back.
  • Page 9 M K 1 0 0 0 Mechanical Setup and Installation The MK1000 can be connected to a host using one of the following four MK1000 communication interfaces. See the Product Reference Guide (p/n 72-53977-XX) for cable pinouts. Communication Interface Description Wireless Ethernet (2Mb or 11Mb RF) The MK1000 can communicate with a host via a wireless (RF) Ethernet con-...
  • Page 10 Q u i c k R e f e r e n c e Mounting the MK1000 on a Wall The MK1000 can be mounted on a wall, pole or counter top. Separately sold mounting accessories are listed below. • Wall Mount Kit •...
  • Page 11 M K 1 0 0 0 1. Install the mounting screws in the markings on the wall, leav- ing room for the mounting holes on the back of the MK1000 to slide onto. Ensure the screws are securely anchored to the wall.

  • Page 12: Ergonomic Recommendations

    • Improve work procedures. Regulatory Information All Symbol devices are designed to be compliant with rules and regulations in locations they are sold and will be labeled as required. Any changes or modifications to Symbol Technologies equipment, not expressly approved by Symbol Technologies, could void the user's authority to operate the equipment.

  • Page 13: Laser Devices

    Mexico - Restrict Frequency Range of: 2.450 - 2.4835 GHz. Statement of Compliance for radio devices Symbol Technologies, Inc., hereby, declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. A Declaration of Conformity may be obtained from http://www2.symbol.com/doc/...

  • Page 14: Scanner Labeling

    Q u i c k R e f e r e n c e Scanner Labeling LASERLICHT - NICHT IN DEN STRAHL BLICKEN. LASER KLASSE 2 LUMIÈRE LASER -NE PAS REGARDER DANS LE FAISCEAU APPAREIL À LASER DE CLASSE 2. CAUTION-LASER LIGHT. DO NOT STARE INTO BEAM.
  • Page 15 M K 1 0 0 0 In accordance with Clause 5, IEC 825 and EN60825, the following information is provided to the user ENGLISH HEBREW CLASS 1 CLASS 1 LASER PRODUCT CLASS 2 LASER LIGHT DO NOT STARE INTO BEAM CLASS 2 LASER PRODUCT DANISH / DANSK ITALIAN / ITALIANO...

  • Page 16: Warranty Coverage And Procedure

    Customer will pay for the replacement product in case it does not return the replaced product to Symbol within 3 days of receipt of the replacement product. The process for return and customer’s charges will be in accordance with Symbol’s Exchange Policy in effect at the time of the exchange.

  • Page 17: Service Information

    +44 118 945 7360 Customer support is available 24 hours a day, 7 days a week. For the latest version of this guide go to:http://www.symbol.com/ manuals. 72-52968-02 Revision A — March 2002 Symbol Technologies, Inc. One Symbol Plaza Holtsville, NY 11742-1300...
