Summary of Contents for Pulse Lahaina 1030

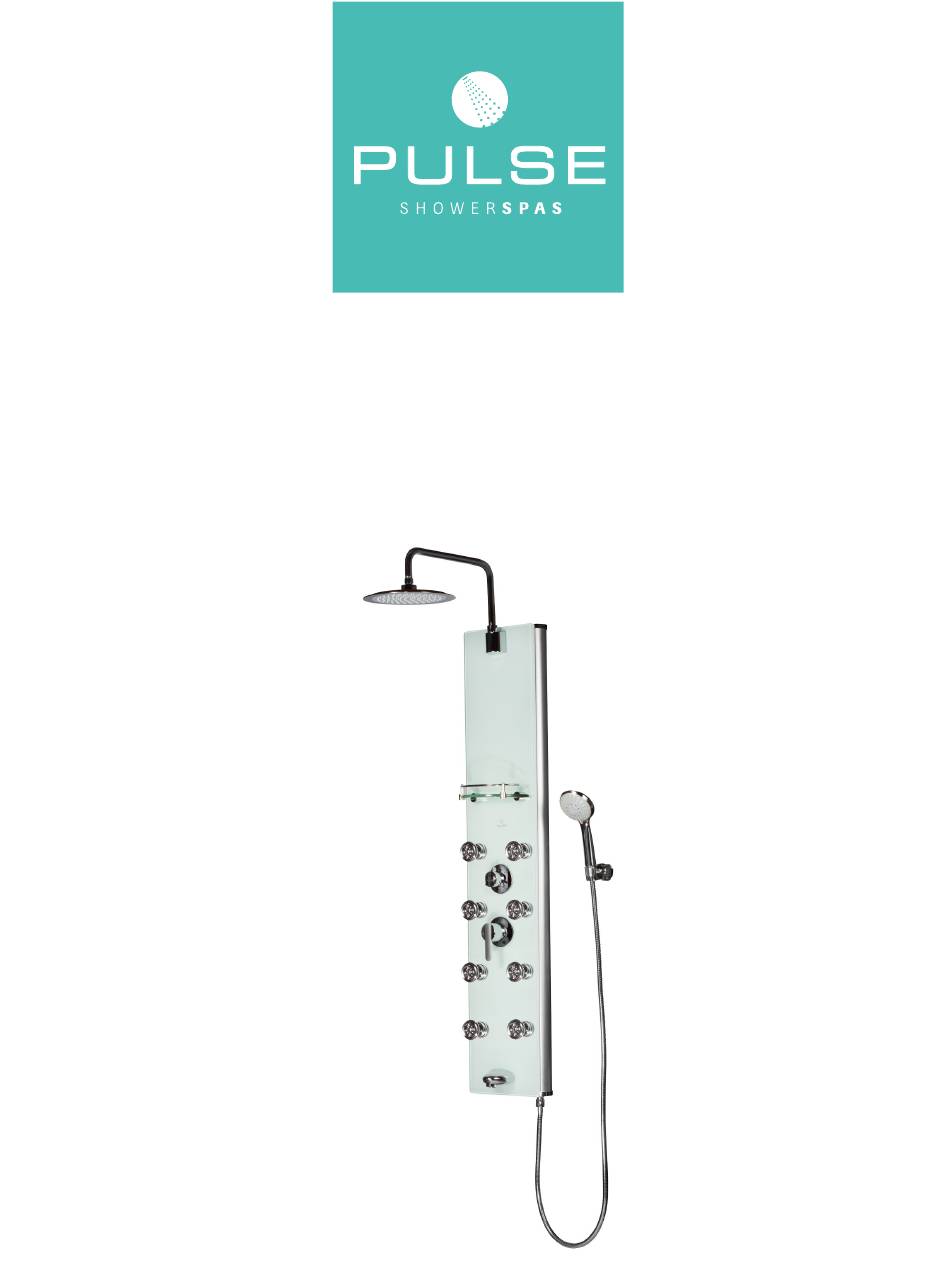

- Page 1 Lahaina ShowerSpa Model #1030 PW-91030-5425SF Owner's Manual...
- Page 2 Lahaina ShowerSpa/PW-91030-5425SF Please Read The Following Instructions COMPLETELY Before Beginning! Our goal is to ensure your installation goes smoothly and safely. Please read these instructions carefully and follow recommendations for plumbing and mounting. After reading instructions, if you determine you do not have the necessary skills and/or tools, we recommend that a licensed plumbing contractor complete the installation.
-
Page 3: Product Dimensions
Product Dimensions 9.5 in. - 241.3 mm Finished Wall Line 23.5 in. - 596.9 mm 4 in. - 101.6 mm Holes For Mount Bracket Holes For Mount Bracket 10.5 in. - 266.7 mm 2.5 in. - 63.5 mm... - Page 4 Parts Legend 1. ShowerSpa 5. Handheld Shower 9. Nylon Anchor ....(6) 2. Shower Head 6. Handheld Holder 10. Mount Bracket ....(2) 3. Shower Arm 7. Handheld Hose 11. Rubber Washer ....(3) 4. Shower Arm Bracket 8. Mounting Screw .... (6) 12.
- Page 5 Assembly After installing your ShowerSpa, some assembly is required prior to use. Attaching The Accessories 1. Locate the desired mounting location of the handheld holder (6) and mark the holes (we recommend placing it near the height of the glass shelf). Drill ¼" holes through wall surface using a masonry bit. Drill slowly through wall surface to avoid cracking and chipping.
-
Page 6: Installation - Retrofit
PULSE ShowerSpa model that covers the location of existing valve assembly—either single handle or two-handle type. If your PULSE ShowerSpa model does not cover this area, you will need to either choose another PULSE ShowerSpa model that does or make necessary repairs with appropriate materials (i.e. wallboard, tile, fiberglass, etc). - Page 7 Care and Maintenance Always blot dry any water from the surface of your ShowerSpa. To help protect your ShowerSpa from hard water stains and mineral deposits, use an auto spray wax periodically and wipe down your ShowerSpa after each use. Allowing water to evaporate on the surface can lead to a buildup of mineral deposits.
- Page 8 2. Remedy. If the Product does not conform to the above warranty, INCLUDING BUT NOT LIMITED TO LOST PROFITS OR BUSINESS Pulse, at its option, will repair or replace the Product, free of charge, INTERRUPTION, ARISING OUT OF OR RELATING TO THE or refund your purchase price.
