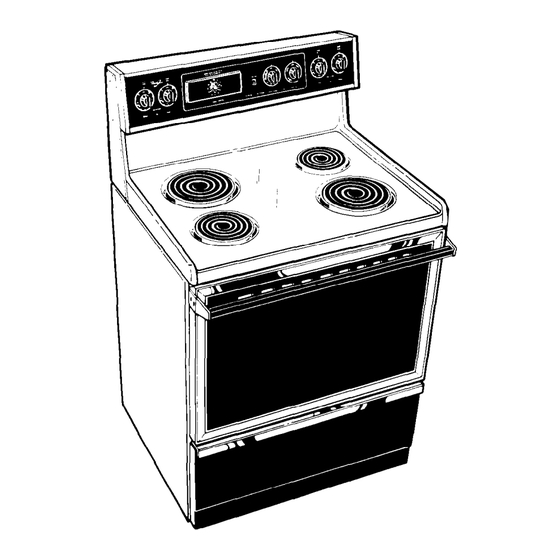

- Page 1 ELECTRIC RANGE Models RF313PXPT (Shown) RF310PXP RF31OOXP ~crowave Ovens, Trash Compactors, Room Au Condltloners. Oehumldlflers. Automatic Washers, Clothes Dryers. Freezers, Refrigerator-Free...
-
Page 2: Table Of Contents
Lift-Up Cooktop Oven Window. Oven Door Cleaning Chart Oven Light 9 It You Need Service or Assistance. al986 Whirlpool Corporation responslble for: in this Use & Care Guide and the the range to electrical supply and grounding. (See Instructionsl’) the range. -
Page 3: Important Safety Lnstructlons
I I’ SAFETY INSTRUCTIONS NOT allow children to use or play with any par-l of the range, or leave them unattended They could be burned or injured. store things children DO NOT might want above the range. Children could be burned or injured while climbing on it. -
Page 4: Parts And Features
Parts and features Models RF3100XP, RF310PXP and RF313PXPT SURFACE UNIT SIGNAL LIGHT CONTROL CONTROL KNOB CONTROL PANEL PLUG-IN SURFACE UNIT - MODEL AND SERIAL ti NUMBER PLATE SILICONE HEAT SEAL REMOVABLE STORAGE DRAWER - LITERATURE PAC (not shown) CLOCK/ MINUTE TIMER... -
Page 5: Using The Surface Units
OVEN TEMPERATURE OVEN SELECTOR CONTROL OVEN SIGiAL OVkN LIGHT LIGHT SWITCH Using the surface units Control knobs must be pushed in before turning them to a setting. They can be set anywhere between HI and OFF. Unttl you get used to the settings, use the tollowlng start cooking at the high settings;... -
Page 6: Optional Canning Kit
If you plan to use the cooktop for canning, we recommend the installation of a Canning Kit. Order the kit from your Whirlpool Dealer or Tech-Care” Service Company. See the “Cooking Guide”... -
Page 7: Using The Minute Timer
Using the Minute Timer The Minute Timer does not start or stop the oven. It works like a kitchen timer. Set it in minutes up to an hour. You will hear a buzzer when the set time is up. DO NOT PUSH IN THE KNOB when setting the Minute Timer. Without pushing it in, turn the Minute Timer Knob until the hand passes the setting you want. - Page 8 I I’ 2. Set Oven Selector to BAKE. 4. Put food in the oven. Note: Oven racks, walls and door will be hot. During baking, the elements will turn on and off to keep the oven temperature at the settlng. The Oven Slgnal Light will turn on and off with the elements.
-
Page 9: Broiling
Pull the Oven Temperature Knob straight off. 3. To lower the temperature, move a notch closer to LO. Each notch equals aboutlO”F (5°C). Broiling Position the rack before turning the oven on. See broil chart in the “Cooking Guide” or a reliable cookbook for recommended rack positions. - Page 10 3. Close the door to the Broil Stop position, (open about 4 inches, 10.2 cm). The door will stay open by itself. 5. When broiling is done, turn both the Oven Selector and the Oven Temperature Control to OFF. Custom Broil If food is cooking too fast, turn the Oven Temperature Control counterclock- wise until the Oven Signal Light goes off.
-
Page 11: Oven Vent
The Oven Vent Hot air and moisture escape from the oven through a vent under the right rear surface unit. You can cook on the unit, or keep food warm on it while the oven is on. CAUTION: Plastic utensils lett over the vent can mett. -
Page 12: Optional Rotisserie
Optional Rotisserie If you would like a rotisserie for your lower oven, you can order a kit (Part No. RCKBl-242985) from your Whirlpool Dealer. The kit includes easy installation instructions. 2. Lift drawer fro;t and push in until... -
Page 13: Caring For Your Range
Caring for your range Control Panel Pull knobs straight off. 2. Use warm soapy water and a soft cloth, or spray glass cleaner, to wipe the control panel. Rinse and wipe dry. 3. Wash control knobs in warm soapy water. Rinse well and dry 4. - Page 14 3. Pull the surface unit straight away from the receptacle. Replacing 3. Hold the surface unit as level as possible with the terminal just started into the receptacle. 4. Lift out the reflector bowl. See Cleaning Chart on page17 for cleaning instructions 2.
-
Page 15: Lift-Up Cooktop
CAUTION: Reflector bowls reflect heat back to the utensils on the surface unlts. They also help catch spills. When they are kept clean, they reflect heat better and look new longer. If a reflector bowl gets dlscolored, flat enough, or some may be too large tor the surface unlt. In either case, some of the heat that’s meant to go Into or around a utenstl goes down and heats the reflector bowl. -
Page 16: Oven Door
To replace the outer window: Fit the bottom tabs of the frame into the bottom of the window opening. Push the top of the frame into place while pushing down. The Oven Door Removing the oven door will help make it easier to clean the oven. Open the door to the first stop position. -
Page 17: Cleaning Chart
Cleaning Chart PART WHAT TO USE Soft cloth and warm soapy EXterl0r surlooes water. Nylon or plastic scouring pad for stubborn spots. Chrome Soft cloth and warm soapy water. Nylon or plastic cooktop scouring pad for stubborn sufiaoe spots. Surface unlts No cleaning required. -
Page 18: Oven Light
The Oven Light To turn the light on when the oven door is closed, push the Oven light switch on the console. Push it again to turn off the light. CIRCUIT BREAKER If you need service or assistance, we suggest you follow these four steps: Before calling for assistance... -
Page 19: Assistance
Whirlpool appliance. FSP replacement parts will fit right and work right, because they are made to the same exacting specifications used to build every new Whirlpool appliance. If you need service2.. Whirlpool a natlonwide network ot fran- chlsed TECH- CARE@ Service Companles. - Page 20 YLirlpool Home L /Appliances Making your world a little easier. Part No. 313288 Rev. C Printed in U.S.A. 01986 Whirlpool Corporation omatic Washers. Clothes Dryers, Freezers, Relrlgerator-Freezers. Ice Makers. DIshwashers, Bwlt-ln Ovens and Surface Units, Ranges. M...
