DESA INTERNATIONAL
INSTALLATION INSTRUCTIONS
FOR GA3700T/GA3650T/FA3700T
BLOWER ACCESSORY
This appliance is equipped with a three-prong (grounding) plug
for your protection against shock hazard and should be plugged
directly into a properly grounded three-prong receptacle.
(Check your owners manual for specific applications and additional instructions.)
Parts included with this kit:
Part No.
103581-01
101614-02
101398-02
104036-01
104038-01
M11084-26
M11084-38
103708-01
099123-01
099998-01
101584-04
101629-01
Tools Required
• Flat Blade Screwdriver
• Phillips Screwdriver
If any of these pieces are missing or damaged, contact the dealer where you purchased this
kit or DESA International at 1-800-972-7879 for referral information.
WARNING: ELECTRICAL GROUNDING INSTRUCTIONS
Description
Instruction Sheet

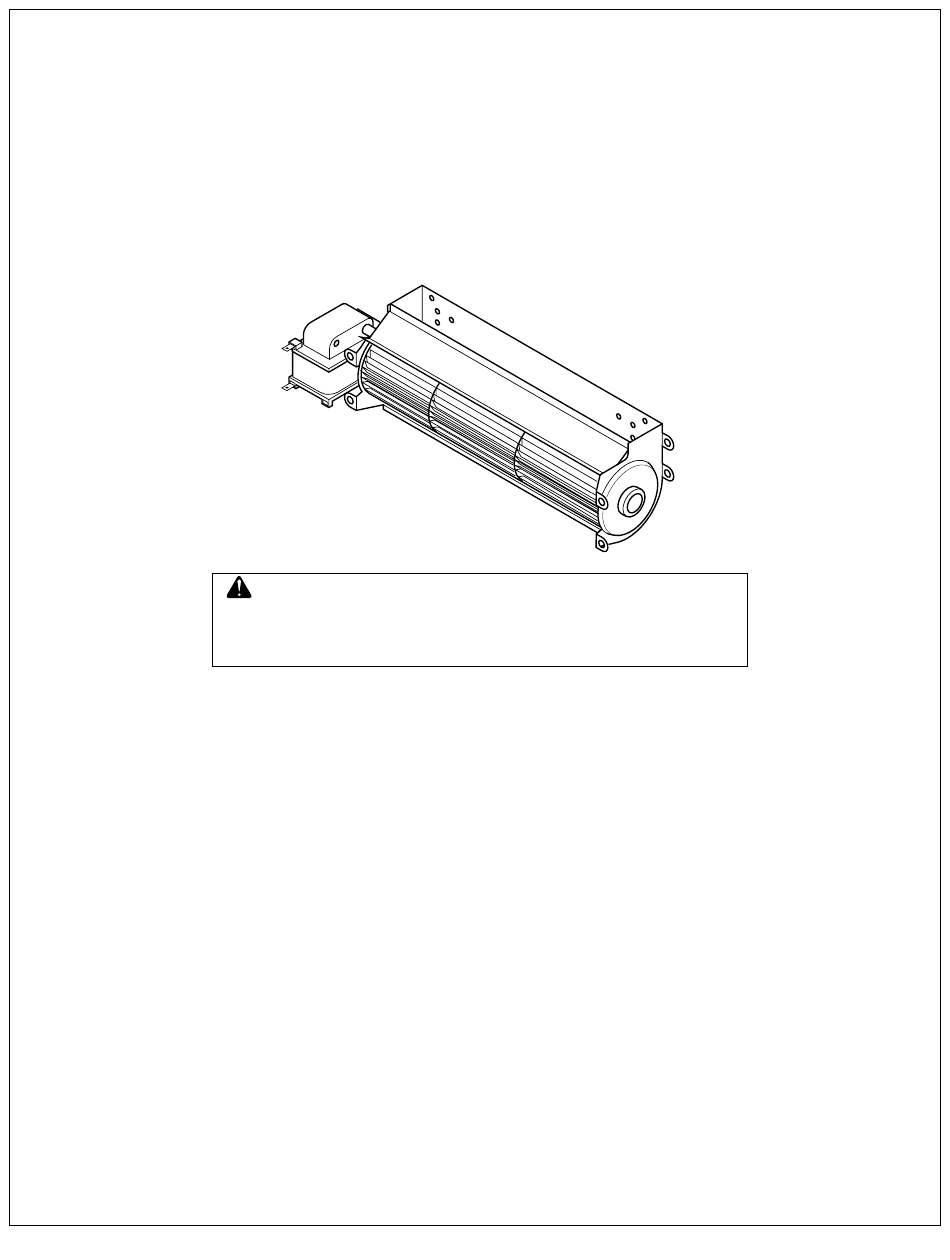

Blower
Switch and Cover Assembly
Wire Harness
Power Cord and Plate Assembly
Mounting Hardware Kit
(includes all parts below)
#10 x 3/8" sheet metal screws
#8 x 3/8" sheet metal screws
#6 x 1/4" sheet metal screws
Wire Clips
Fan Switch
Wiring Diagram Decal
Plastic Hole Bushing
Quantity
1
1
1
1
1
1
1
3
2
3
1
1
1
