Philips MCD388/98 Wall Mounting Instructions

Drill holes on wall at hole positions marked (no accessories provided with this template)
EN
What's in the supplied mounting kit
140 mm
1 x wall mount template
What else you'll need
Electric drill
•
2 x screws and dowels
•
Screwdriver
•
Pencil
•
Mount the main unit
Caution
•
To fi nd a suitable mounting location, make the necessary
physical and wireless connections.
•
Mount the main unit and speakers to a solid concrete
wall or plaster board wall only!
You can use the supplied bracket to mount the
main unit and speakers to the wall.
139 mm (54.8")
Wall mounting instructions
1

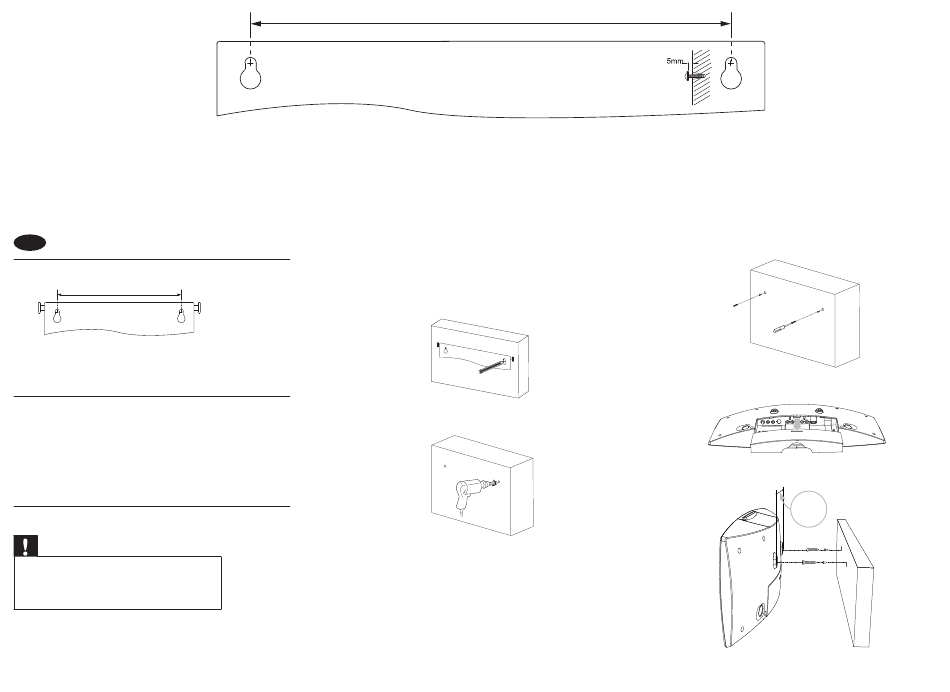

Align the template in the chosen location on
a wall. Use a pencil to mark the drilling posi-
tions.
2
Drill holes as marked.
3
Secure 2 supplied screws in the holes, but
leave 5mm between the screw head and
the wall.
4
Detach the table stand from the main unit.
5
Hook the main unit in place.
139MM
