Installation guide/Electronic part replacement (non-SIL devices only)
Liquid Level Switch
Type LLS 4000 / LLS 4000U
Warning! This is a Class A device. This
device may cause radio interference in
residential areas. In case of interference,
the operator may be required to take
appropriate measures. This instrument
has to be mounted on a metallic tank.
The device is intended to be used in
industrial areas.

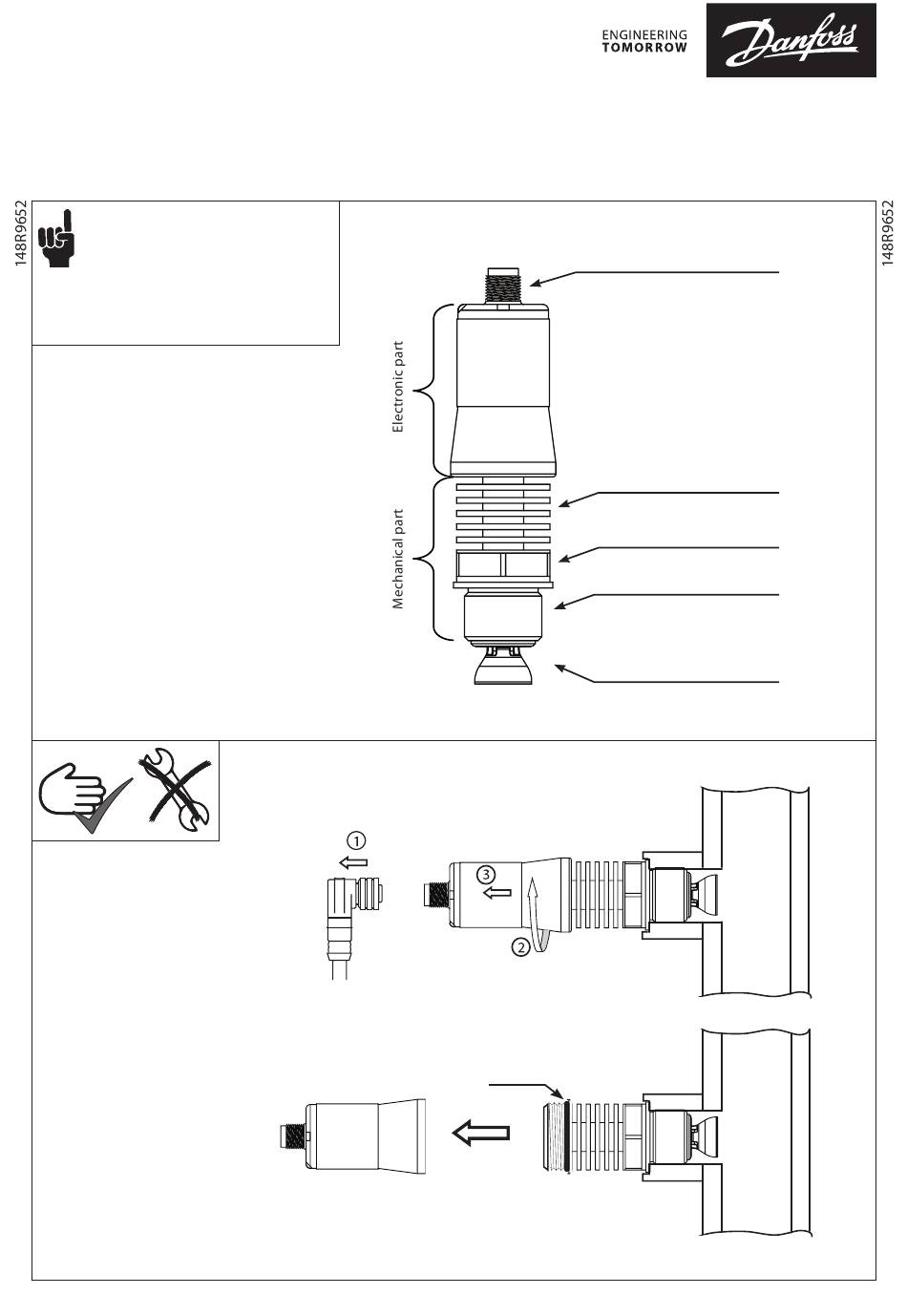

Fig. 1
Fig. 2
© Danfoss | DCS (ms) | 2020.03
M12 male Electrical
connector
Heat sink (do not cover)
Hexagon 32 mm
Process connection
G ¾" or ¾" NPT
Liquid sensing part
O-ring
Cover disassembled LLS
to avoid any access of
particles, moisture or
dirt
AN331327770735en-000101 | 1
