5−07 Litho in U.S.A. (rek)

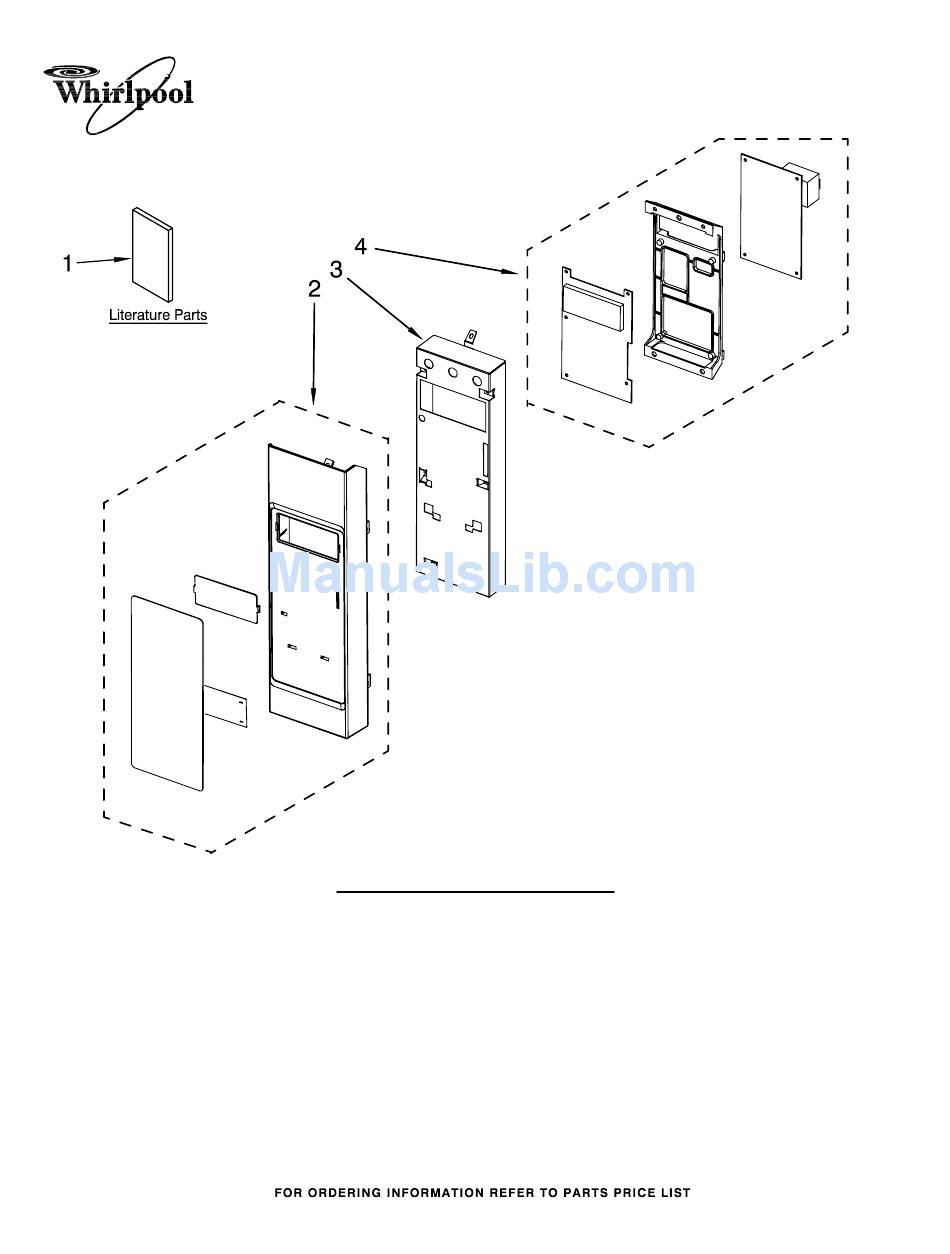

CONTROL PANEL PARTS
For Models: MH1170XSB2
Illus.
Part
No.
No.
DESCRIPTION
1
Literature
W10110883 U & C Guide
W10110890 Tech Sheet
8205885 Cook Guide Label
2
Panel Asy, Control
Includes Lens and
Membrane Switch
8206363 Black
3
8206361 Bracket, Control
4
8206360 Microcomputer
(BLACK)
1
Microwave Oven
1.7 Cu. Ft.
Part No. W10139633 Rev. A
Advertisement
Related Manuals for Whirlpool MH1170XSB2
Summary of Contents for Whirlpool MH1170XSB2
-
Page 1: Control Panel Parts
CONTROL PANEL PARTS 5−07 Litho in U.S.A. (rek) For Models: MH1170XSB2 (BLACK) Illus. Part DESCRIPTION Literature W10110883 U & C Guide W10110890 Tech Sheet 8205885 Cook Guide Label Panel Asy, Control Includes Lens and Membrane Switch 8206363 Black 8206361 Bracket, Control... -
Page 2: Door Parts
DOOR PARTS For Models: MH1170XSB2 (BLACK) Illus. Part DESCRIPTION COMPLETE DOOR 8206395 Black 8206181 Screw Handle W10114515 Black W10139633... - Page 3 INTERIOR AND VENTILATION PARTS For Models: MH1170XSB2 (BLACK) W10139633...
- Page 4 INTERIOR AND VENTILATION PARTS For Models: MH1170XSB2 Illus. Part 1 W10139751 Reflector, Lamp 8206232 Lamp 8206374 Holder, Lamp 8206229 Filter, Grease 8206386 Plate, Bottom 8206376 Glass, Lamp 8206375 Holder, Glass 8206345 Switch, Micro 8206347 Switch, Micro 8169438 Spring, Interlock 8183824 Plate, Cam...
- Page 5 4393681 Lamp 8206371 Cover, Side Inlet 5 W10114550 Motor, Fan Assy 6 W10107800 Shield 7 W10138797 Air Guide W10139633 AIR FLOW PARTS For Models: MH1170XSB2 (BLACK) Illus. Part DESCRIPTION 8206230 Filter, Charcoal 9 W10110862 Mounting, Nut (2) 8206625 Channel, Air...
-
Page 6: Turntable Parts
Illus. Part DESCRIPTION 8206389 Cover, Inlet Includes Nails and Bushings 8206118 Hook, Rack (4) TURNTABLE PARTS For Models: MH1170XSB2 (BLACK) Illus. Part DESCRIPTION 3 W10138801 Plst. Rivet(4pcs) 4393799 Turntable 8206227 Ring, Turntable 8206228 Driver, Turntable Illus. Part DESCRIPTION 8183953 Motor, Turntable... - Page 7 CABINET AND INSTALLATION PARTS Illus. Part DESCRIPTION 8206315 Plate, Mounting 8206385 Support, Wire Clip 8206442 Damper Assembly 8206388 Cord, Power W10139633 For Models: MH1170XSB2 (BLACK) Illus. Part DESCRIPTION Case, Outer 8206338 Black Grille, Vent 8206391 Black 8206336 Plate, Damper Illus.
