Preparation with an Accessory Storage Drawer
As needed, see the Standard Mount Installation Preparation OR Flush Mount Installation Preparation for
configuration details. Note the modified cutout height below.
PREPARE THE OPENING (cont.)
The Advantium Built-In Oven can be installed in combination with other Monogram appliances. Always follow each
product's Installation Instructions to complete the installation.

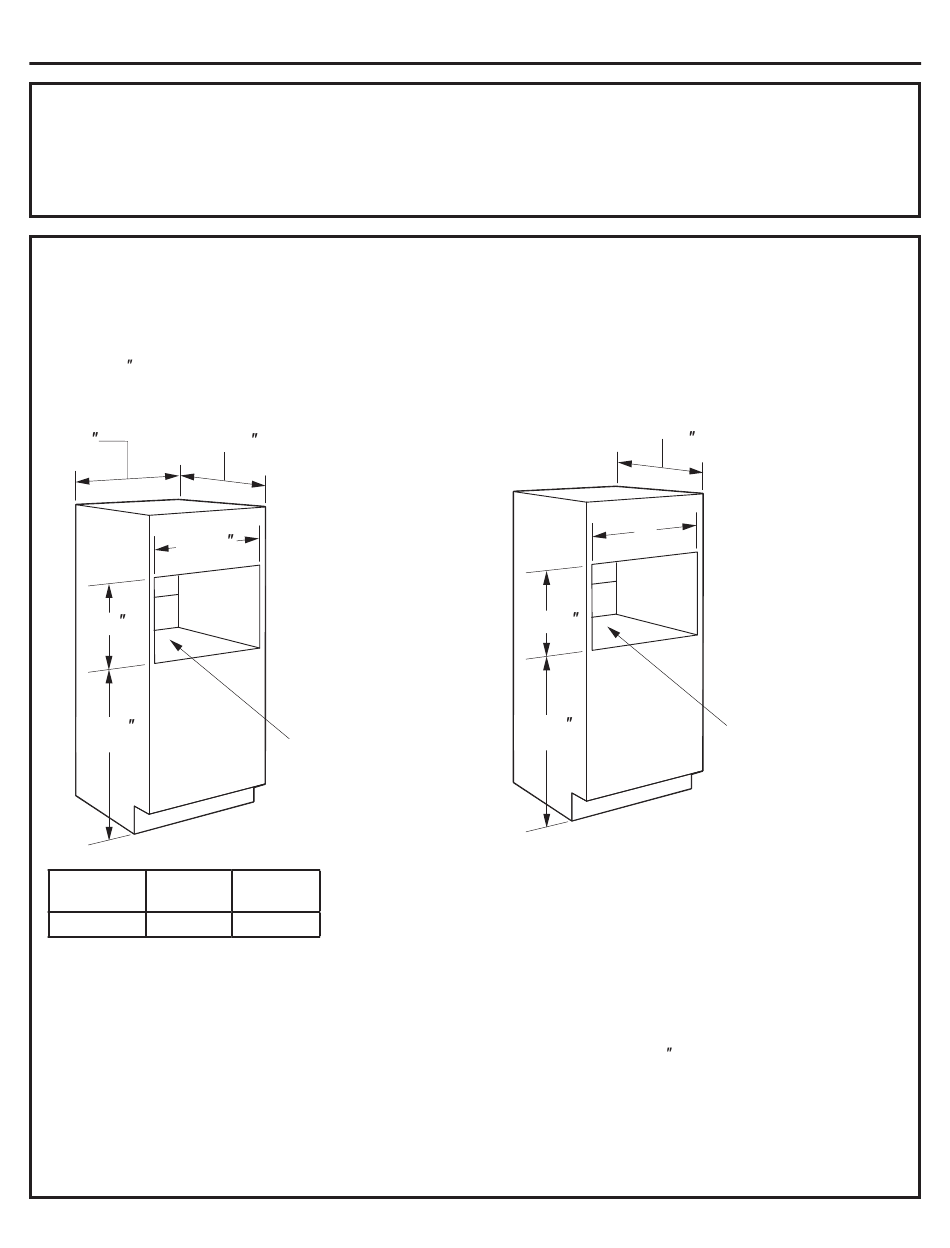

Single Advantium Built-In Oven Installation:
Order a 30 wide single oven cabinet or cut the opening in a wall to the dimensions shown.
STANDARD MOUNT:
30
23-1/2
25-1/4
Min.
21
36-3/4
Min.
Dimension 1/8"
Reveal
K 30"
31-7000079 Rev.0
Installation Preparation
Construct
solid bottom - Min.
3/8" plywood
supported
on all four sides.
Must be able to
support weight
of oven and
contents.
1/4"
Reveal
30-1/4"
FLUSH MOUNT:
23-1/2
K*
23 5/8
36-3/4
Min.
• When installed over a storage drawer, make the
bottom cleat height 3/4".
• Allow 2-3/8" clearance on the sides, 1-7/8" clearance
on the top and 1-1/8" clearance on the bottom of the
opening for all models.
• Oven overlaps will conceal cut edges on all sides of
the opening.
• When installed over a single oven or a warming
drawer, allow at least 2 between the two openings.
This separation will provide clearance for bottom
overlap of the Advantium Built-In Oven and the other
appliance overlaps.
• The support must be level and rigidly mounted, flush
with the bottom edge of the cutout.
Construct
solid bottom - Min.
3/8" plywood
supported
on all four sides.
Must be able to
support weight
of oven and
contents.
