PLEASE READ BEFORE OPERATING THIS EQUIPMENT
This product is manufactured and sold by Curtis International Ltd.
RCA, the RCA logo, the two dogs (Nipper and Chipper) logo, are registered trademarks
or trademarks of RCA Trademark Management and are used under license by Curtis
International Ltd. Any other product, service, company, trade or product name and logo
referenced herein are neither endorsed nor sponsored by RCA Trademark Management or
its affiliates.
ROKU, STREAMING STICK and the ROKU logo are the trademarks or registered
trademarks of Roku, Inc.
MODEL NO.:

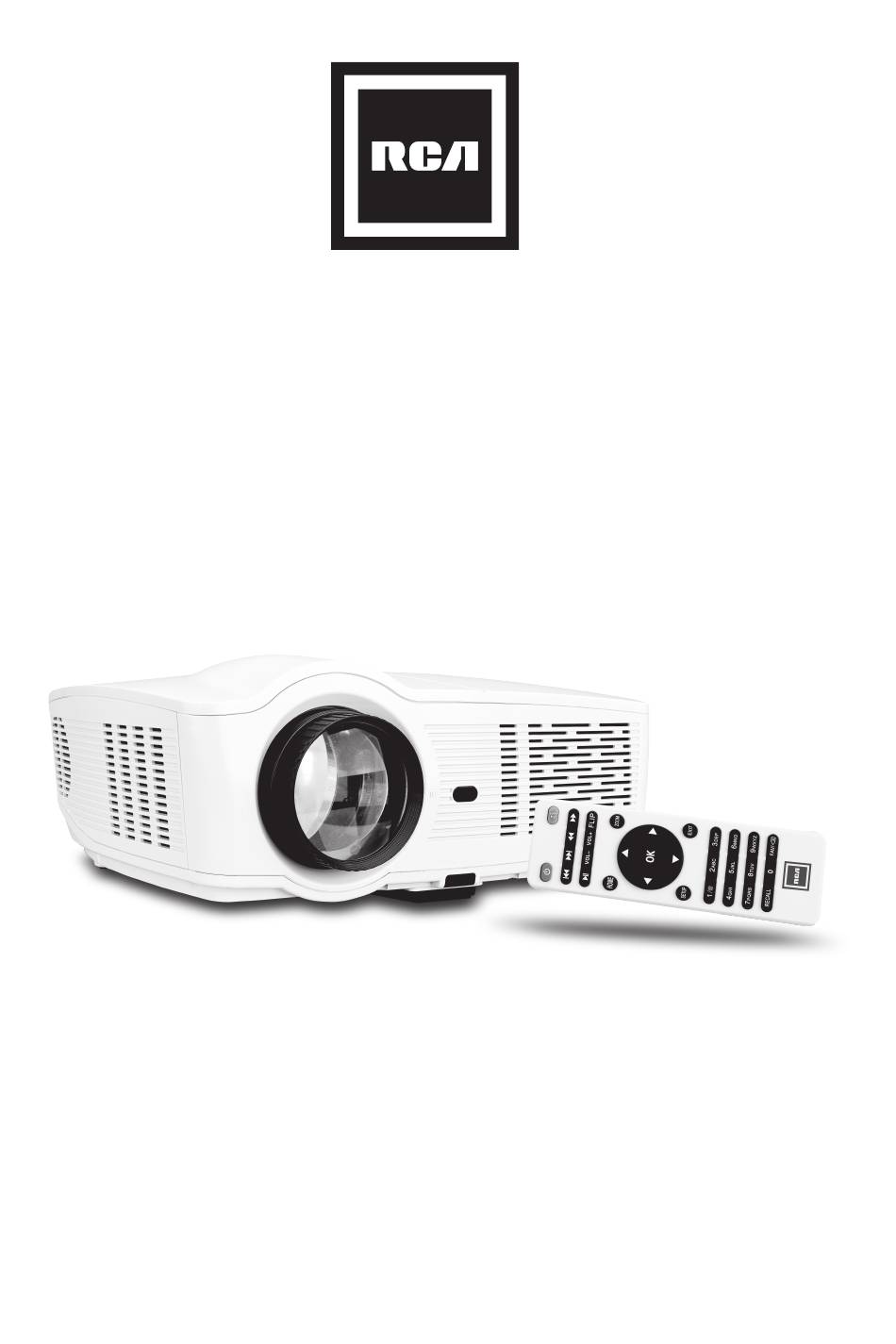

Standard HD Projector
Includes Roku
INSTRUCTION MANUAL
RPJ135
Streaming Stick
®
®
Advertisement
Table of Contents
Related Manuals for RCA RPJ135
Summary of Contents for RCA RPJ135
- Page 1 PLEASE READ BEFORE OPERATING THIS EQUIPMENT This product is manufactured and sold by Curtis International Ltd. RCA, the RCA logo, the two dogs (Nipper and Chipper) logo, are registered trademarks or trademarks of RCA Trademark Management and are used under license by Curtis International Ltd.
- Page 2 For Portable Projector Read these Instructions. Keep these Instructions. Heed all Warnings. Follow all instructions. Do not use this apparatus near water. Clean only with a dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifier) that product heat.
- Page 3 For Portable Projector Do not look directly into the projector light. Don’t touch the projector lens Mains adapter is used as disconnect device and it should remain readily operable during intended use. In order to disconnect the apparatus from the mains completely, the mains plug should be disconnected from the mains socket outlet completely.
-
Page 4: Fcc Warning
PQRS WXYZ This product is manufactured and sold by Curtis International Ltd. RCA, the RCA logo, the two dogs (Nipper and Chipper) logo, are registered trademarks or trademarks of RCA Trademark Management and are used under license by Curtis RECALL International Ltd. -
Page 5: Table Of Contents
Table of Contents Important Safety Instructions - - - - - - - - - - - - - - - - - - - - - - - - - - - - Additional Warnings and Precautions - - - - - - - - - - - - - - - - - - - - - - P2 FCC Warning - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - P3 What's Included - - -... -
Page 6: Remove & Close The Lens Cover
Remove & Close The Lens Cover Close the lens cover when unit not using Remove the lens cover before using CLOSE REMOVE LENS COVER LENS COVER Placing Your Projector Your projector can be installed in four different configurations (see picture below): Front Table: Select this location with the projector placed near the floor in front of the screen. -
Page 7: Distance Between The Projector And Screen
Square /Rectangle It is recommended to move the projector as close to center of screen. Distance Between The Projector and Screen Measure the distance between the projector and where you want to position the screen. This is the projection distance. "... -
Page 8: Adjust The Vertical Location
Follow below picture to adjust the vertical location. SCREEN SCREEN PROJECTOR VERTICAL VERTICAL DIMENSION DIMENSION PROJECTOR SCREEN VERTICAL DIMENSION PROJECTOR Press the "PUSH" button (Button 3 page 9) to extend the front leg and adjust the vertical height of the projector. Adjust The Focus And Keystone Follow below picture to adjust the focus and trapezoidal screen. -
Page 9: Projector Remote
Projector Remote FLIP HOME SELECTOR ADJUST VOLUME SOUND EXIT SETUP EXIT PQRS WXYZ RECALL Tip: The Roku Streaming Stick uses a separate Roku remote, needed to control ® ® the streaming player. AAA / UM4 AAA / UM4 BATTERY DOOR Remove the battery compartment cover on the back of the remote by carefully sliding to open. -
Page 10: Controls Of Projector
Controls Of Projector PUSH 12 13 USB 2 HDMI 2 20 21 1. IR Sensor (Front Side) 12. VIDEO IN Jack 2. LENS 13. USB 1 Port ( Media Player) 3. ANGEL ADJ. Button 14. USB 2 Port (For charging the Roku Stick) 4. -
Page 11: Install Power Adapter
Install Power Adapter Follow below picture to connect power adapter Connect small end of adapter FIRST. Plug the adapter body to power outlet. The Projector Home Screen is show on the screen like the figure. Mains Socket USB 2 HDMI 2 - Press the button to switch on the unit, press again to turn off. - Page 12 Make your new Standard HD Projector smart! Stream almost anything across thousands of free or paid streaming channels including hit movies, popular shows, live TV, news, sports and more. NOTE: The Roku Streaming Stick may be pre-installed in select models." ®...
-
Page 13: Connect Hdmi
Connect HDMI Refer to the following picture to connect a set top box, a BD/DVD player or a streaming player to the HDMI input. 1. Turn off the unit before connect CABLE NOT INCLUDE HDMI cable. HDMI CABLE 2. After connecting, press the button to turn on unit and power indicator will light GREEN 3. -
Page 14: Connect Vga
Connect VGA Follow below picture to connect VGA cable and device. Turn off the unit before connect VGA cable. Press the button twice to turn off power of your projector before connection. After connect, press the button to turn on unit and power indicator will light GREEN. The Projector Home Screen will show. - Page 15 Connect Audio Output ( Aux Out / Line Out ) Follow below picture to connect audio cable and device. 1. Press the button twice to turn off power of your projector before connection. 2. Use audio cable to connect follow below figure. 3.
-
Page 16: Using Usb Playback (Media Player)
Using USB Playback (Media Player) Install USB device: (it needs insert the USB to this unit before enter to video, music and photo mode) Turn off the unit before install USB. Install the USB device into USB port. After connecting, press the button to turn on unit and the power indicator light GREEN. -
Page 17: Using Projector Menu 1.0
Using Projector Menu 1.0 In Projector Home Screen, use button to select SETUP icon and press button to enter. Or press SETUP button to enter. Picture Mode Standard Color Temper... Aspect This Picture menu showed on right upper of view screen. Noise Reduction MPEG_ Noise ... -
Page 18: Using Projector Menu 2.0
Using Projector Menu 2.0 In Projector Home Screen, use button to select SETUP icon and press button to enter. Or press SETUP button to enter. Press buttons to select Sound menu. Sound Mode Standard This sound menu showed on right upper of view screen. Balance Surround Sound TO SELECT... -
Page 19: Using Projector Menu 4.0
Use the button to show below information and press Native information PRESS OK SETUP button to return. ▽ Native inf… Model :RPJ135 SW Ver: 2.0 LOGO: RCA TM058-ET058 IC:MINILVDS MMM DD YYYY HH:MM:SS NOTE: MMM DD YYYY is representative date of software... -
Page 20: Specifications
Specifications White light output ANSI 146 lm White Brightness output ANSI 84 lm Color Light output ANSI 161.5 lm Display Native Resolution 1280 x 768 HDMI Input Supported 1080p, 1080i, 720p, 576i, 480p, and 480i Video Resolution. Included Adapter Input AC100-240V,50/60Hz Output DC 36V, 2A Display Color 16.7M... -
Page 21: Troubleshooting
TROUBLESHOOTING Before resorting the maintenance service, please kindly check by yourself with the following chart. 1. Power light is on. If it is not on, check the projector is plugged into the mains, that the socket is switched on, and then press the power button on the projector. - Page 22 To make a warranty claim, do not return this product to the store. Please email support@curtiscs.com or call 1-800-968-9853. 90 day Year Warranty This product is warranted to be free from defects in material and workmanship for a period of ninety (90) days from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product or component found to be defective, at our option;...
