Whirlpool '
Use and care
guide
UPRIGHT FREEZER
Model EEV 201 X
To help you get the most from your new freezer Before starting your freezer
.<efore you freeze the first apple pie,
you
will want to know
;Jl about your new Whirlpool freezer. That's what this Use
iInd Care Guide is all about. It tells
you
how to start it, fill it,
(lean it. even what to do if anything goes wrong. See handy
:;elf-scrcice
C/leek List
on
bacli page of simple problems you
(an solve yourself without the wasted time and possible ex-
Ijense of a needless service call. After all, who needs a service-
lnan to plug back in an electric cord that's been accidentally
l)ulled out?
1. Locate it properly - For best performance, your freezer
should be located in a cool, dry, well-ventilated place out of
the direct sunlight and away from such heat sources as radi-
ators. Allow space above and at the back of freezer for air
to circulate -~ at least 3" above and 1" at the back between
the condenser and the wall. Also, check the strength of your
floor. Make certain it can support the weight of the freezer
when loaded.
Before you use your freezer
l
Be sure your freezer is properly installed in an appropriate
level area and a place suitable for the size, function and
protection of the freezer.
2. Keep
it
level - Level your freezer by adjusting the two
leveling legs at the front corners. (Adjust door-hinge side
first. 1 Turn left to raise the corner; right to lower it. When
freezer is sitting level, the freezer door (when o,?ened) will
stay at any open position. After the freezer has been filled,
recheck to see if it is sitting level.
l
Properly connect to electricity.
. Remove the Consumer Buy Guide label before freezer is
used.
NOTE: Before turning freezer on, you may want to wash the
inside of the freezer with a solution of two tablespoons bak-
ing soda to a quart of warm water. Rinse thoroughly and dry.
To start freezer
l
Do not remove TECH SHEET fastened behind the base
grille. It contains technical information required by your
serviceman.
9 Do not permit children to operate or play with the
freezer.
l
REMEMBER: Use the appliance only for the job it was
designed to perform.
Electrical Connection - Your freezer should be connected to
its own individual outlet, one not controlled by a wall switch.
Make sure the outlet provides 120 volt, 60 Hz AC current.
For your safety, the power supply cord of the freezer is
equipped with a three-pronged grounding plug. It should be
plugged into a matching grounded three-pronged type wall re-
ceptacle. Attach retaining clip for cord plug. Do not remove
the ground prong. See electrical requirements and ground-
ing instructions sheet for complete information.
\

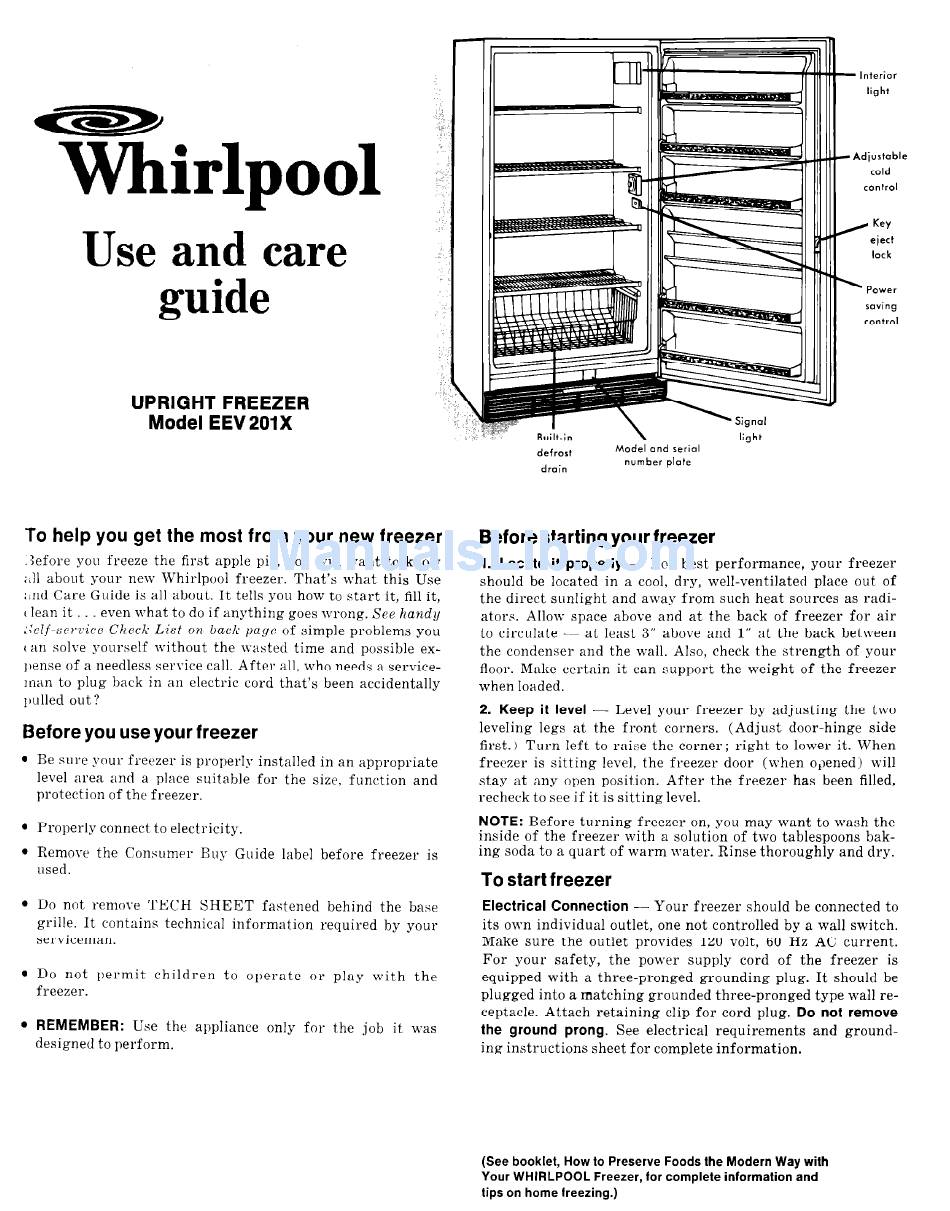

Interior
light
Built-in
defrost
drain
\ light
Model and serial
number plate
(See booklet, How to Preserve Foods the Modern Way with
Your WHIRLPOOL Freezer, for complete information and
lips on home freezing.)
