Use & Care Guide
Top rack
Upper
spray
arm
Top rack
adjuster
Spray
tower
Bottom
rack
Rack bumper
Detergent
Silverwaie
Heating
Do&
color
Access
color
basket
element
panel
panel
(not shown)
POWER CLEAN'"
module
(not shown)
Lower
-
spray arm
Overflow
-
protector
Model and
serial
number
label
(on right side)
UNDERCOUNTER
DISHWASHER
Model DU8570XT
Advertisement
Table of Contents
Related Manuals for Whirlpool DU8570XT
Summary of Contents for Whirlpool DU8570XT

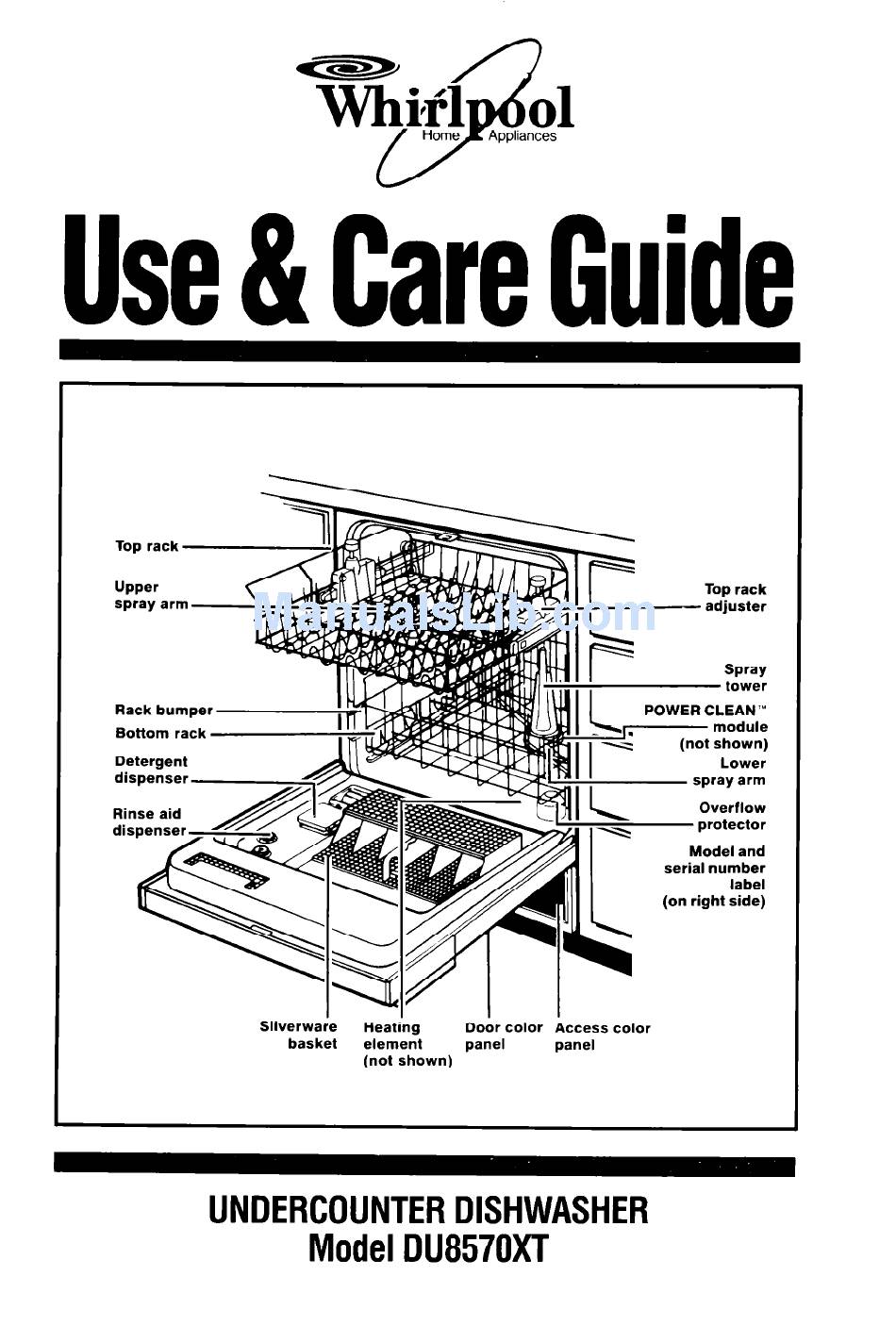

- Page 1 Upper spray Rack bumper Bottom rack Detergent Silverwaie basket UNDERCOUNTER Heating Do& color element panel (not shown) DISHWASHER Model DU8570XT Top rack adjuster Spray tower POWER CLEAN’” module (not shown) Lower spray arm Overflow protector Model and serial number label...
-
Page 2: Table Of Contents
Common Dishwashing Problems If You Need Service Or Assistance Whirlpool Dishwasher Warranty 01990 Whirlpool Corporation Thank you for buying a Whirlpool Please complete and mail the Owner tration Card provided with this product. Then complete the form below. Have this informa- tion ready if you need service or call with a question. -
Page 3: Important Safety Instructions
Important Safety Instructions To reduce the risk of fire, electrical dishwasher, Read all instructions before the dishwasher. Properly connect to electricity and water. DISHWASHER MUST BE ELECTRICALLY GROUNDED. Read the Installation Instruc- lions for details. Be sure your dishwasher is installed on a level floor that will hold the weight, and in an area suitable for its size and use. -
Page 4: Starting Your Dishwasher
Operating Instructions Continued Starting your dishwasher Push a Cycle Selector Button for the desired cycle. Normal Wash, Low Energy Wash and Rinse & Hold Cycles share the same button. The Cycle Control Knob determines which cycle operates. 2. Push an Option Selector Button for each desired option. -
Page 5: What Happens In Each Cycle
What happens in each cycle Pots & Pans Cycle Maximum cleaning for cooked-on or baked-on foods. Timer delays while the dishwasher auto- matically heats the water to 145°F (63°C) in both washes and the last rinse (marked’). Cycle time** will be about 1% to 2 hours, depending on time needed to heat water. -
Page 6: What Happens In Each Option
Operating Instructions Continued Low Energy Wash Cycle For pre-rinsed or lightly soiled loads. Cycle time** is about 53 minutes plus the time needed to heat the water if the Hi-Temp Wash Option is selected. Wash Rinse Rinse What happens in each option Hi-Temp Wash When this option is selected, water for the main... -
Page 7: Proper Loading
Proper Loading Cup and glass load Mixed load Preparation for loading It is not necessary to rinse dishes putting them into the dishwasher. remove large pieces, bones and other hard items. The POWER CLEAN TM Module will remove food particles from the water. It contains a chopping device which will reduce the size of food items. - Page 8 Proper Loading Continued Adjustable top rack The top rack does not have to be level. Raise or lower one or both sides to help fit tall items in the top or bottom rack. Turn knob clockwise to raise a side. Turn knob counterclockwise Lower Bottom...
- Page 9 Silverware basket loading Load forks and spoons so they don’t nest together. Spray can’t reach nested items. Mix items in each section of the basket. Small items - baby bottle caps, jar lids, etc. -can be put In any section. The silverware basket can be loaded while it’s in place on the door, or it can be taken out for loading on the counter or table.
-
Page 10: Adding Detergent And Rinse Aid
Adding Detergent And Rinse Aid Powdered dishwasher See phosphorus content on product Cover Cover Normal Wash Cycle Use both &tions Pots 8 Pans Cycle What kind of detergent Use automatic Other detergents are too mild and much too sudsy to work in the dishwasher. Different brands of dishwasher detergent have Liquid different amounts of phosphorus for softening... - Page 11 Rinse aid dispenser A rinse aid helps keep water from forming droplets and drying as spots. Keep the dispenser filled with a rinse aid such as Jet-Dry.% A small amount is released automatically during the final rinse of each cycle. Check the dispenser periodically to see if it needs refilling.
-
Page 12: For Best Results
For Best Results Hot water is a must Hot water dtssolves and actrvates the dishwashrng detergent. Hot water drssolves grease on dishes and helps dry glasses spot-free. Make certain loads are washed in hot water (at least 140-F - 60°C). Two ways to have a reliable hot water supply... - Page 13 Energy saving tips You can help save energy if you: 1. Wash full loads. Running a half-filled dish- washer uses the same amount of electricity and hot water as a fully loaded machine. 2. Use the Low Energy Wash Cycle whenever possible.
-
Page 14: Common Dishwashing Problems
Common Dishwashing Problems Spotting and filming (hard water fIlmi Hard water Fill detergent dispensers to capacity. Use dishwasher detergent with highest available phos- phorus content. May be necessary to install water softener. To remove spots and film, try a vinegar rinse... 1. - Page 15 Dishes not washing clean Water is not hot enough Water temperature should be at least 140°F (60°C). Set water heater thermostat to a higher setting. Run water at sink until hot before starting and/or use Hi-Temp Wash Option. Improper loading Make sure dishes and glassware are loaded so spray reaches all surfaces and items drain properly.
-
Page 16: If You Need Service Or Assistance
A hard object has probably entered the POWER CLEAN’” Module. The sound should stop when the object is ground up. 2. If you need assistance!. Call Whirlpool COOL-LINE@ service ance telephone number. Dial free from anywhere in the U.S.: l-800-253-1301 and talk with one of our trained consultants. - Page 17 Whirlpool appliance. To locate FSP replacement parts in your area, refer to Step 3 above or call the Whirlpool COOL- LINE service assistance number in Step 2. 5. If you are not satisfied...
- Page 18 Notes...
- Page 19 POWER CLEAN”’ washing covered by your warranty Lower spray system parts Upper spray arm Spray tower Nozzle POWER CLEAN’” module motor...
-
Page 20: Whirlpool Dishwasher Warranty
C. Pick up and delivery. This product is designed to be repaired in the home. D. Damage to dishwasher caused by accident, misuse, fire, flood, acts of God or use of products not approved by Whirlpool. E. Any labor costs during limited warranties.
