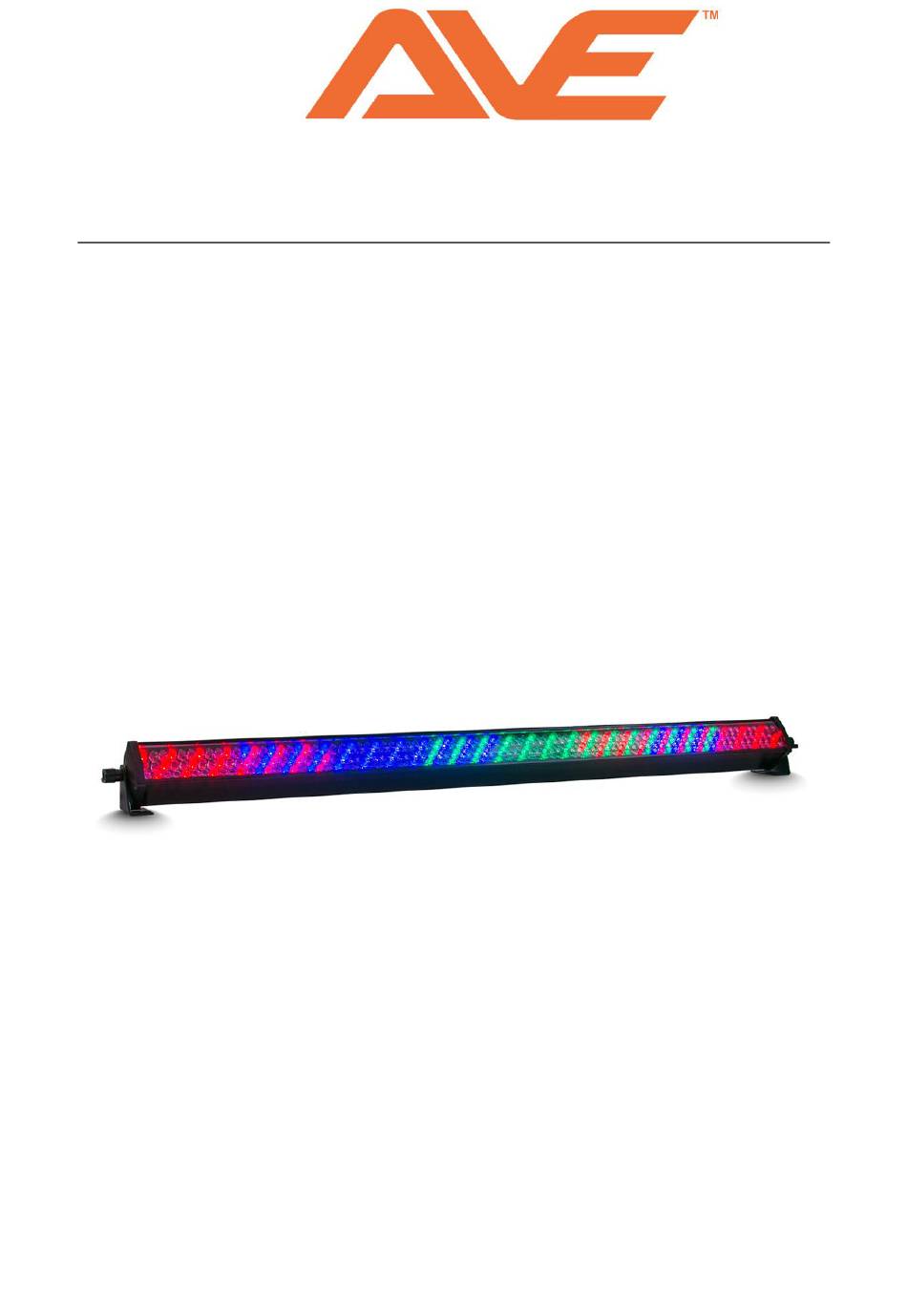

- Page 1 LEDBAR-252 User Manual...
-
Page 2: Table Of Contents
T able of Contents Safety ..................3 Important Safety Instructions ............3 Precautions..................4 Suspension ..................4 Mounting ..................4 Description ................5 ................Features Setup ..................6 ................Operation ................Menu Map ..............DMX Channel 7 - 8 Specifications................8... -
Page 3: Safety
Safety Important Safety Information WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT OVEREXPOSE THIS FIXTURE TO RAIN OR MOISTURE. WARNING: CONNECT ONLY TO MAINS POWER SUPPLY WITH A PROTECTIVE EARTHING CONNECTION. WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE THE REAR COVER OR ATTEMPT TO OPEN THE LIGHTING FIXTURE. -
Page 4: Precautions
Precautions If an AVE lighting fixture is used outdoors on a sunny day, ensure that it is in a shaded area and is well ventilated to help prevent overheating. Do not use AVE lighting fixtures in environments that are below 0°C OR exceed +40°C. -
Page 5: Description
Description The AVE LEDBAR-252 is a linear wash effect light that produces a great wash of colour, great for dance floors and washing flat surfaces. Fitted with 252 LEDs (84 Red, 84 Green, and 84 Blue) with 8 zones for eye catching effects and scrolling patterns. The tightly packed LEDs and colour placement allows for an even and vivid wash of colour on almost any surface. -
Page 6: Setup
If no sound is detected the fixture will ‘auto play’ the sequence / program at its preset speed. Operation To access the menus and functions of the LEDBAR-252, use the four (4) buttons located under the main LCD control screen. -
Page 7: Dmx Channel
DMX Channels 3 CH Control 24 CH Control 1 CH 0 – 255 1 CH 0 – 255 Dimmer (zone 1) 2 CH 0 - 255 Green 2 CH 0 – 255 Strobe (zone 1) 3 CH 0 – 255 Blue 3 CH 0 - 255... -
Page 8: Specifications
48 CH Control 24 CH 0 – 255 Auto Program (zone 4) 25 CH 0 – 255 Dimmer (zone 5) 26 CH 0 – 255 Strobe (zone 5) 1 CH 0 – 255 Dimmer (zone 1) 2 CH 0 – 255 Strobe (zone 1) 27 CH 0 - 255...
