3.6 Input Settings

Input Settings shows information about the current state
of operation of the GTP-860, and repeats much of the
same information shown on the GTP-860's front panel.
This menu should be the only part of the on-screen display
you might elect to use regularly after setup is complete,
as it allows you to easily see the operating mode from the
listening position.
Highlight INPUT SETTINGS in the SETUP menu and press
Select on the remote. You will see a screen similar to the
following :
INPUT SETTINGS
AUDIO = VIDEO 3
VIDEO = VIDEO 3
MODE = 5 CH STEREO
DYNAMIC RANGE = N/A
CENTER WIDTH=N/A
DIMENSION=N/A
DO NOT SAVE AND EXIT
SAVE AND EXIT
The available choices in each of the fields can be selected
with the Left or Right arrow buttons on the remote; con-
CHANNEL BALANCE
firm the choice with Select button.
LEFT : 0dB
CENTER : - 3dB
RIGHT : 0dB
REAR R : 0dB
surround
rear left
2-3 ft.

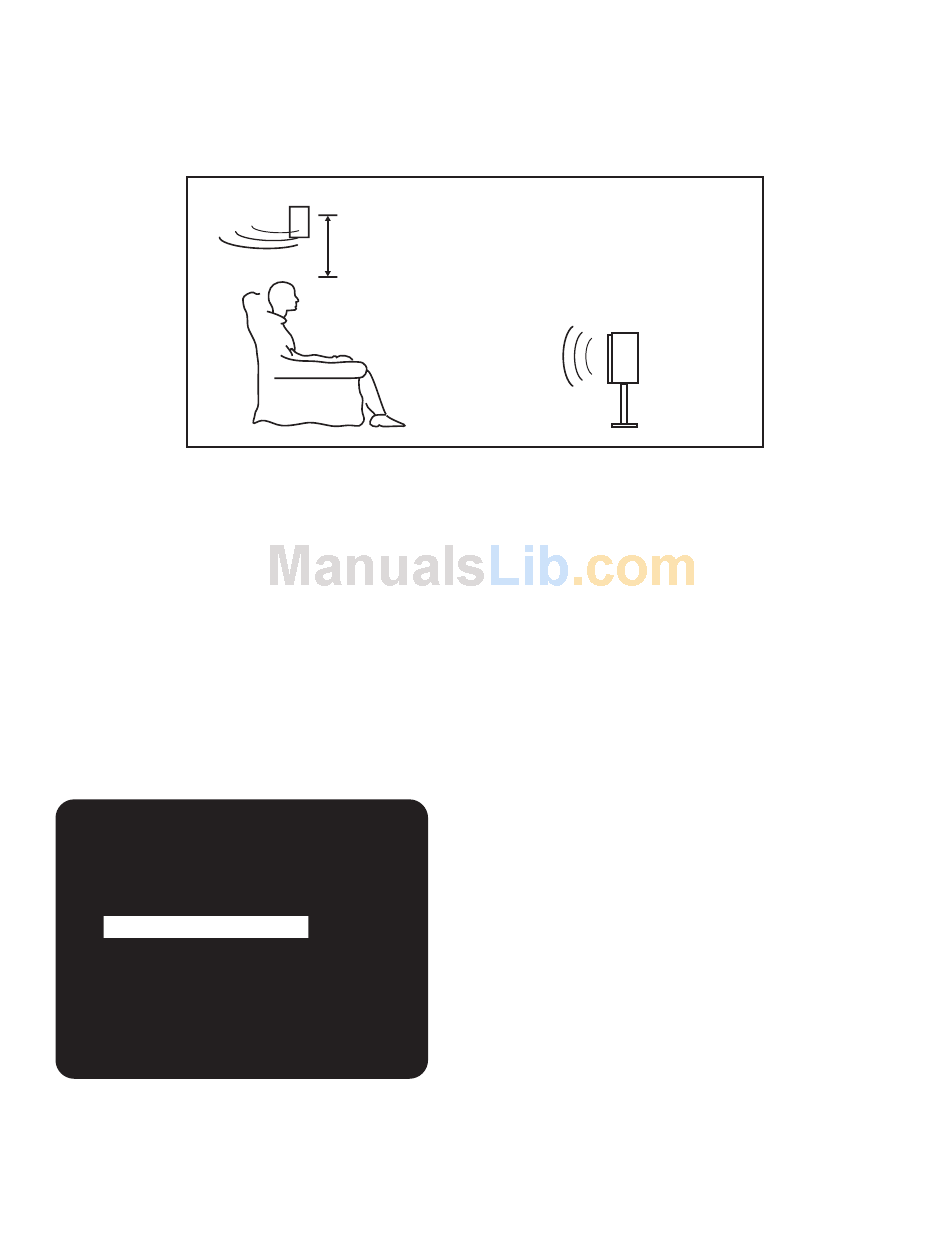

Note: If space permits, install surrounds
2-3 feet above viewers.This helps
to minimize localization effects.
AUDIO = identifies the selected audio input
VIDEO = identifies the selected video input
MODE = indicates the surround mode of the selected input
(DOLBY DIGITAL, DTS, PRO LOGIC II, HALL, STEREO, and
5 CH STEREO).
DYNAMIC RANGE = indicates the dynamic range currently
selected (100%, 75%, 50% and 25%) in Dolby Digital mode
only, or N/A for the other modes.
Dimension = This parameter is used when listening in
Prologic II Music mode, it changes the level balance from
front speakers to back speakers, much the same way the
fader adjust works in some car audio systems.
1 INPUT SETTINGS
Center Width = This adjustment is used when listening to
2 CHANNEL BALANCE
Prologic II Music Mode. It changes the amount of sound
3 CHANNEL DELAYS
coming out of the center speaker. Adjust this parameter
4 SPEAKER SETTINGS
for best over all imaging between the front left/Right and
5 EXIT
center speaker.
Highlight SAVE & EXIT and press Select to save the altered
settings and return to the SETUP menu. Otherwise, select
DO NOT SAVE & EXIT to leave without saving any channel.
