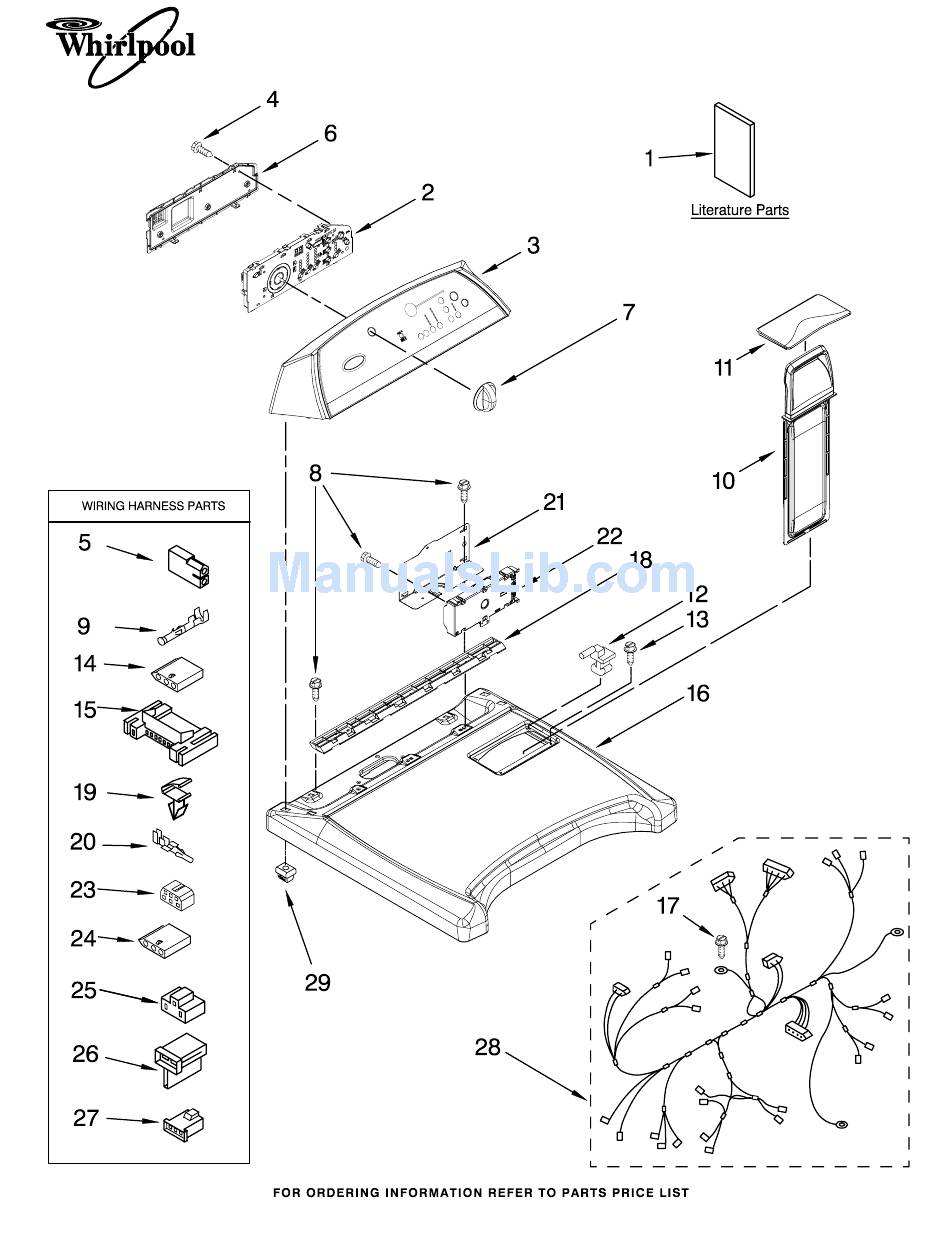

- Page 1 TOP AND CONSOLE PARTS 29"GAS DRYER For Model: WGD6200SW0 (White) 4−07 Litho in U.S.A. (LT) Part No. 8181281 Rev.A.
- Page 2 677818 Dryer 8563976 Assembly, User Interface 3 W10110326 Panel Console 4 W10003770 Screw, 6−19 x 3/64 717252 Plug, 2 Way Terminal TOP AND CONSOLE PARTS For Model: WGD6200SW0 (White) Illus. Part DESCRIPTION 8564265 Cover, Rear UI−Assembly 8574957 Knob Assembly 337686 Screw, 8−18 x 1/2...
-
Page 3: Cabinet Parts
CABINET PARTS For Model: WGD6200SW0 (White) 8181281... - Page 4 Assembly 3389420 Retainer−Idler 1/4−20 x 1/16 12 W10050060 Filler Door 8578538 Belt Restrainer 8578560 Hole−Plug 8565018 Assembly, Hinge & Pin CABINET PARTS For Model: WGD6200SW0 (White) Illus. Part DESCRIPTION 3392100 Foot, Dryer 279810 Foot−Optional (Extended Length) (Package of 2) (Not Included.) 342055 Screw, 8−18 3/64...
- Page 5 BULKHEAD PARTS For Model: WGD6200SW0 (White) 8181281...
- Page 6 Flame Switch 8577274 Thermister, Internal−Bias 694089 Wheel, Blower 8577230 Housing, Blower 8546149 Clip−Heater Box 343641 Screw, 10−16 x 1/2 BULKHEAD PARTS For Model: WGD6200SW0 (White) Illus. Part DESCRIPTION 8544803 Box, Heater 3403140 Thermostat, 205 F (96 C) 8544810 Collar, Lint Chute...
-
