Summary of Contents for Whirlpool LE5320XT

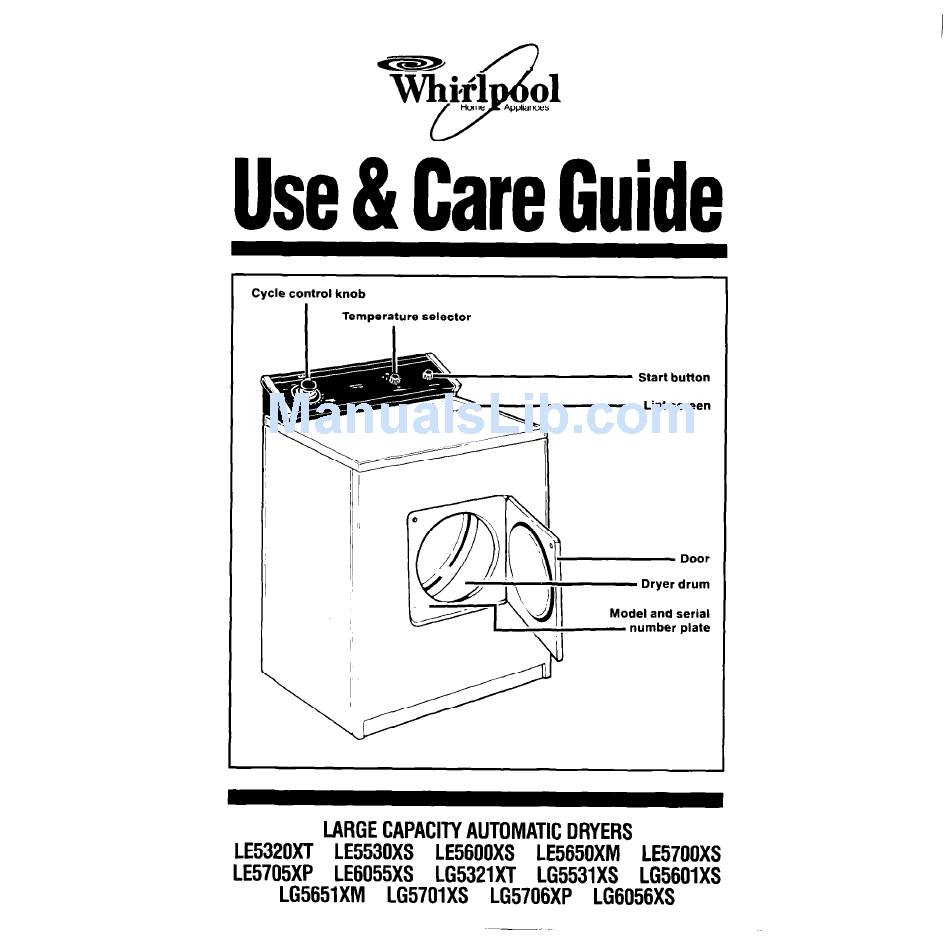

- Page 1 Use & Care Guide Cycle control knob Temperature selector LARGECAPACITYAUTOMATICDRYERS LE5320XT LE5530XS LE5600XS LE5650XM LE5700XS LE5705XP LE6055XS LG5321XT LG5531XS LG56OlXS LG5651XM LG57OlXS LG5706XP LG6056XS Start button Lint screen Door Dryer drum Model and serial number plate...
-
Page 2: Table Of Contents
You should wipe out the dryer drum with a damp cloth before using to re- move dust from storing or shipping. Thank you for buying a Whirlpool appliance. Please complete and mail the Owner Registration Card provided with this product. Then complete the form below. -
Page 3: Important Safety Instructions
Important Safety Instructions Read these laundry instruc- tions for important use and safety information before using your dryer. NEVER dry items cleaned, washed, soaked in or spotted with wax, paint, gasoline or flammable fluids in the dryer. The fumes can create a FIRE HAZARD EXPLOSION. -
Page 4: Operating Instructions
Operating Instructions Starting your dryer Be sure to refer to the chart below and the Dryer Guide for proper sorting, loading and control setting information before starting TYPE OF LOAD Cottons and linens EXTRA HEAVY-Bedspreads, mattress pads, quilts HEAVYWEIGHT-Towels, jeans, corduroys, work clothes MEDIUMWEIGHT - Sheets, pillowcases,... - Page 5 1. Select a cycle by turning the Cycle Control Knob either way to point to the cycle and setting you want. See pages 6-8 for further cycle information. 2. Set the Temperature Selector a desired temperature setting. 3. Push the Start Button to start the dryer.
-
Page 6: Dryer Cycles And Settings
Operating Instructions Continued More drying time Less drying time Dryer cycles and settings The PERMANENT PRESS cycle helps provide the special care that permanent press and synthetic fabrics need. This cycle dries with heat followed by a 10 minute cool-down period. See the chart on page for suggested time and temperature... -
Page 7: Using Fluff Air
(Models LE5650XM, LG5651XM, LE5705XP and LG5706XP) (All other models) Drying plastic or rubber items with heat may damage the items or be a FIRE HAZARD. Using FLUFF AIR The dryer does not heat when the Temperature Selector is set on FLUFF AIR. -
Page 8: Using Damp Dry A
Operating Instructions Continued (Models LE5750XM, LG5751XM, LE5795XP and LG5796XP) (All other models) ‘A ’ ,\? Using DAMP DRY This setting should be used for damp items that do not require an entire drying cycle. 1. Set the Cycle Control Knob on DAMP DRY in the PERMANENT PRESS cycle. -
Page 9: Caring For Your Dryer
Caring For Your Dryer Cleaning the lint screen The lint screen is located under a lid on top of the dryer. Clean it before load. A screen blocked by lint can increase drying time. Do not run the dryer with the lint screen loose, damaged, blocked cause overheating,... -
Page 10: Lint Removal
Caring For Your Dryer Continued Thermostats Heat element terminals Electric Dryers Igniter Funnel Gas Dryers Powdered laundry detergent Make a paste with detergent and very warm water. Apply paste to a soft cloth and scrub area until all excess dye is removed. -
Page 11: If You Need Service Or Assistance
5. If you need FSP’ replacement parts’... FSP is a registered trademark of Whirlpool Corporation for quality parts. Look for this symbol of quality when- ever you need a replacement part for your Whirlpool appliance. FSP replace- ment parts will fit right and work right,... -
Page 12: Whirlpool Warranty
C. Pick up and delivery. This product is designed to be repaired in the home. D. Damage to dryer caused by accident, misuse, fire, flood, acts of God or use of products not approved by Whirlpool. WHIRLPOOL CORPORATION SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES.
