Summary of Contents for Wharfedale Pro WH-TV/DVD21NO

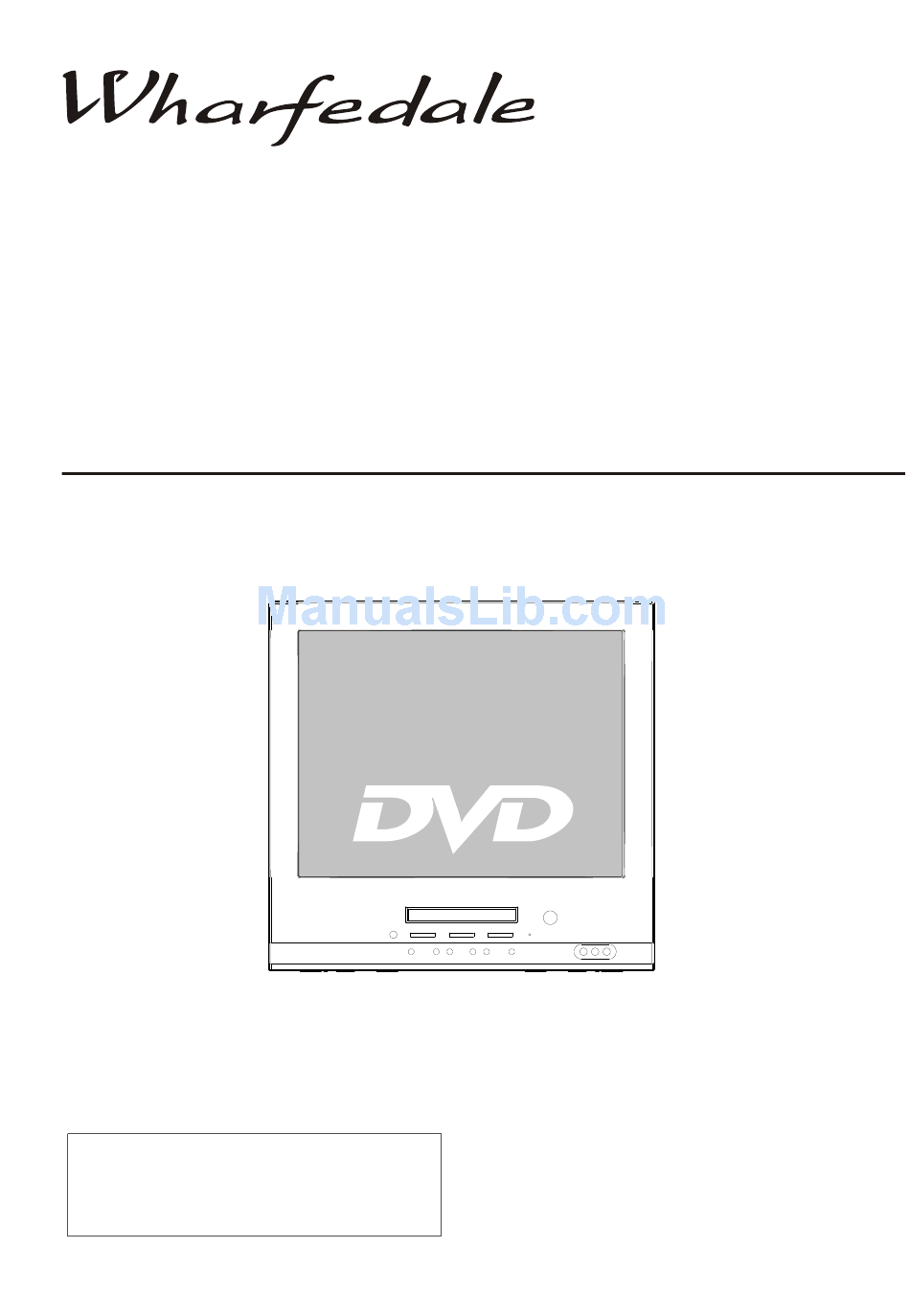

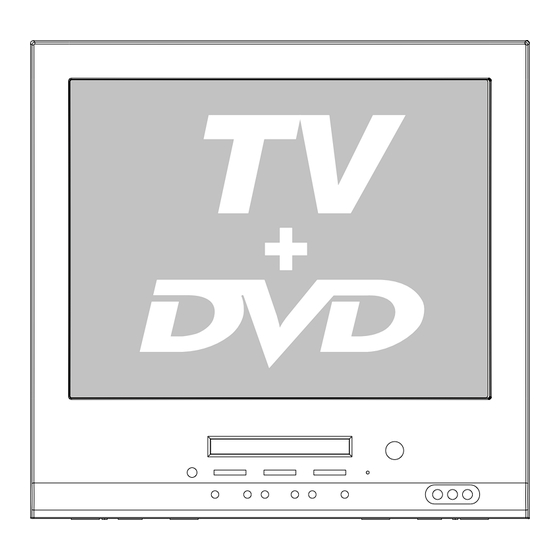

- Page 1 WH-TV/DVD21NO COMBINED 21" TV AND DVD PLAYER OWNER'S MANUAL Please read this manual carefully before using this TV set and keep it for future reference.
-
Page 2: Table Of Contents
CONTENTS Before Operation Warning and cautions...1 Installation...2 Aerial connection...2 Preparation of the remote control...2 Function buttons and external sockets...3 Front panel of the TV set...3 Rear panel of the TV set...3 Using the remote control...4 Basic operation Switching the TV set on/off...5 Watching TV ...6 Watching TV program...6 Program swap and auto scan functions...7... -
Page 3: Warning And Cautions
Warning and cautions 1. When you clean the TV set, please pull out the power plug from AC outlet. Don't clean the cabinet and the screen with petrol, paraffin or other powerful solvents. Permanent damage will result ! 2. In order to prolong the life of the product, please use in a well Leave a 10cm gap ventilated location. -
Page 4: Installation
Installation Aerial Connection If the picture is not clear or snowy, we recommend that you use an outdoor aerial.In different places, the suitable antenna type and position are different. twin-lead cable Antenna adapter (Not supplied) 75 coaxial cable Plug (Not supplied) Note: * It is recommended that a 75 ohm coaxial antenna is used to avoid interference. -
Page 5: Function Buttons And External Sockets

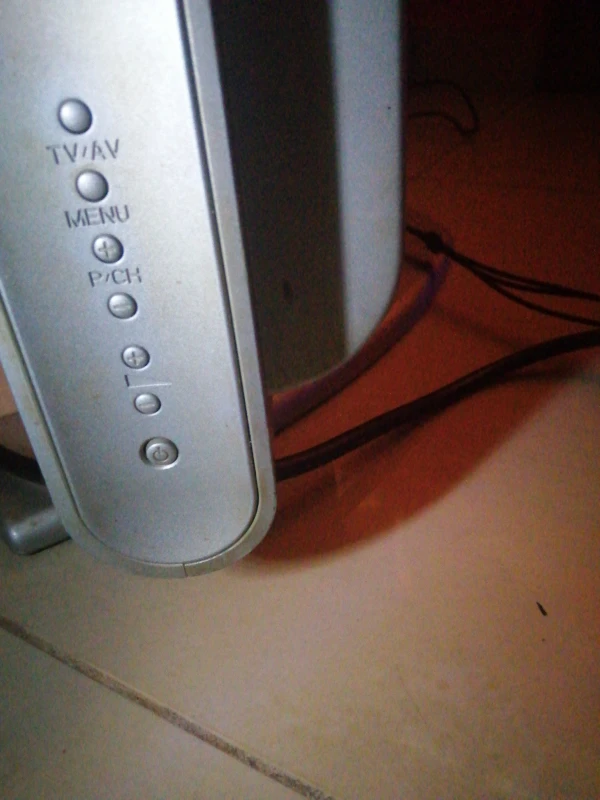

Function Buttons and External Sockets Front panel the TV set PROGRAME Rear panel of the TV set COAXIAL COAXIAL Antenna input socket Video output terminal Audio right channel output terminal Video input terminal Audio left channel output terminal Audio right channel input terminal VIDEO AUDIO Audio left channel input terminal... -
Page 6: Using The Remote Control
Using the Remote Control POWER CALENDAR TIME OPEN/CLOSE SCAN SWAP CALL MUTE TV/AV -/-- -/-- TV/DVD MENU EXIT P.STD STOP SETUP PAUSE/STEP FWD . PREV NEXT D.MENU REPEAT SLOW PLAY/ENTER TITLE/PBC SEARCH ANGLE AUDIO PROGRAM ZOOM D.CALL H.LOCK SUBTITLE Buttons on the remote control Stand By DVD Open/close Calendar... -
Page 7: Switching The Tv Set On/Off
Switching on/ off the TV set This section explains the use of the power button and remote handset to turn your unit on and off. Switching the TV set on/ off POWER Switching the TV set on/ off 1 Press the AC power switch on the front of the TV. -
Page 8: Watching Tv
Watching TV You can watch a TV program on a channel which has been tuned to a broadcast. Watching TV programs MENU MENU How to select TV program Select the desired program 1 Using number buttons Directly enter the channel number with the numeric keypad on the remote control. -
Page 9: Program Swap And Auto Scan Functions
Watching TV continued Press the SWAP button to select the channel you were watching previously. Auto scan function scans through all programs in memory including those with "skip" set to "off" (see "Program skip" on page 1 Program swap and auto scan functions SWAP SCAN Program swap... -
Page 10: Searching Channel
Searching channel This TV set has three methods to set the channels, which are respectively full automatic, semi automatic and manual fine tune. In this section, how to use the remote control to set the channel is explained. You can also use the buttons on the TV set to set channel. Full automatic mode 1 Press the MENU button. -
Page 11: Semi-Automatic Search
Searching channel Continued Semi-automatic search MENU MENU To turn off the on-screen menu In general, after you press the MENU button, the menu EXIT display (PIC, SOU, within 30 seconds. If you want to eliminate these contents immediately, please press the EXIT button. Semi-automatic search 1 Press the P+/- buttons or the PROGRAMME NUMBER (0-9) to... -
Page 12: Manual Fine Tune
Searching channel Continued Manual fine tune 1 Press the P+/- buttons or PROGRAM NUMBER 0-9 button to choose the desired MENU channel (e.g. channel 1). MENU 4 Use the V-/+ buttons to manually fine tune the station until the best picture and sound are obtained. -
Page 13: Program Skip
Searching channel Continued Program skip MENU MENU MENU Program skip Channels can be set so that they are skipped during program selection. 1 Press the P+/- buttons or PROGRAM NUMBER 0-9 button to choose the desired channel (e.g. channel 1). Press the MENU button. -
Page 14: Convenient Picture And Sound Control Functions
Convenient picture and sound control functions Multiple picture modes How to select picture modes You can quickly select the desired picture mode from four preset modes and one customized mode. Press the P.STD button to select the desired P.STD picture quality. Five kinds of picture modes (i.e., "SOFT"... -
Page 15: Black Stretch And Noise Reduce
Convenient picture and sound control functions Continued Black Stretch Automatically increases the contrast range Noise Reduce Picture Noise & Grain Reduction Circuit. (Use only on poor reception) Black stretch and noise reduce How to select BLACK STRETCH Press the MENU button. The MAIN MENU will appear with the PIC (picture) icon flashing.Press the MENU button a further 2... -
Page 16: Mute And Fade
Convenient picture and sound control functions Continued Mute and Fade Sound mute 1 Press the MUTE button on the MUTE remote control to turn off the sound. MUTE will appear on the top left of the display. 2 Press MUTE again to turn the sound back on. -
Page 17: Time Functions
Time functions Clock setting and timer on/off functions Clock setting The clock will only work if the TV set if left turned on or in standby. When the set is disconnected from the TIME power supply or is turned off by the main power on the front panel, the clock loses power and will need to be reset when the power is reconnected. -
Page 18: Sleep Timer And Program Preset
Time functions Continued Sleep timer and program preset Sleep timer The sleep timer switches the set to stand-by after the sleep time has elapsed. Sleep time can be set in 10 minute intervals up to 180 minutes, as shown in the TIME illustration. -
Page 19: Setup Function
Set up function Screen saver and Calendar How to start screen saver function When the background function is ON a bouncing 'NO SIGNAL' will be displayed on a blue back ground. with the PIC (picture) icon flashing. Press the MENU button a further 2 times until the FUN (function) icon is flashing.Press P- to enter the FUNCTION menu. -
Page 20: Avl
Set up function Continued AVL function Automatic Volume Level control reduces the effect of large volume changes. For instance, when advertisements come on. The MAIN MENU will appear with the PIC (picture) icon flashing. MENU Press the MENU button a further 2 times until the FUN (function) icon is flashing.Press P- to enter the FUNCTION menu. -
Page 21: Organise Function
Organise functions ORGANISE MENU MENU MENU ORGANISE This feature enables TV programmes that may be on a wrong program number to be moved to another number. This feature is very useful when Automatic Search Tuning has been used because programmes are stored in the order they are found, which is usually not the desired order. -
Page 22: Seting The Lock
Setting the Lock This TV set provides the option of locking various parts of the TV to guard against unauthorised viewing. Changing your password H.LOCK 2 Press the 0 button four times, and enter the menu of LOCK setting. Press P+/- button MENU and move the indicator to CHANGE PW. - Page 23 Setting the Lock(continued) Setting the Lock H.LOCK MENU 1.When the TUNING LOCK is set ON, if you want to enter the TUNING menu, you will have to type the password. 2.The PRESET PROG allows channel when you turn it on. 3.When AV LOCK is set ON screen will Setting the Lock...
-
Page 24: Basic Playback
Basic Playback Basic Playback Preparations Press the DVD/TV button on the remote control or the TV to turn on the DVD player. Basic playback 1. Press OPEN/CLOSE to open the disc tray, place a disc on the disc tray. There are two different disc sizes. Place the disc in the correct guide on the disc tray. -
Page 25: Advanced Playback
Advanced Playback Advanced Playback IMPORTANT NOTE: ALL DESCRIBED FUNCTIONS ARE FOR DVD DISCS. There will be some differences for other kinds of disc. SUBTITLE Press " SUBTITLE ", the screen will display "SUBTI- TLE 01/XX XXXXX", "01" indicates the ordinal number of this language;... -
Page 26: Special Function
Special Function Playback JPEG DISC PLAYBACK Users can record pictures from digital camera or scanner onto a CD-R or CD-RW disc using a personal computer, CD recording drive and suitable software. Be sure to use good quality recordable discs and trustworthy software with good instructions. Take care with recording settings: the disc must be recorded as data disc ISO9660 format, short file names (8 characters) are best, no multi-session and must be "finalised". -
Page 27: Dvd System Setup
DVD System Setup DVD System Setup General Setup Process 1.Press the SETUP button, the SETUP General Setup Page,Preference Page and Password Setup Page will be displayed in turn. 2.Press CH+/- b item,then press submenu. 3.Press CH+/- bu to setup,then PLAY/ENTER press PLAY/ENTER to confirm. - Page 28 DVD System Setup(Continued) DVD System Setup General Setup Page ANGLE MARK: Users can select a particular camera angle when playing a DVD which offers multiple angles. This item allows you to set Angle Mark ON or OFF. On Screen Display (OSD) Language: Users can select on-screen display language.
- Page 29 DVD System Setup(Continued) DVD System Setup SETUP PLAY/ENTER PASSWORD CHANGE: You can change your password by entering 4 digits. Your must confirm the 4 digits before the new password can be accepted. NOTE:If you forget your password or a password is accidentally set enter 1369 as the password.
- Page 30 DVD System Setup(Continued) DVD System Setup DEFAULT: SETUP (except password and parental lock status) for this DVD player back to the manufacturers original settings. Press ENTER to perform the reset. PLAY/ENTER Resets all settings Note: Some functions may not be available depending on the type of disc. ..Preference Page..
-
Page 31: Playable Discs
Playable Discs The following discs can be played: You cannot play discs other than those listed above. You cannot play non-standard discs, even if they may be labelled as above. The performance of CD-R or CD-RW discs depends on the way the disc is prepared - see under "Special function playback - JPEG disc playback". -
Page 32: Disc Protection And Dvd Characteristics
Disc Protection and DVD Characteristics Compare DVD disc with other discs: Encode Digital/MPEG method Single- Double side -side Capacity single- single -layer layer 4.7G 8.5G Playing Time minutes minutes 12cm/8cm Disc diameter Horizontal More than 500 line resolution Picture proportion Subtitle Language 8 kinds... -
Page 33: Connection To The External Audio And Video Equipment
Connecting the TV set to the other video and audio equipment Connection of AV input /output terminal The figure below shows how to connect external equipment using AV signals. an additional TV DVD, VCD or other units Video output DVD, VCD or other units There is also an AV input on the side of your television. -
Page 34: Troubleshooting Guide
Troubleshooting guide To assist in location possible faults use help guide below BREAKDOWN PHENOMENON PICTURE SOUND Picture with snow Double or Triple Image Disturb Normal No Picture No sound No colour Normal volume Scramble Normal or Weak Volume Colour Spot Normal volume Note: 1.If the fault can not be repaired using the above guide consult with your local authorized service... -
Page 35: Specifications
2X2W 10% THD Power requirements AC 240V~ 50Hz Power consumption 500 Width x480 Depth x485 Height Dimension Remote control Accessories Owner's manual Battery(AA) NOTE Design and specifications are subject to change without notice. The dimension in this manual is a approximation. WH-TV/DVD21NO...
