Summary of Contents for ADJ Mega Bar RGBA

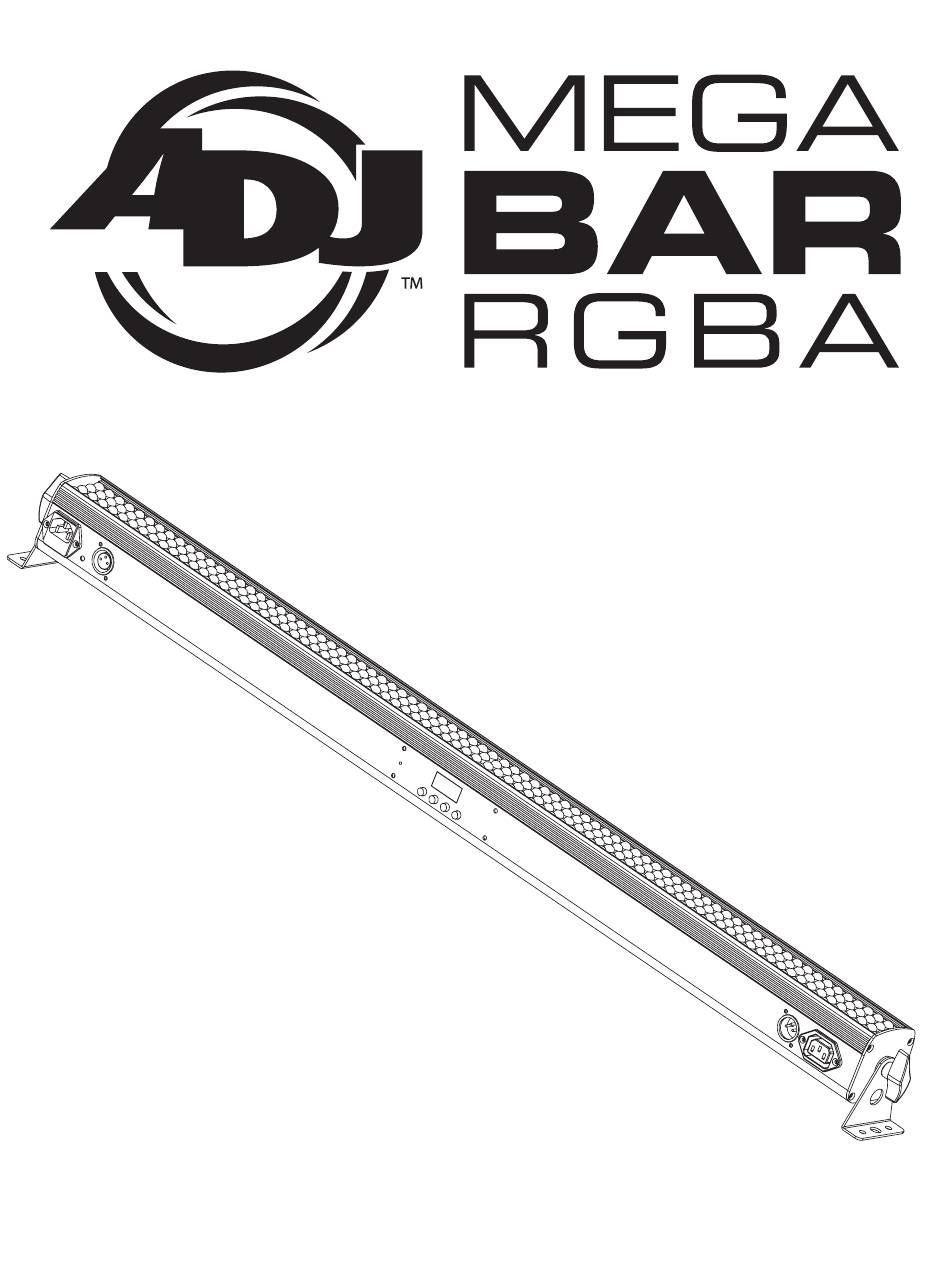

- Page 1 User Instructions Rev.9/20...
- Page 2 You may also visit us on the web at www.adj.com for any comments or sugges-tions. Service Hours are Monday through Friday 8:00 a.m. to 4:30 p.m.
-
Page 3: Warranty Registration
Mega Bar RGBA Warranty Registration The Mega Bar RGBA carries a 3-year limited warranty. Please fill out the enclosed warranty card to validate your purchase. All returned service items whether under warranty or not, must be freight pre-paid and accompany a return authorization (R.A.) number. -
Page 4: Safety Precautions
B. Objects have fallen, or liquid has been spilled into the appliance. C. The appliance has been exposed to rain or water. D. The appliance does not appear to operate normally or exhibits a marked change in performance. ADJ Products, LLC - www.adj.com - Mega Bar RGBA User Manual Page 4... - Page 5 1 to that unit, no matter where it is located in the DMX chain. Data Cable (DMX Cable) Requirements (For DMX Operation): The Mega Bar RGBA can be controlled via DMX-512 protocol. The Mega Bar RGBA has 7 DMX channel modes, please see pages 9-10 for the different modes. The DMX address is set on the back panel of the Mega Bar RGBA.
- Page 6 (DATA + and DATA -). This unit is inserted in the female XLR connector of the last unit in your daisy chain to terminate the line. Using a cable terminator (ADJ part number Z-DMX/T) will decrease the possibilities of erratic behavior.
- Page 7 To allow the display to stay On at all times, press the MODE and UP buttons at the same time. Operating Modes: The Mega Bar RGBA has six operating modes: • Sound-Active mode - The unit will react to sound, chasing through the built in programs.
- Page 8 This is the moving color, use the UP and DOWN buttons to scroll through the 15 colors. Sound Active Mode: In this mode the Mega Bar RGBA will react to sound, and chase through the different colors. ADJ Products, LLC - www.adj.com...
- Page 9 Mega Bar RGBA Operating Instructions Sound Active Mode: In this mode the Mega Bar RGBA will react to sound, and chase through the different colors. 1. Plug the fixture in and press the MODE button until “SU.XX” is displayed. “XX”...
- Page 10 ADJ RFC: This function is used to activate and deactivate the ADJ RFC (Remote Control). When this function is activated you can control the fixture using the ADJ RFC. Please see the next page for ADJ RFC controls and functions.
- Page 11 2. Set the “Primary” unit to your desired operating mode and then connect the “Secondary” unit or units. 3. For the “Secondary” unit(s) press the MODE button until “SLAu” is displayed. The “Secondary” unit(s) will now follow the “Primary” unit. ADJ Products, LLC - www.adj.com - Mega Bar RGBA User Manual Page 11...
- Page 12 The ADJ RFC remote (sold seperately) has many different functions and al- lows you to control your Mega Bar RGBA from long distance. The ADJ RFC remote can control your system up to 150 ft. To use the RFC you must first activate the fixtures receiver, to activate the receiver please see the instruc- tions on pages 10-11.
-
Page 13: Channel Mode
AMBER 0 - 255 0% - 100% STROBING 0 - 7 NOTHING 8 - 255 STROBING SLOW - FAST MASTER DIMMER 0 - 255 0% - 100% ADJ Products, LLC - www.adj.com - Mega Bar RGBA User Manual Page 13... - Page 14 STROBING SLOW - FAST MASTER DIMMER 0 - 255 0% - 100% Channels 1, 2, 3, & 4 will not work, when Channel 5 is being used. ADJ Products, LLC - www.adj.com - Mega Bar RGBA User Manual Page 14...
- Page 15 PROGRAM 17 186 - 195 PROGRAM 18 196 - 205 PROGRAM 19 206 - 215 PROGRAM 20 216 - 225 PROGRAM 21 226 - 235 PROGRAM 22 ADJ Products, LLC - www.adj.com - Mega Bar RGBA User Manual Page 15...
- Page 16 See the Color Macro Chart on page 21 to select your flow color and base color. When Channel 6 is between the values of 246 - 255 , Channel 7 will control the sound sensitivity. ADJ Products, LLC - www.adj.com - Mega Bar RGBA User Manual Page 16...
- Page 17 AMBER 5-8 0 - 255 0% - 100% STROBING 0 - 7 NOTHING 8 - 255 STROBING SLOW - FAST PRIMARY DIMMER 0 - 255 0% - 100% ADJ Products, LLC - www.adj.com - Mega Bar RGBA User Manual Page 17...
- Page 18 AMBER 7 & 8 0 - 255 0% - 100% STROBING 0 - 7 NOTHING 8 - 255 STROBING SLOW - FAST PRIMARY DIMMER 0 - 255 0% - 100% ADJ Products, LLC - www.adj.com - Mega Bar RGBA User Manual Page 18...
- Page 19 0% - 100% BLUE 4 0 - 255 0% - 100% AMBER 4 0 - 255 0% - 100% RED 5 0 - 255 0% - 100% ADJ Products, LLC - www.adj.com - Mega Bar RGBA User Manual Page 19...
- Page 20 AMBER 8 0 - 255 0% - 100% STROBING 0 - 7 NOTHING 8 - 255 STROBING SLOW - FAST 0 - 255 PRIMARY DIMMER 0% - 100% ADJ Products, LLC - www.adj.com - Mega Bar RGBA User Manual Page 20...
-
Page 21: Color Macro Chart
101-105 Color42 221-225 Color19 106-110 Color43 226-230 Color20 111-115 Color44 231-235 Color21 116-120 Color45 236-240 Color22 121-125 Color46 241-245 Color23 126-130 Color47 246-250 Color24 131-135 Color48 251-255 ADJ Products, LLC - www.adj.com - Mega Bar RGBA User Manual Page 21... -
Page 22: Troubleshooting
3.Always be sure to dry all parts completely before plugging the unit back in. Cleaning frequency depends on the environment in which the fixture operates (i.e. smoke, fog residue, dust, dew). ADJ Products, LLC - www.adj.com - Mega Bar RGBA User Manual Page 22... -
Page 23: Warranty
No accessories should be shipped with the product. If any accessories are shipped with the product, ADJ Products, LLC shall have no liability whatsoever for loss of or damage to any such accessories, nor for the safe return thereof. -
Page 24: Specifications
Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice. ADJ Products, LLC - www.adj.com - Mega Bar RGBA User Manual Page 24... - Page 25 Mega Bar RGBA Notes ADJ Products, LLC - www.adj.com - Mega Bar RGBA User Manual Page 25...
- Page 26 6122 S. Eastern Ave. Los Angeles, CA 90040 USA Tel: 323-582-2650 / Fax: 323-725-6100 Web: www.adj.com / E-mail: info@adj.com A.D.J. Supply Europe B.V. Junostraat 2 6468 EW Kerkrade Netherlands service@adjgroup.eu / www.adj.com Tel: +31 45 546 85 00 / Fax: +31 45 546 85 99...
