Summary of Contents for Sentry STWB140

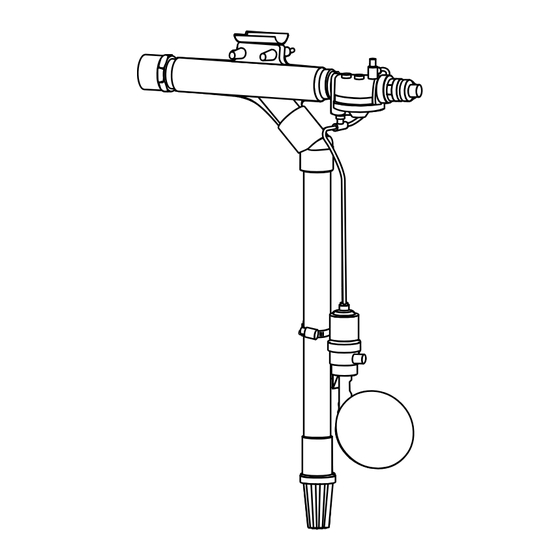

- Page 1 WATER-POWERED BACKUP SUMP PUMP MODEL #STWB140 Español p. 15 ATTACH YOUR RECEIPT HERE Purchase Date Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1-800-742-5044, 7:30 a.m. - 5:00 p.m., EST, Monday - Friday.
- Page 2 Model CURVE 40 PSI 60 PSI 80 PSI not hang up on the pump or the inside of the MODEL STWB140 Feet Meters Liters Liters Liters pit. The float must be installed so the pump 12.7 48.1...
-
Page 3: Installation
PREPARATION Before beginning installation of product, make Parts Required For Assembly (not included): sure all parts are present. Compare parts with 1-1/4” PVC pipe & fittings, 1-1/2” PVC pipe and package contents list. If any part is missing fittings, 1-1/2” check valve, PVC primer and glue, or damaged, do not attempt to assemble the zip ties, 3/4”... - Page 4 For horizontal installation Mount backup pump directly to floor joists using included lag bolts and washers. Note: The backup pump can be mounted with the discharge to the right or left. Ensure the mounting bolts are always positioned at the top. Couplings Check Valves Rotate elbow to be in same orientation as...
- Page 5 Glue one end of the pipe to the rotating elbow, Route tubing to an available opening in the Diaphragm and glue the other end of the pipe to the foot “T” quick connect on the diaphragm valve. Trim Valve Rotating valve.
-
Page 6: Testing Pump Operation
INSTALLATION OF SOURCE WATER PIPING Install reducer fitting (2, 1) into elbow fitting (4). Horizontal Installation (2) (1) Install included push-to-fit connector (1) into included reducer fitting (2). Elbow Reducer Fitting Reducer Push-to-fit Fitting Connector Install included elbow fitting (4) into inlet of Install reducer fitting (2) into inlet of backup backup pump (3). -
Page 7: Troubleshooting Guide
CONTROL VALVE ADJUSTMENT TROUBLESHOOTING GUIDE The backup sump pump control valve is preset EFFICIENCY: 1. Pump will not start – Control valve is under from the factory for ideal performance at most tightened. Refer to control valve adjustment The pumping capacity increases with household municipal water pressures/installation heights. -
Page 8: Warranty
WARRANTY This product is warranted for two years from the date of purchase or thirty (30) months from the date of manufacture, whichever occurs first. Subject to the conditions hereinafter set forth, the manufacturer will repair or replace to the original consumer, any portion of the product which proves defective due to defective materials or workmanship.
